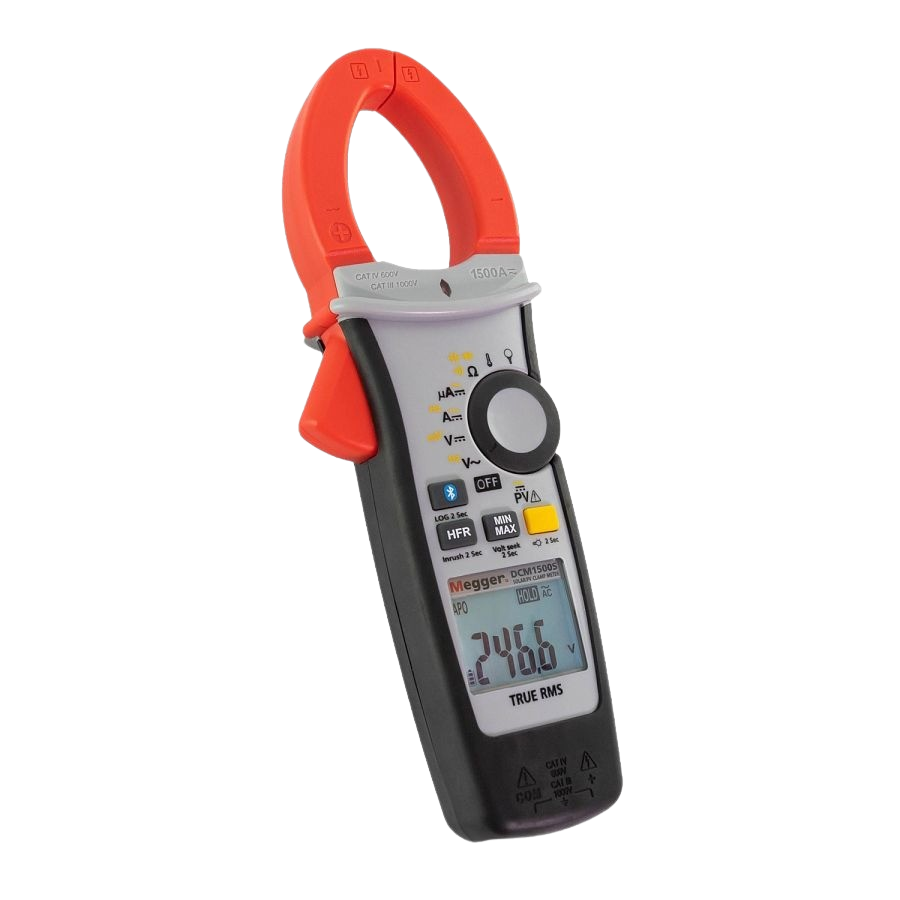

Megger DCM1500S Solar PV Clamp Meter

Description

The Megger DCM1500S is a solar PV clamp meter designed for the installation, maintenance, and testing of both photovoltaic systems and standard AC/DC electrical equipment. It is known for its high voltage and current measurement capabilities, as well as its robust feature set

Key features

• Measurements: The meter offers a wide range of measurement functions, including:
• High voltage: Up to 2000 V DC and 1500 V AC (True RMS), ideal for PV systems.
• High current: Up to 1500 A AC or DC.
• Other measurements: Resistance, diode, capacitance, temperature, and frequency.
• Safety: It features a tactile barrier for hand protection and carries a CAT IV 600V / CAT III 1000V safety rating.
• Connectivity: The meter includes built-in Bluetooth for connection to the free Megger Link App, allowing for remote monitoring, data logging, and live trend graphing on a smart device.
• Display and interface: It has a large, clear, and backlit 6000-count digital display, with an automatic torch in the clamp jaw for use in low-light conditions.
• Intelligent functions:-
• Smart Hold: Gives an audible warning if a "held" reading increases significantly.
• MIN/MAX Hold: Measures and holds the maximum and minimum values over a period of time.
• Inrush Current: Measures the high start-up currents of electrical loads.

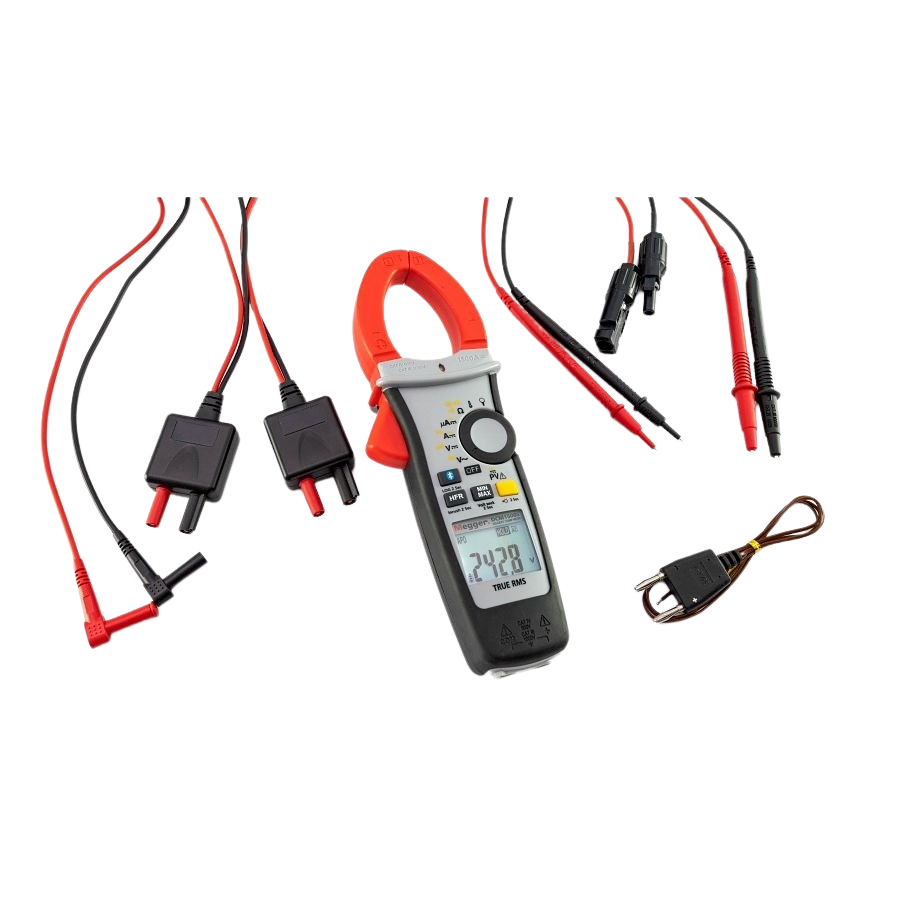

• Accessories: The DCM1500S typically comes with a full set of leads, including specialized PV test leads with MC4 plugs for solar panel connections, a thermocouple probe for temperature readings, and a hard carry case.
