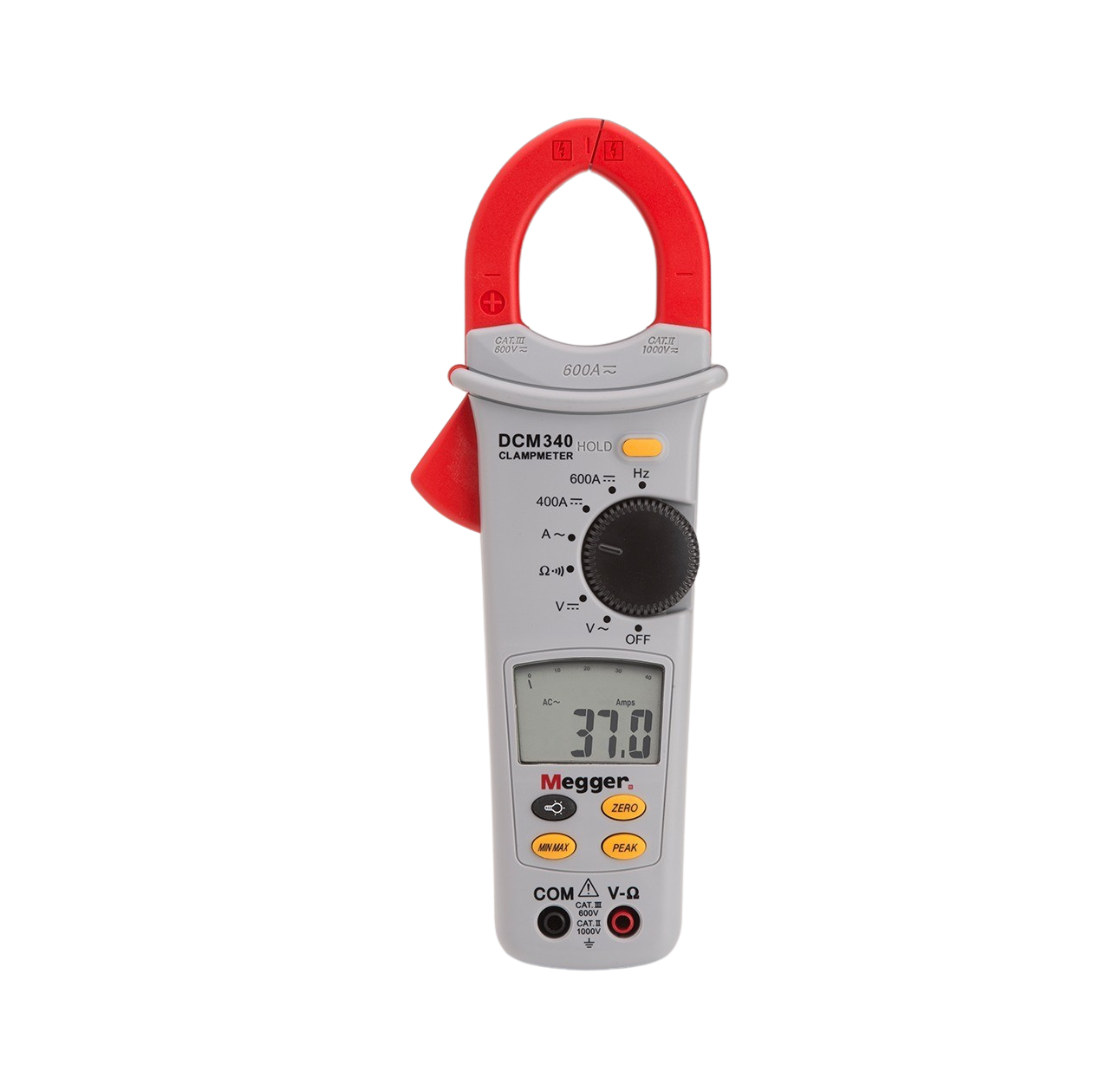

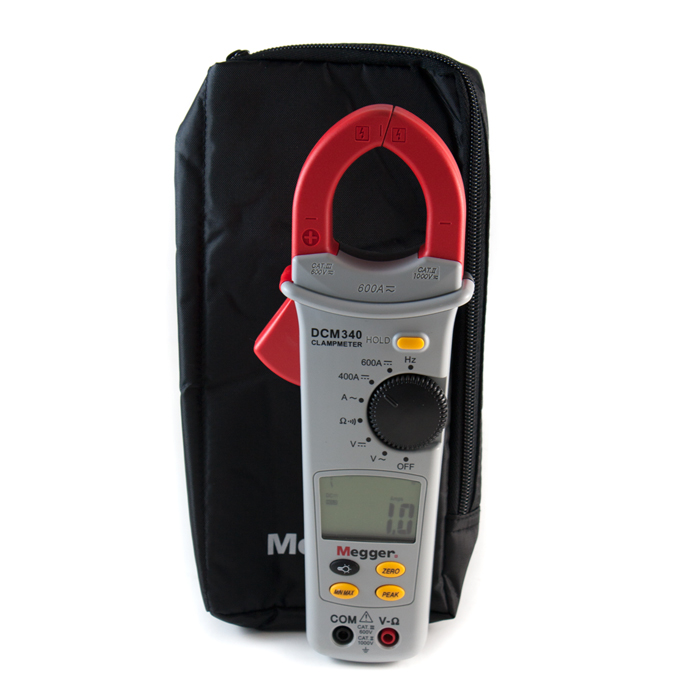

Megger DCM340 Digital Clamp Meter, 600A/600V

Description

The Megger DCM340 is a highly versatile digital clamp meter designed for professionals who install, maintain, and troubleshoot AC/DC electrical systems and equipment. Its capabilities eliminate the need for carrying both a clamp meter and a separate multimeter.

Key specifications

• Current measurement: Measures up to 600A for both AC and DC.
• Voltage measurement: Measures up to 600V for both AC and DC.
• Other measurements: Also handles resistance (up to 400Ω), frequency (up to 400 Hz), and continuity testing.
• Jaw capacity: A 35mm jaw opening allows for measurements on smaller to medium-sized conductors.
• Display: Features a backlit, 4000-count digital LCD with a high-resolution bar graph for trend indication.
• Features and functions:-
• Peak hold: Captures maximum load currents, such as start-up currents for motors.
• Min/max: Records the highest and lowest readings over a measurement period.
• Data hold: Freezes the current display reading for convenience when testing in hard-to-reach areas.
• Relative mode (REL): Allows you to zero out a stable value and then measure any variations relative to that value.
• Auto power off: Extends battery life by automatically shutting the unit down after about 30 minutes of inactivity.
• Safety rating: The DCM340 is safety rated to IEC 61010-1 Cat III 600V.
• Durability: It is drop-tested to 1.2 meters, making it robust enough for tough working environments.
