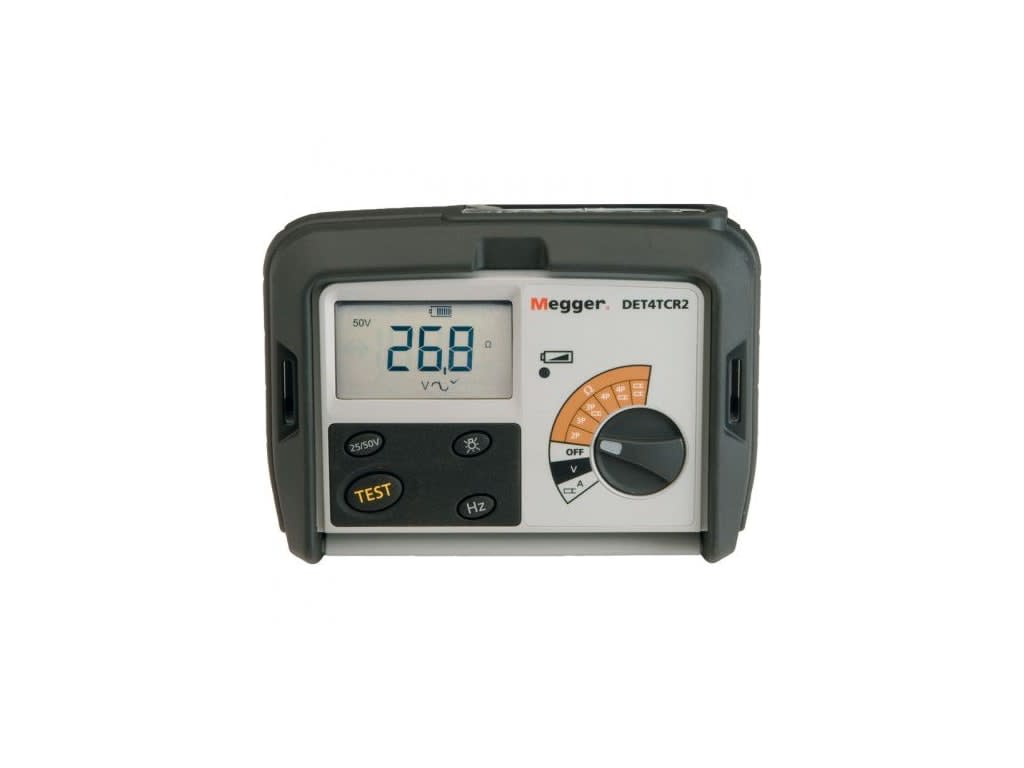

Megger DET4TCR2+CLAMP Ground Tester with Special Kit

Description

The Megger DET4TCR2+CLAMP is a rechargeable 4-terminal ground resistance and soil resistivity tester designed for comprehensive earth testing. The special kit version includes both the ICLAMP and VCLAMP, which enable advanced testing techniques.

Key features

• Multiple testing methods: This versatile device can perform 2, 3, and 4-point testing, as well as the Attached Rod Technique (ART) and stakeless testing.
• Testing with clamps: The included ICLAMP allows for ART testing without the need to disconnect the earth rod, while the VCLAMP enables true stakeless measurements.
• Measurement capabilities: It offers a wide resistance range of 0.01 Ω to 200 kΩ and can measure earth voltage up to 100 V AC and ground current from 0.5 mA to 19.9 A (with the ICLAMP).
• Advanced functionality: The tester is designed to operate accurately even in electrically noisy environments, featuring superior noise rejection up to 40V peak-to-peak and multiple user-selectable test frequencies (94, 105, 111, and 128 Hz).
• User-friendly operation: It features a simple one-button operation, a backlit LCD for use in dim lighting, and clear warning indicators for test failures.
• Durability and safety: The unit is housed in a rugged, weatherproof case with an IP54 rating and is safety rated to CAT IV 100 V.
• Rechargeable: The DET4TCR2 is powered by rechargeable AA NiMH batteries with an internal charger, differentiating it from the dry-cell powered DET4TC2 model.

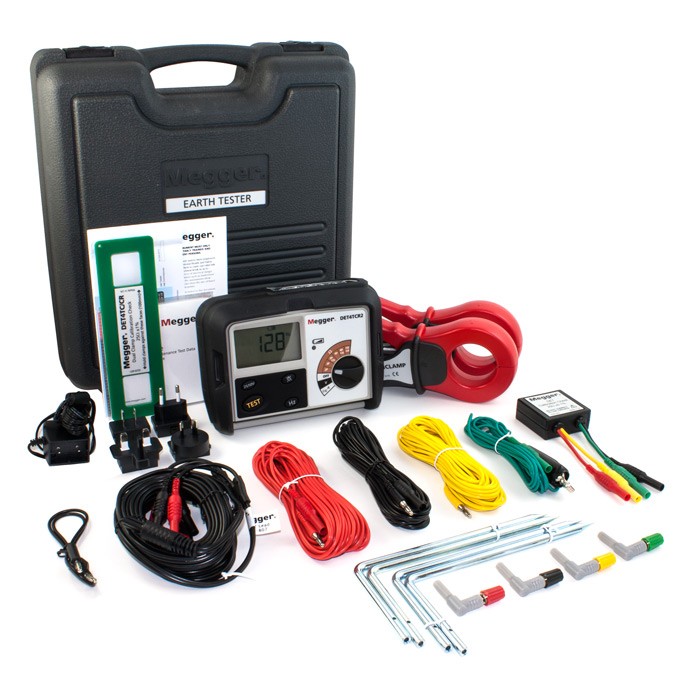

• Special kit includes:-
• Megger DET4TCR2 rechargeable earth tester
• ICLAMP (for ART testing)
• VCLAMP (for stakeless testing)
• Hard carry case
• Four earth test stakes
• Connection leads
• Field calibration check for the instrument and clamps
• External AC/DC charger
