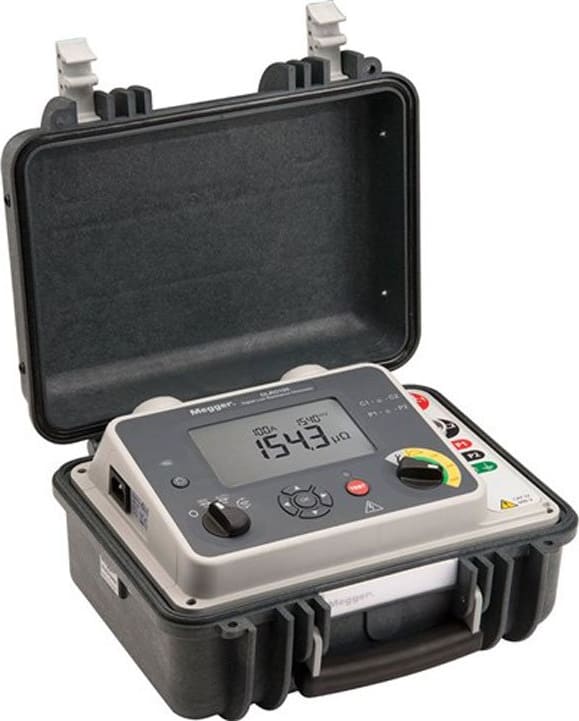

Megger DLRO100EB-LG2-P3 Low Resistance Ohmmeter, AC & Battery Powered

Description

The Megger DLRO100EB-LG2-P3 is a battery and mains-powered digital low-resistance micro-ohmmeter. Part of the DLRO100 series, it is designed for measuring low resistance across multiple applications, especially in locations without access to AC power. The EB model is the basic, battery-operated version, without the advanced data storage and connectivity features of the X and H models.

Key features

• Measurement range: It has a measurement range of 0.1 µΩ to 1.999 Ω with a resolution of 0.1 µΩ.
• Safety rating: It is rated CAT IV 600 VAC / 500 VDC for safe operation.
• Test current: The unit can deliver a constant 100 A current, which can be selected at 10 A, 50 A, or 100 A.
• Operating modes: It offers Manual, Automatic, and Continuous test modes.
• Noise immunity: High noise immunity ensures stable readings, even in electrically noisy environments.
• Portability: The instrument is lightweight and battery-powered, making it easy to carry for fieldwork.
• Battery life: The integral lithium-ion battery can perform up to 200 manual/automatic tests or two 10-minute continuous tests at 100 A on a single charge.
• Construction: The rugged design is enclosed in an IP54-rated case (lid open), providing protection against dust and moisture during testing.
• Display: A large, backlit LCD screen displays results clearly in any lighting conditions.
• Test leads: The instrument does not come with test leads, which must be purchased separately.
