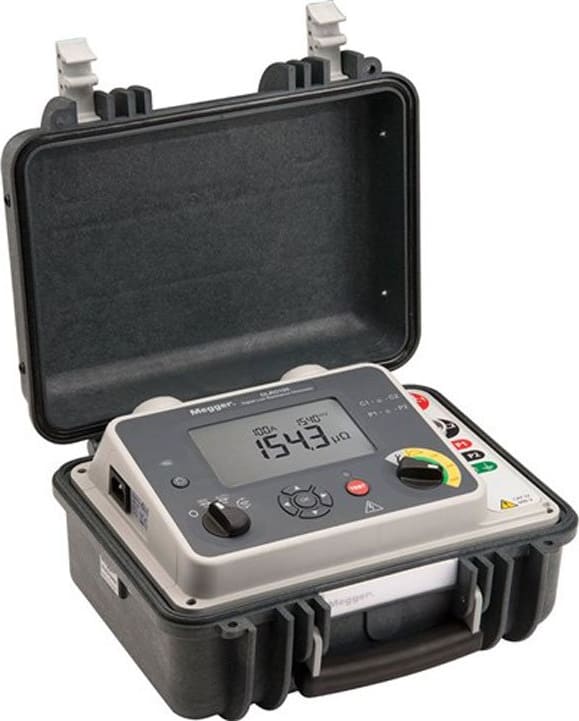

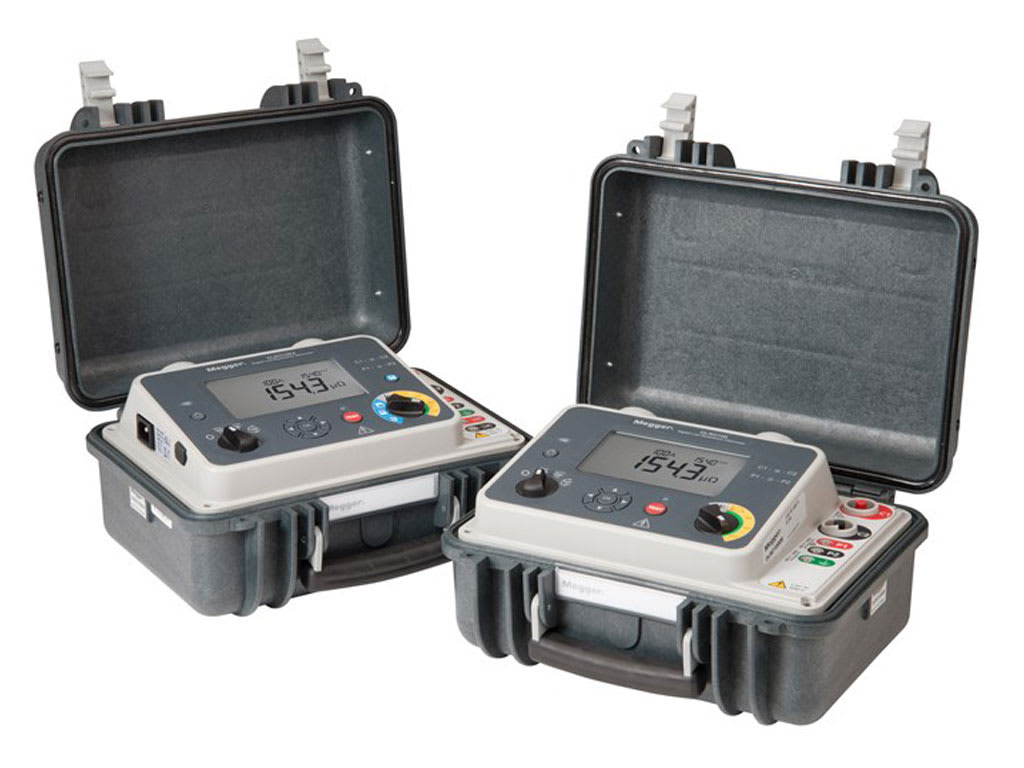

Megger DLRO100HB LG2-P3 Digital Low Resistance Ohmeter, 100A, Mains Powered

Description

The Megger DLRO100HB is a 100-amp digital low-resistance ohmmeter with advanced features like Bluetooth connectivity, internal data storage, remote control capability, and a dual power supply for both mains and battery operation. It is a highly robust and accurate device designed for use in noisy environments, such as substations, and is built to withstand demanding conditions.

Key features

• High test current: Provides a constant 100A test current, which is crucial for applications such as checking busbar and cable joints, and measuring circuit breaker contact resistance.
• Connectivity: Includes Bluetooth and USB connectivity for downloading stored test results to a PC or compatible smart device, as well as for remote control operation.
• Data logging: Features internal memory for storing test records.
• Dual power supply: Can be powered from a line supply or its internal, rechargeable lithium-ion battery, allowing for use in areas without mains power. The battery can provide up to 20 minutes of continuous testing at 100A.
• Safety features: Rated for CAT IV 600 V and includes a DualGround™ option for enhanced safety in substations, allowing tests to be performed with both sides of the equipment grounded.
• Rugged design: The unit has an IP54 rating against dust and moisture with the lid open, and an IP65 rating with the lid closed, making it suitable for field use.
• Multiple test modes: Offers manual, automatic, and continuous test modes for different applications. Manual mode requires a button press, while automatic mode begins when continuity is detected.
