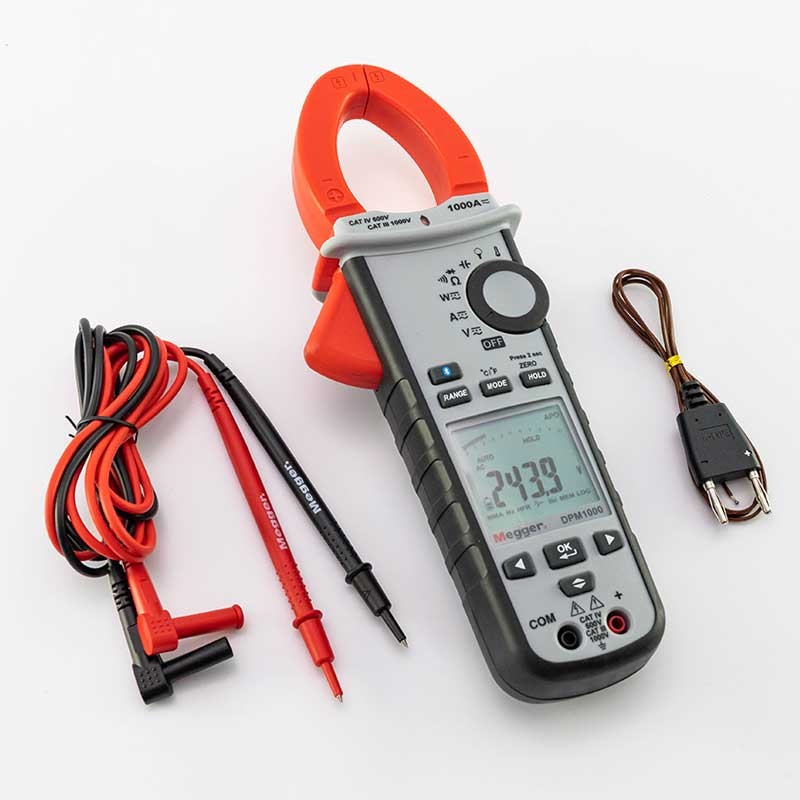

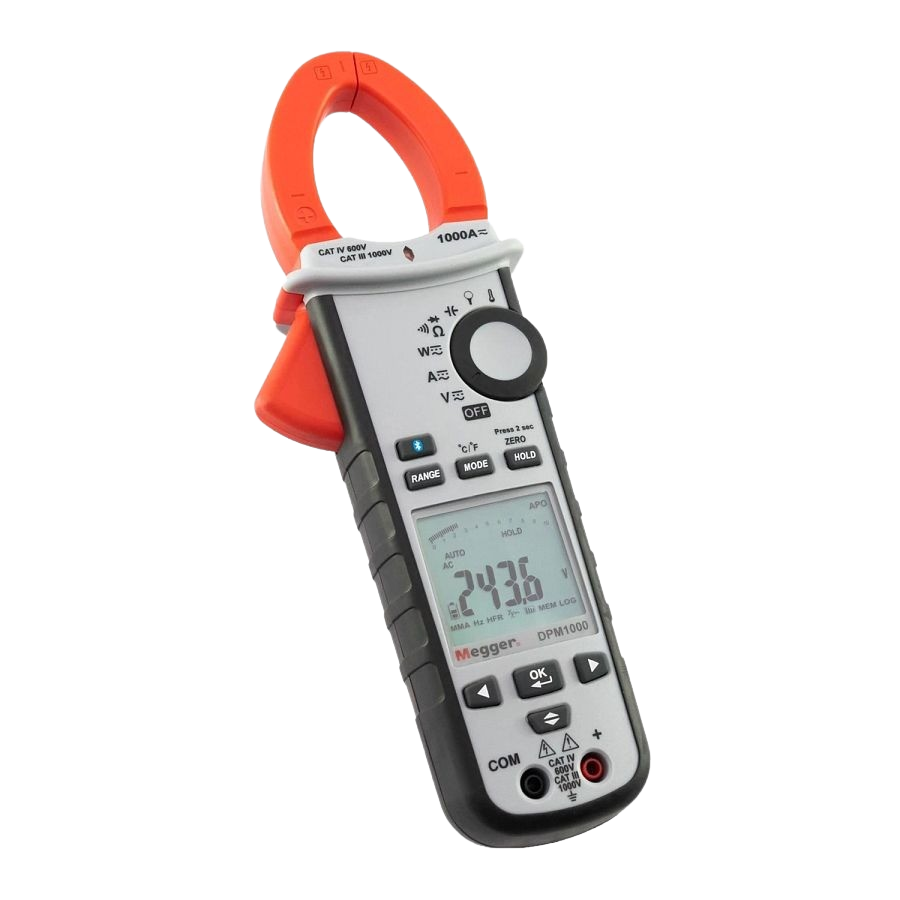

Megger DPM1000 Power Clamp Meter

Description

The Megger DPM1000 is a versatile power clamp meter that combines the functions of a power meter, harmonics meter, and data logger into a single, user-friendly device. It is suitable for measuring mains power quality in various applications, including maintenance and repair of electrical and power electronics equipment.

Key features

• Voltage measurement: Measures AC/DC voltage up to 1000V.
  Current measurement: Measures AC/DC current up to 1000A via the clamp jaws and up to 3000A with an optional flexible current transformer (FCT3450).

• True RMS: Provides True RMS readings for AC and AC+DC measurements.

• Power and harmonics analysis: Measures single and 3-phase active power (up to 1MW), power factor, total harmonic distortion (THD), and individual harmonics up to the 25th.

• Data logging: Can store up to 9,999 readings in its internal memory for later download and analysis.

• Bluetooth connectivity: Features a low-power Bluetooth connection to transfer real-time data to the Megger Link app for iOS and Android.

• Safety features: Includes non-contact voltage detection, a bright LED torch, and is rated for CAT IV 600V and CAT III 1000V.

• Additional functions: Offers a range of other measurements, including resistance (up to 100 kΩ), capacitance (up to 4000µF), frequency, temperature (with included thermocouple), continuity, diode testing, and inrush current.
