Megger IMT100 Industrial Multi-Function Tester
Megger IMT100 Industrial Multi-Function Tester
Megger IMT100 Industrial Multi-Function Tester
Megger IMT100 Industrial Multi-Function Tester
Megger IMT100 Industrial Multi-Function Tester
Megger IMT100 Industrial Multi-Function Tester

Megger IMT100 Industrial Multi-Function Tester

Brand
Megger

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

Available to Order

Description The Megger IMT100 is a multifunctional handheld tester designed for industrial use, with features specifically for photovoltaic (PV) systems, elect
$2,650.00

🛡️ Buy with Confidence

  • Shipping: $30 flat rate across the USA
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: NCIEM America – National Company of Industrial Equipment Marketing America LLC (USA)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: United States only, Policies apply to purchases made on nciem.us
Description

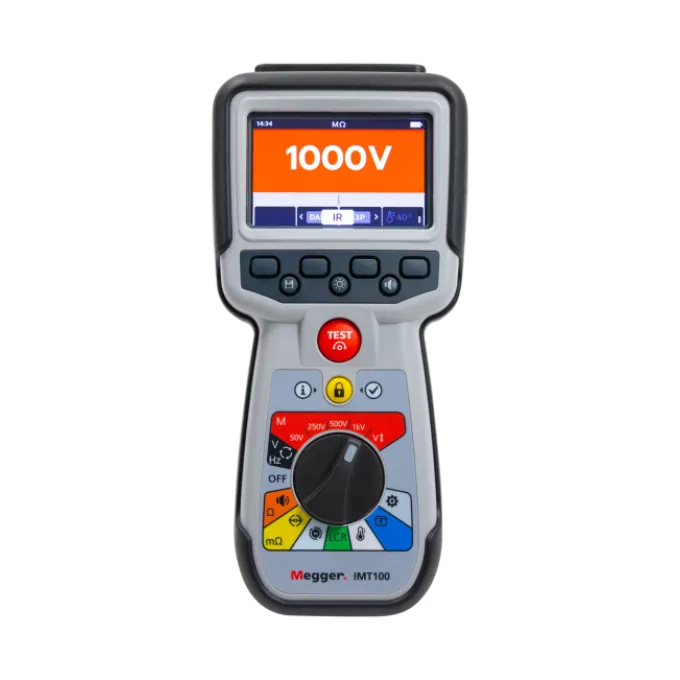

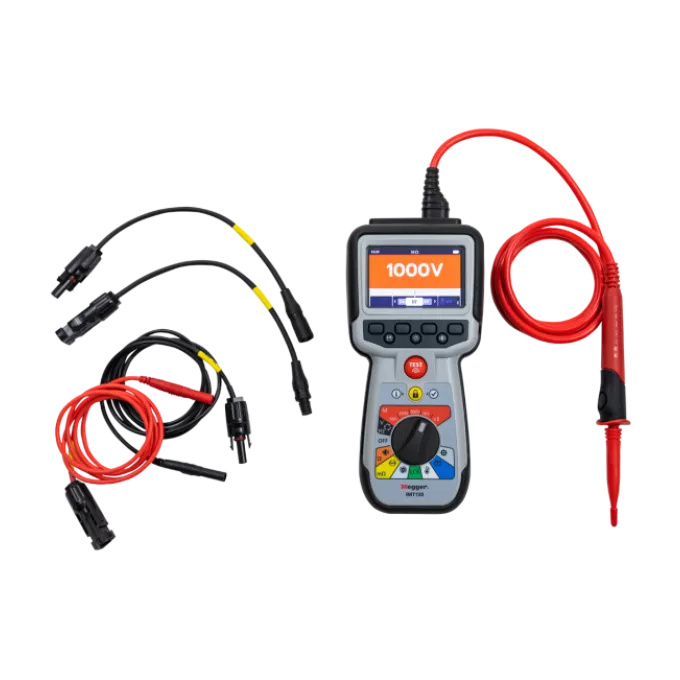

The Megger IMT100 is a multifunctional handheld tester designed for industrial use, with features specifically for photovoltaic (PV) systems, electric vehicles (EV), and general industrial applications. It combines several instruments into one rugged, weatherproof device, including insulation resistance,
Key features
  • Insulation resistance testing: The IMT100 can perform diagnostic insulation resistance tests using two, three, and four-wire methods. It offers test voltages of 50 V, 250 V, 500 V, 1 kV, and also includes a user-selectable variable voltage feature. It supports tests like Polarization Index (PI) and Dielectric Absorption Ratio (DAR).
  • Low resistance testing (DLRO): This feature uses a four-wire Kelvin method to measure low resistance from 1 mΩ up to 10 Ω with a stable 200 mA test current.
  • General multi-tester functions: The device measures AC/DC voltage (up to 1000 V), frequency, capacitance, and inductance. It also includes continuity and diode testing.LCR (Inductance, Capacitance, Resistance) function: The LRC function automatically determines if the load is inductive, capacitive, or resistive.
  • Temperature measurement and compensation: A thermocouple probe is included for temperature measurement, which can also be used for temperature compensation during insulation resistance testing.
  • Data storage: The IMT100 can store up to 256 test results, which can be individually tagged and downloaded to a USB drive.
  • Rugged design: The device features a tough, rubber over-molded case with an IP54 weatherproof rating, protecting it from moisture and dust.
  • Safety features: It has fast-detecting circuitry to prevent damage from live circuits and includes live circuit detection with a test inhibit function.
Download Data Sheet
