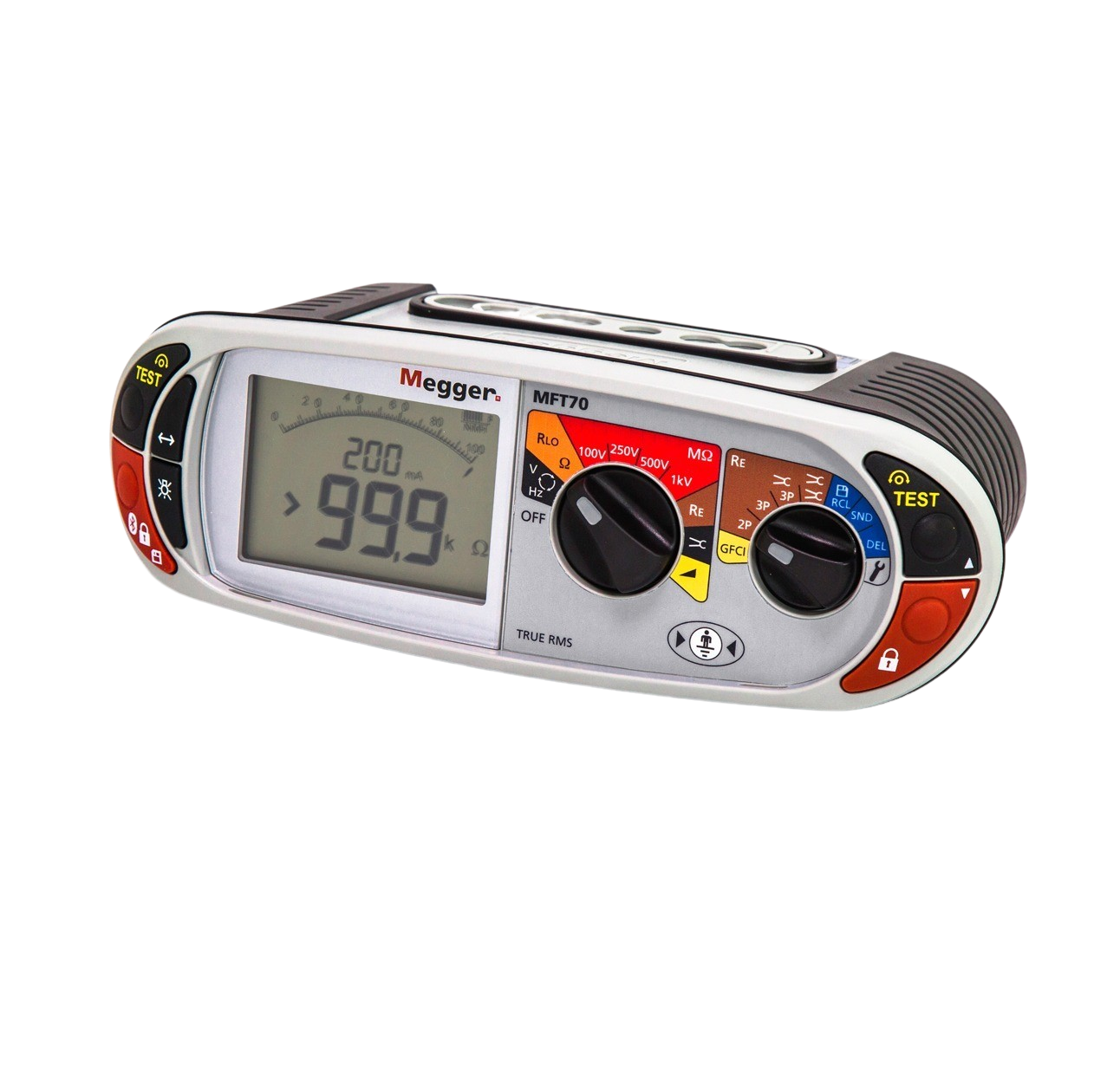

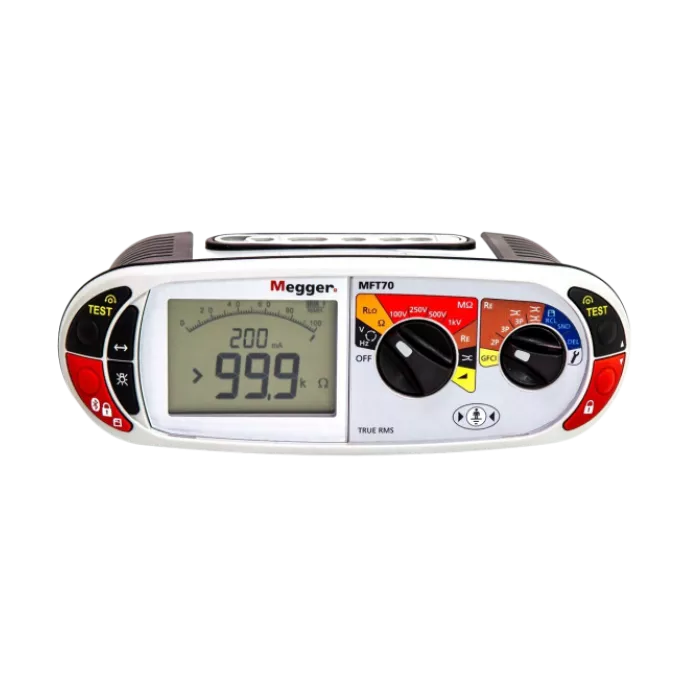

Megger MFT70 Multifunction Tester

Description

The Megger MFT70 is a robust, multifunction electrical installation tester designed for low-voltage systems. It combines several key testing functions into a single, user-friendly device for electrical certification in residential, commercial, and industrial settings.

Key functions

• Insulation testing: The MFT70 can perform insulation tests at 100 V, 250 V, 500 V, and 1000 V to check the integrity of insulation materials.

• Continuity and resistance testing: It measures continuity at 200 mA or 15 mA and offers a resistance range of up to 100 kΩ. It also features a fast continuity buzzer.

• Ground Fault Circuit Interrupter (GFCI) testing: The tester can perform a ramp test to ensure that a GFCI trips correctly under fault conditions.

• True RMS voltage and frequency measurement: The device can accurately measure system voltage and frequency using True RMS technology.

• Ground testing: The MFT70 supports multiple ground testing techniques, including 2-pole, 3-pole, and stakeless methods.
  Phase rotation indication: It can determine the phase rotation sequence in three-phase systems.

• Data storage and communication: The MFT70 is equipped with built-in memory to store up to 1,000 test results. It also has Bluetooth connectivity for transferring data to a PC for reporting.
