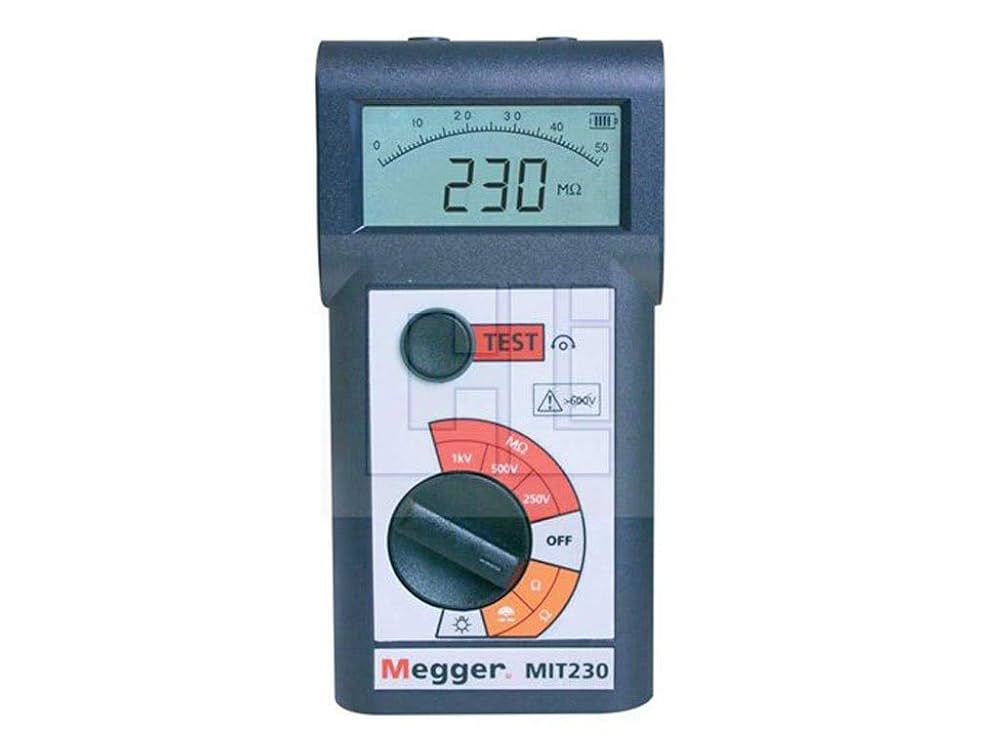

Megger MIT230 Handheld Insulation Tester, 250 to 1000V

Description

The Megger MIT230 is a compact, digital and analog handheld insulation and continuity tester. It is designed for use by electricians in both domestic and industrial settings and is ideal for checking a variety of electrical systems and equipment.

Key features

• Test voltages: It offers three direct current (DC) test voltage options: 250V, 500V, and 1000V.

• Insulation testing: The device can measure insulation resistance up to 1000 MΩ.

• Continuity testing: It provides automatic continuity testing at 200mA, with a resolution of 0.01Ω.

• Display: It features a dual display that combines a digital readout with an analog arc, which helps in evaluating circuit charge and discharge characteristics.
• Safety features: Live circuit warning: A built-in voltmeter automatically switches on when a voltage greater than 25V AC or DC is detected. Test inhibit: Testing is inhibited if a voltage greater than 50V is detected, protecting the user and the instrument. Automatic discharge: After an insulation test, the circuit is automatically discharged. CAT rating: It has a safety rating of CAT III 600V.
• Convenience features: Hands-free continuity The automatic continuity test allows for hands-free operation.
• Test lead null: It can compensate for the resistance of test leads.
• Auto power-off: The device shuts off automatically when idle to conserve battery life.
• Durability: Housed in tough ABS material, it is designed for use in rugged environments.
