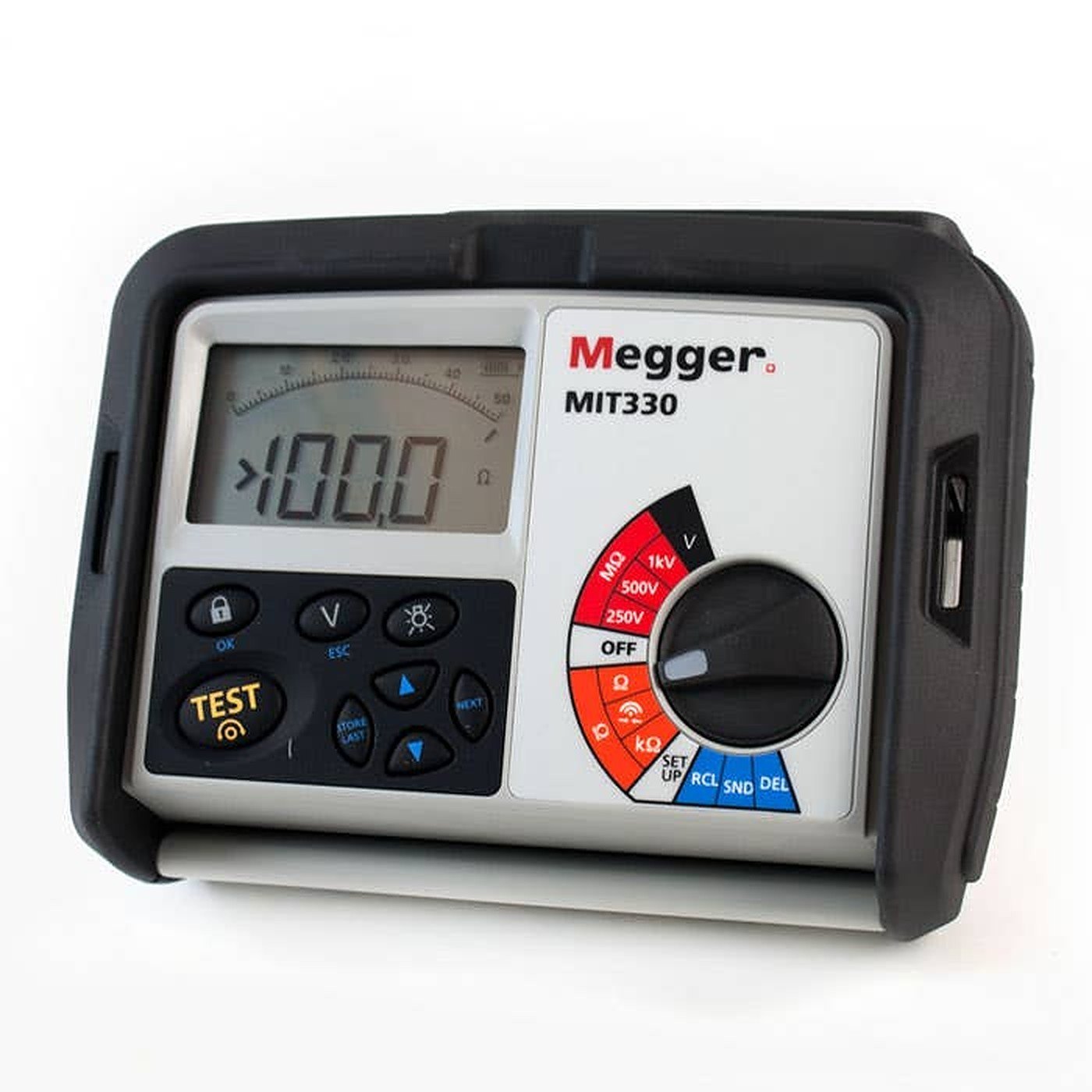

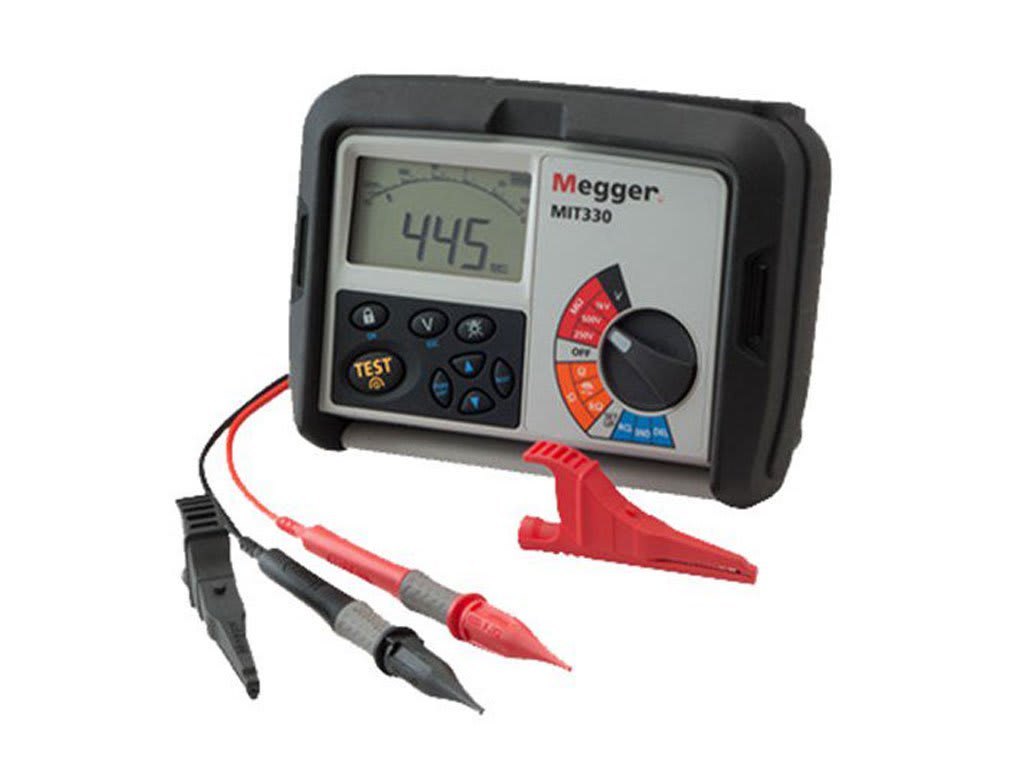

Megger MIT330 Insulation & Continuity Tester, 250V, 500V, 1000V

Description

The Megger MIT330 is a durable, digital/analog insulation and continuity tester designed for electricians and maintenance professionals. It provides selectable insulation test voltages and can save and download test results, making it the most advanced model in the MIT300 series.

Key features

• Test voltages: 250V, 500V, and 1000V DC for insulation testing.
• Insulation resistance range: 10 kΩ to 999 MΩ.
• Continuity testing: Measures continuity up to 100Ω, with an adjustable buzzer for quick testing.
• Resistance measurement: Features a resistance range from 10Ω to 1 MΩ.
• Voltage measurement: Capable of measuring up to 600V AC or DC.
• Data storage: Can save over 1,000 test results to its internal, non-volatile memory.
• PC downloading: A USB interface allows you to download stored data to a computer for analysis and report generation.
• Dual display: Combines a large digital display for clear readings with an analog arc for the "feel" of a traditional needle meter.
• Rugged construction: Built with a tough, rubber-armored, impact-resistant case and a protective display cover, making it suitable for field use.
• Safety features: Includes the "Intelligent Safety System" with a live voltage warning, safety lockout to inhibit testing on circuits over 50V, and an automatic discharge function after an insulation test.
• Additional features: A backlit display and range selection for low-light conditions, auto power-off, and a switched test probe for hands-free testing.
