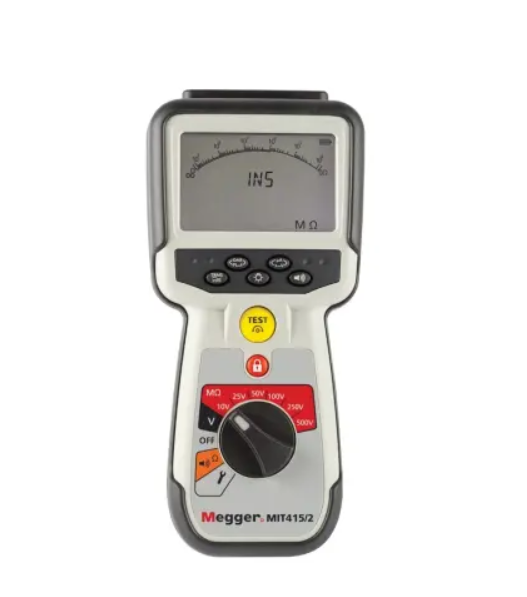

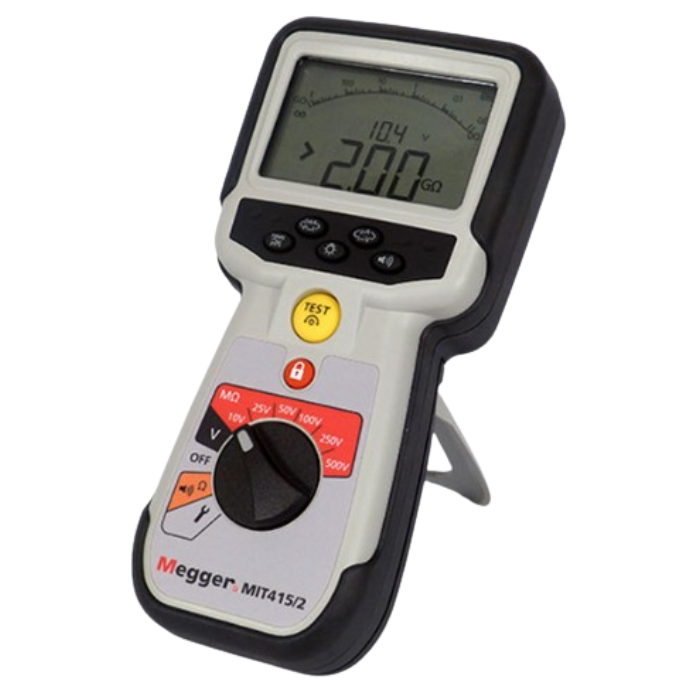

Megger MIT415/2 Insulation/Continuity Tester 10/25/50/100/250/500V+600V

Description

The Megger MIT415/2 is a versatile and reliable handheld insulation and continuity tester. A second-generation model, it offers enhanced features for a wide range of electrical and industrial testing applications.

Key features

• Safety Rating: CAT IV 600V rating ensures safety in high-energy environments.

• Test voltages: It offers six selectable test voltages: 10V, 25V, 50V, 100V, 250V, and 500V. These low-voltage options make it suitable for testing sensitive equipment and low-voltage signal wiring.

• Insulation resistance: The device can measure insulation resistance up to 100 GΩ.

• Continuity testing: Offers a fast, single auto-ranging function for continuity testing from 0.01 Ω to 1.0 MΩ, with selectable 200 mA or 20 mA test currents.

• Advanced diagnostic tests: Includes automated functions for Polarization Index (PI) and Dielectric Absorption Ratio (DAR) tests, which are important for in-depth insulation analysis.

• True RMS voltage measurement: Provides accurate voltage readings up to 600V AC/DC, even on noisy lines.

• Live circuit detection: Enhances user safety by preventing insulation tests if a live circuit is detected.

• Display: Features a dual digital readout with an analog arc display that mimics the movement of a traditional moving coil meter.

• Durable construction: It has an IP54 weatherproof rating and a shock-resistant, over-molded case, making it durable for field use.
