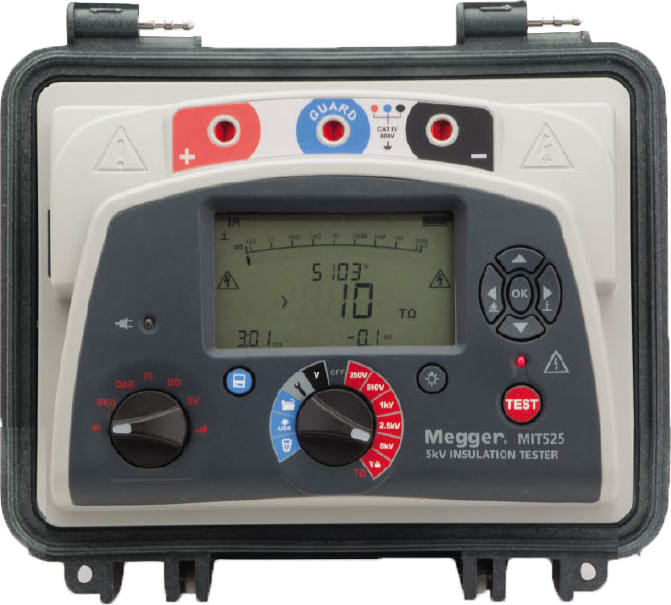

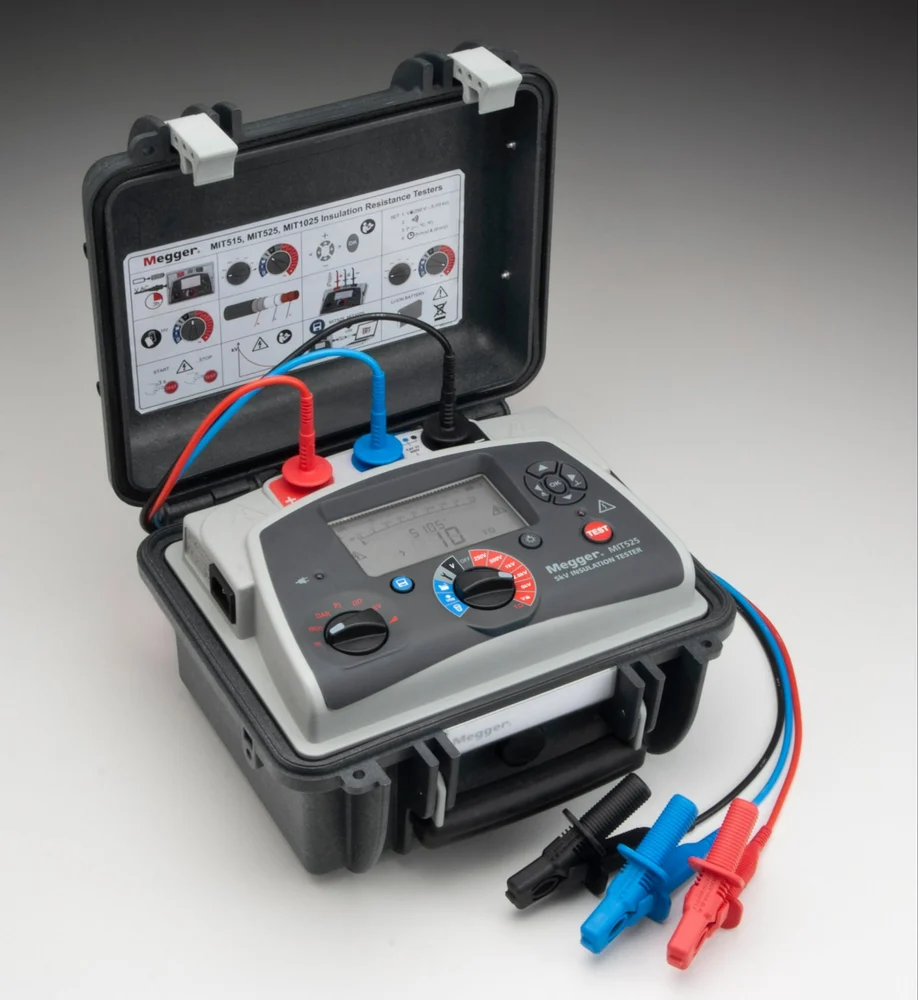

Megger MIT525 5-kV Insulation Resistance Tester

Description

The Megger MIT525 is a compact and lightweight 5 kV diagnostic insulation resistance tester for high-voltage electrical equipment. It features a tough dual-case design with an inner, fire-retardant case and an outer, IP65-rated case for protection against dust and water.

Key features

• Insulation resistance: Measures up to 10 TΩ at 5 kV.
  Test voltages: Provides five preset voltages (250 V, 500 V, 1000 V, 2500 V, 5000 V) plus a user-defined lock voltage range from 100 V to 5 kV.

• Diagnostic tests: Performs a full suite of diagnostic tests, including:
        1. Timed Insulation Resistance (IR)
        2. Polarisation Index (PI)
        3. Dielectric Absorption Ratio (DAR)
        4. Dielectric Discharge (DD)
        5. Step Voltage (SV)
        6. Ramp testing

• Power: Equipped with a rapid-charge Li-ion battery that provides up to 6 hours of continuous testing at 5 kV into 100 MΩ. It can also operate from mains power, even if the battery is dead.

• Safety rating: Rated CAT IV 600 V up to 3000 m altitude.
  Display and interface: Features a large, clear, backlit LCD for viewing multiple results at once.

• Memory: Includes advanced memory with time/date stamping and the ability to download stored data via a USB interface.

• Noise immunity: Offers a noise filter that rejects up to 3 mA of noise.

• Portability: Weighs 4.5 kg, making it easy to carry and transport.
