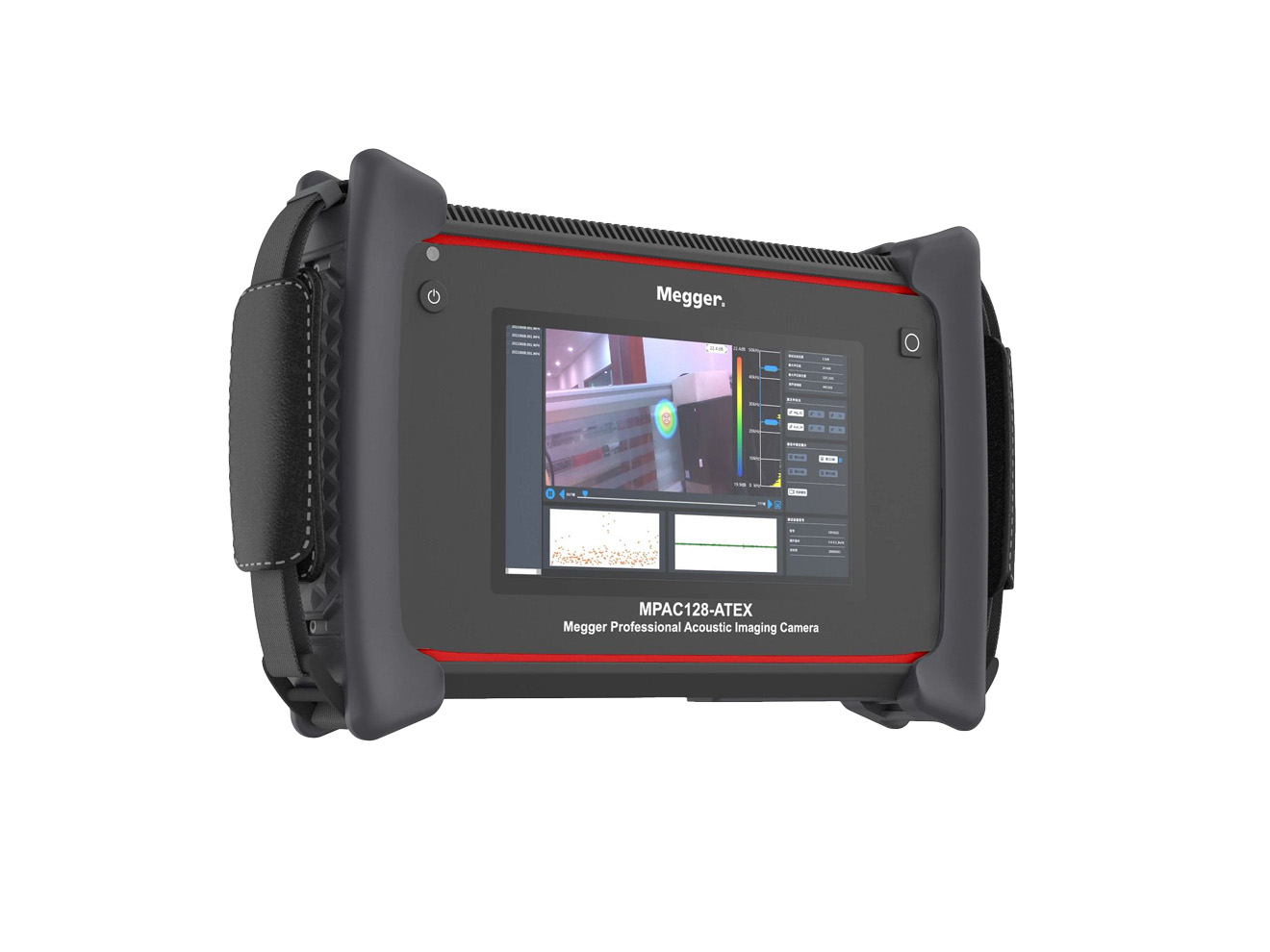

Megger MPAC128-ATEX Acoustic Imager for hazardous Zone 2 areas

Description

The Megger MPAC128-ATEX acoustic imager is an ATEX-certified camera specifically designed for safe and efficient operation in hazardous Zone 2 areas. It is used to detect gas leaks, pressure leaks, and partial discharge in environments where explosive vapors and gases may be present, such as chemical plants and oil refineries.

Key features

• ATEX Certification: The device is certified for use in Zone 2 hazardous areas, with a rating of II 3G Ex ic IIC T5 Gc.
• High-sensitivity microphone array: It uses a 128-microphone array to provide precise location and analysis of sound sources.
• Leak and discharge detection: The imager can detect a variety of issues, including gas, pressure, and vacuum leaks, as well as corona, arcing, and partial discharge faults.
• Extended detection range: It can detect faults from up to 120 meters away, allowing technicians to work from a safe distance.
• Wide frequency range: The camera operates within a 2 kHz to 48 kHz frequency band to capture a broad spectrum of acoustic data.
• High-resolution camera: An integrated 8 MP optical camera provides clear visual images that are overlaid with the sound map for better context.
• Intuitive interface: A 7-inch color touchscreen display makes the device easy to operate.
• Built for harsh conditions: An IP54 rating protects the device from water and dust ingress.
• Advanced analytics: Features like Phase Resolved Partial Discharge (PRPD) help differentiate between various types of electrical discharges.
