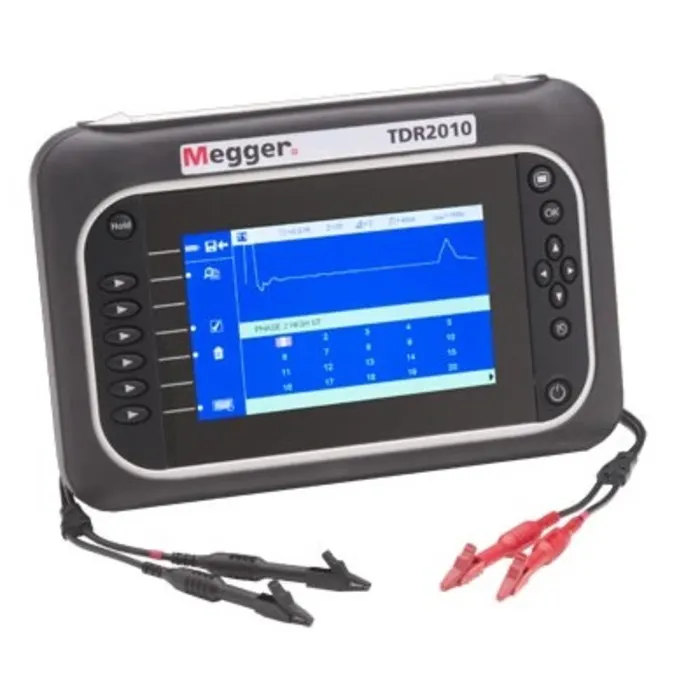

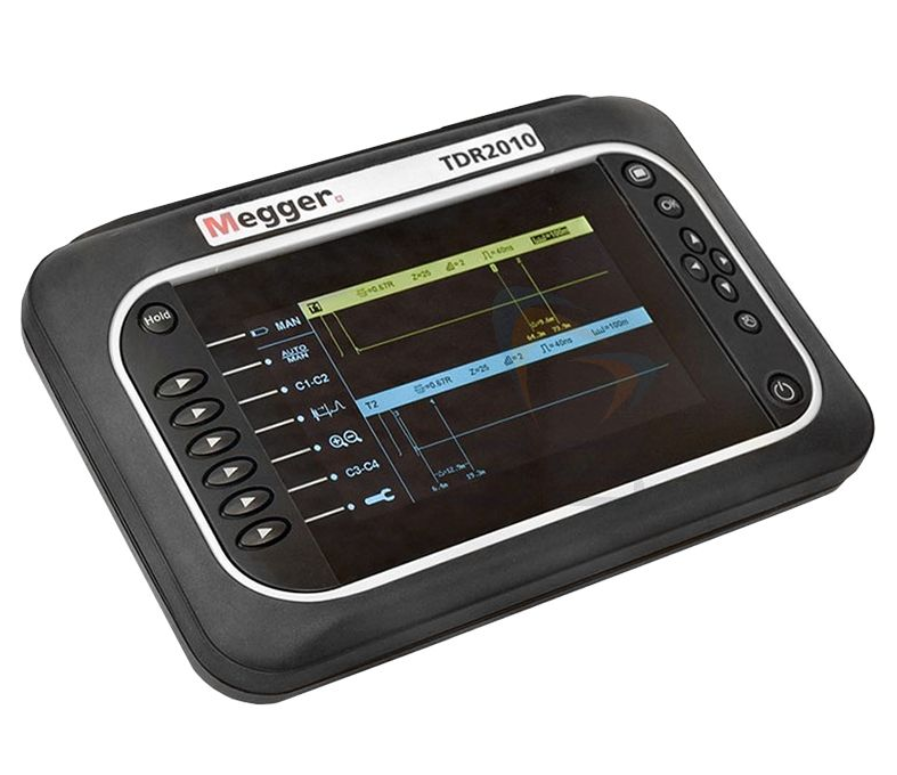

Megger TDR2010 Dual Channel Comms-Compact Time Domain Reflectometer

Description

The Megger TDR2010 is an advanced, dual-channel, compact Time Domain Reflectometer (TDR) used for locating faults on metallic paired cables. It features a high-resolution color screen and is designed for ease of use in field applications.

Key features

• High resolution: A minimum resolution of 0.1 m / 0.3 ft allows for precise fault location.
• Dual channels: The dual-channel capability enables the comparison of two traces simultaneously, which is useful for fault finding and analysis.
• Auto set-up and AutoFind: These functions automatically select the most effective testing parameters and help locate faults quickly, making it easy for both novice and expert users.
• Trace tagging and memory: Users can save up to 100 traces with alphanumeric identifiers for easy record-keeping and later recall.
• High-visibility display: The 800 x 480 pixel WVGA color LCD provides excellent visibility in various lighting conditions, including bright sunlight.
• Built-in software: The included TraceXpert PC software allows for downloading and uploading data via a USB connection, as well as creating professional reports.
• Rugged and portable: The unit has an IP54 rating for dust and weather protection, is powered by a rechargeable Li-ion battery with a 12-hour life, and features a compact, durable design.
• Adjustable settings: For more advanced users, manual control allows for fine-tuning of settings like gain and velocity factor (ranging from 0.2 to 0.99).
