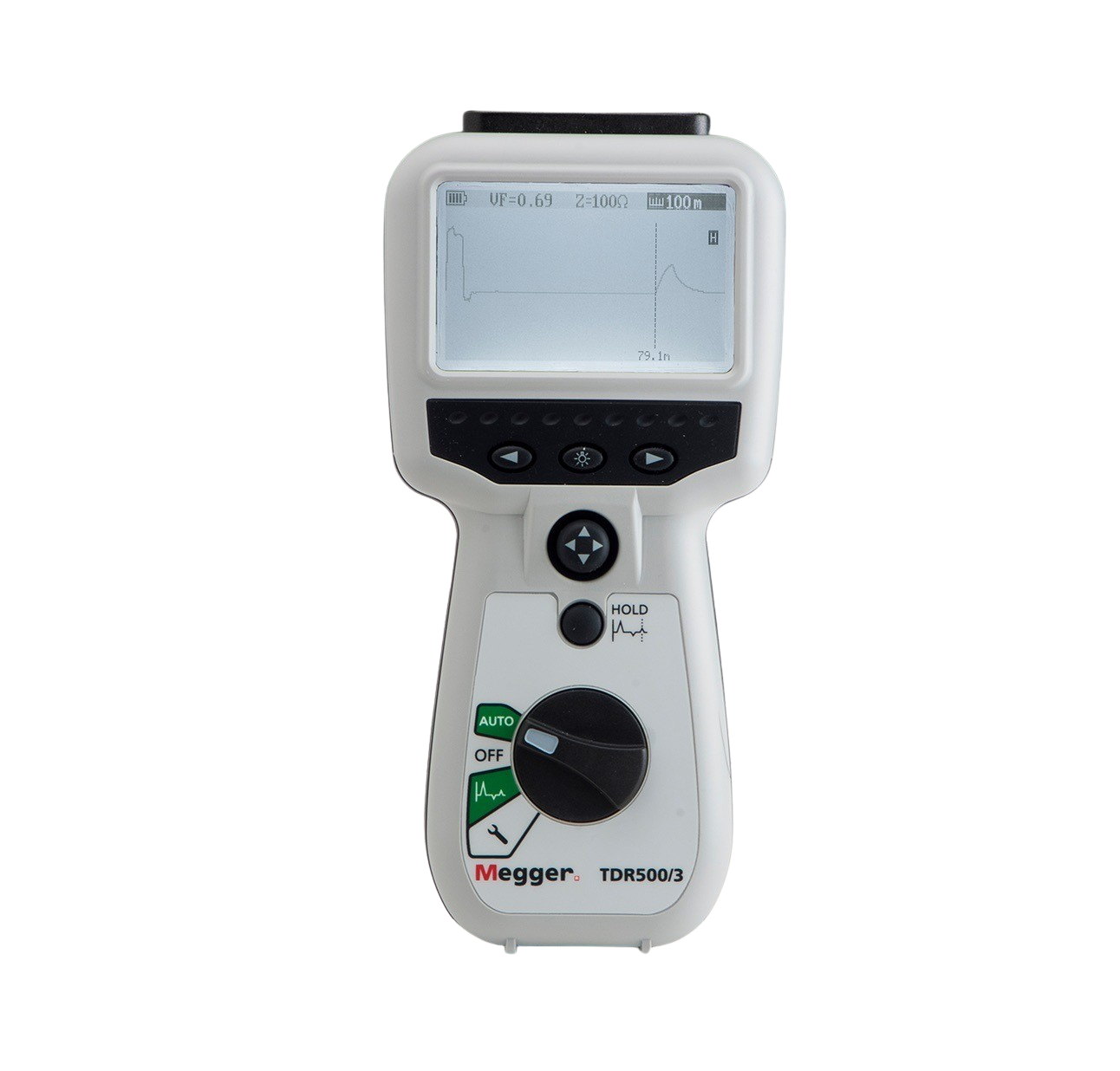

Megger TDR500 Time Domain Reflectometer

Description

The Megger TDR500/3 is a handheld, compact time domain reflectometer (TDR) used for quickly and accurately locating faults on metallic cables. Its user-friendly interface makes it ideal for field engineers and technicians.

Key features

• Automatic operation: The "AUTO selection" feature automatically adjusts the most effective test parameters for rapid fault diagnosis.
• Trace hold: Allows the user to freeze a trace on the screen for easier analysis.
• High resolution: Provides a minimum resolution of 0.1 meters (0.3 feet), depending on the velocity factor and cable type.
• Fast pulse: The ultra-fast pulse helps identify near-end faults, including those less than 1 meter from the connection point.
• Multiple impedances: Offers selectable output impedances of 25Ω, 50Ω, 75Ω, and 100Ω to accommodate various cable types.
• Durable design: The IP54 rating protects the unit against dust and water, making it suitable for both indoor and outdoor use.
• Long battery life: Uses 5 AA batteries and offers up to 14 hours of typical continuous use.
