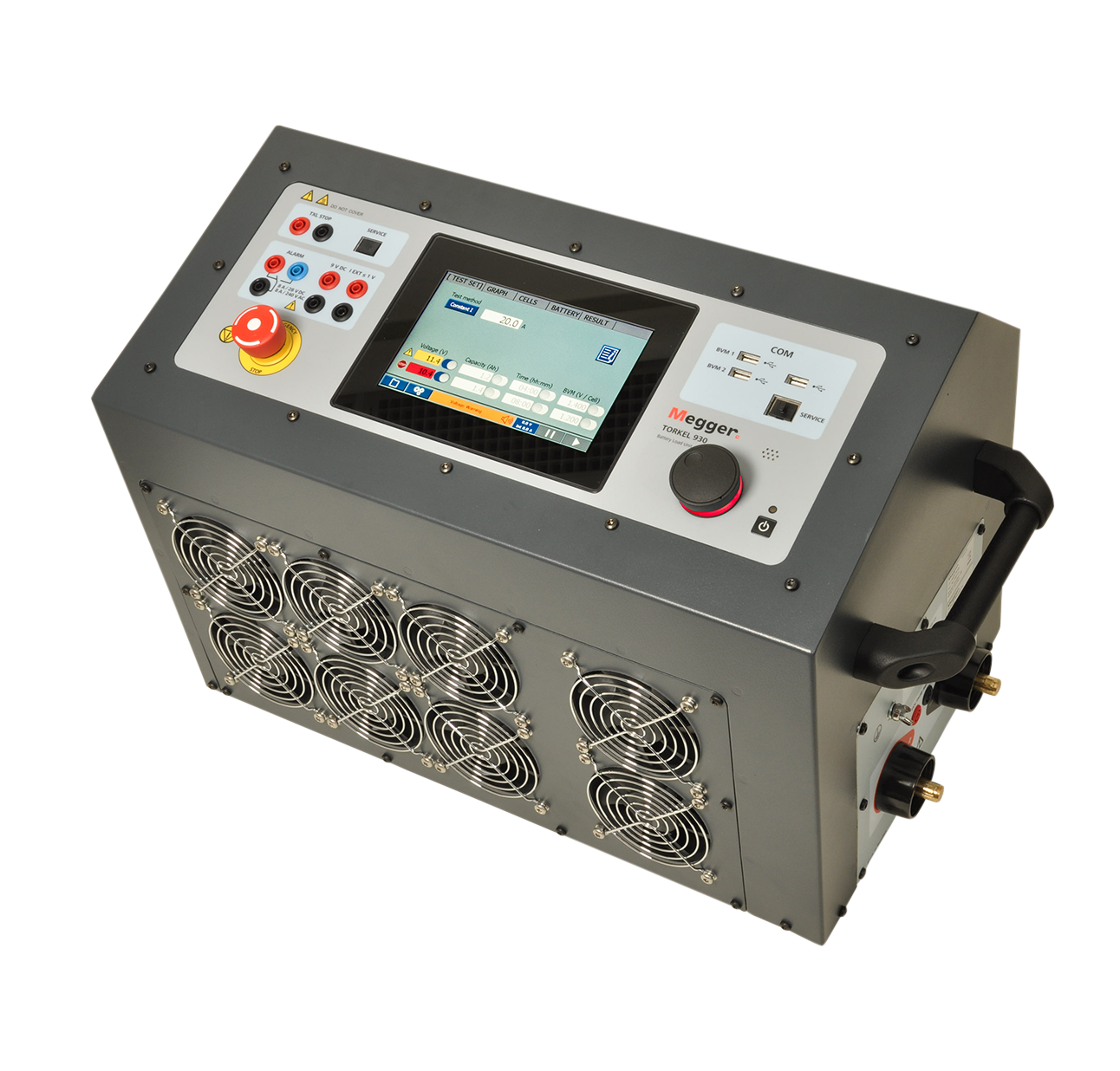

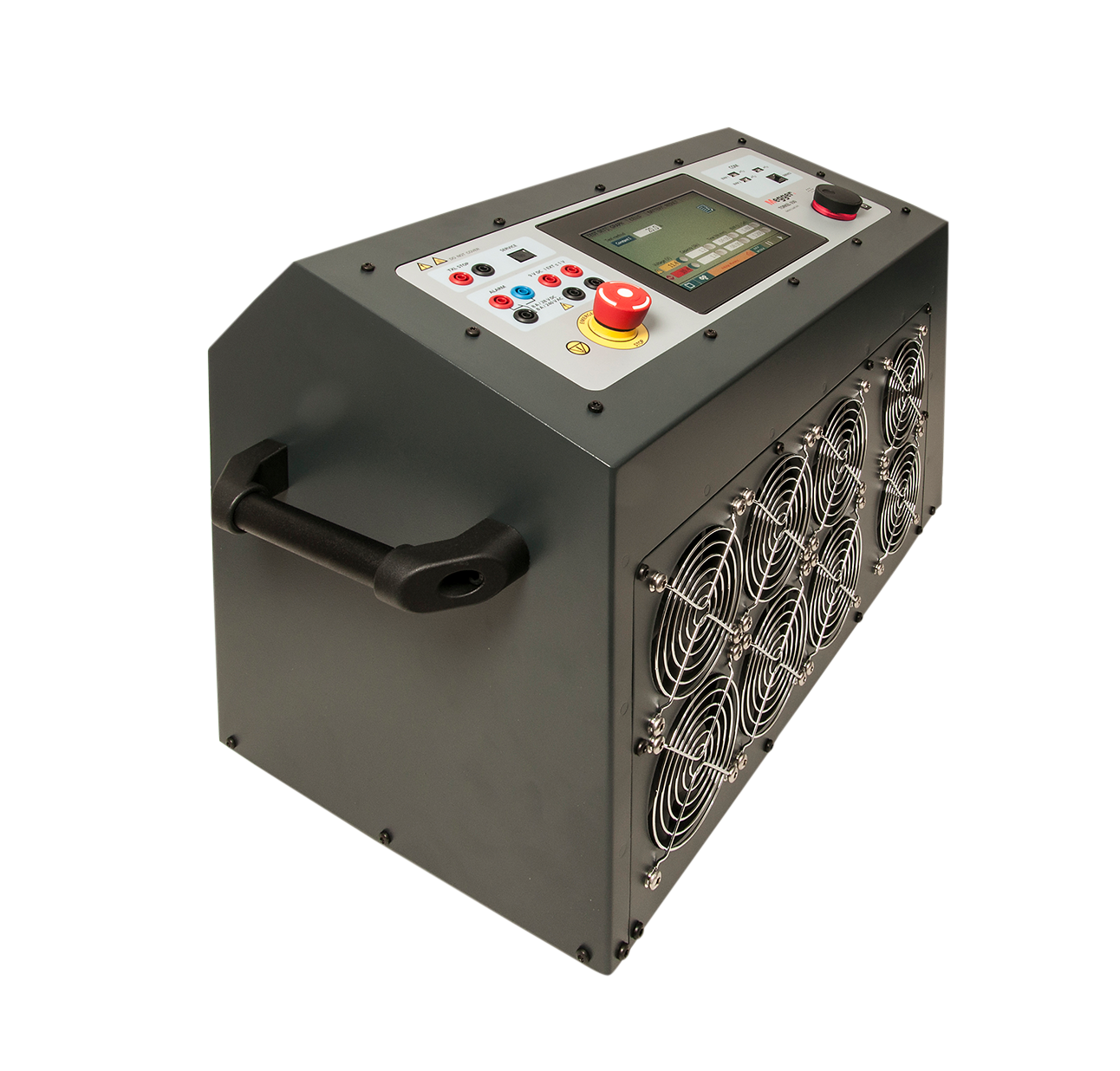

Megger TORKEL 910 Battery Discharge Test Systems

Description

The Megger TORKEL 910 is an entry-level battery discharge test system used for load testing to determine the actual capacity of battery systems from 12V to 300V. It is designed for use in high-voltage substations, industrial environments, and other critical power applications where battery reliability is essential.

Key features

• In-service testing: You can perform discharge tests on batteries without disconnecting them from their equipment, minimizing downtime.
• Dynamic Discharge Technology: Maintains a constant, reliable power output throughout the test, even as the battery voltage drops.
• Multiple Test Modes: Offers various testing modes including constant current (up to 110 A), constant power (up to 15 kW), constant resistance, or a pre-selected load profile.
• Safety Features: Includes blocked airflow detection, spark-free connections, automatic overload protection, and an emergency stop button.
• Expandable Capacity: Can be linked with optional TXL extra load units for higher current testing on larger battery banks.
• Intuitive Interface: Features a 7-inch LCD capacitive touchscreen for easy operation and monitoring of real-time test results.
• Data Transfer: Test results can be stored and transferred to a PC via a USB memory stick or ethernet for detailed analysis and reporting.
• Versatile Battery Compatibility: Suitable for testing various battery types, including Lead-Acid and Ni-Cd.
• BVM (Battery Voltage Monitor): While the TORKEL 910 is a stand-alone unit, you can connect the optional BVM system to monitor individual cell voltages during a discharge test. This is especially useful for identifying weak cells.
