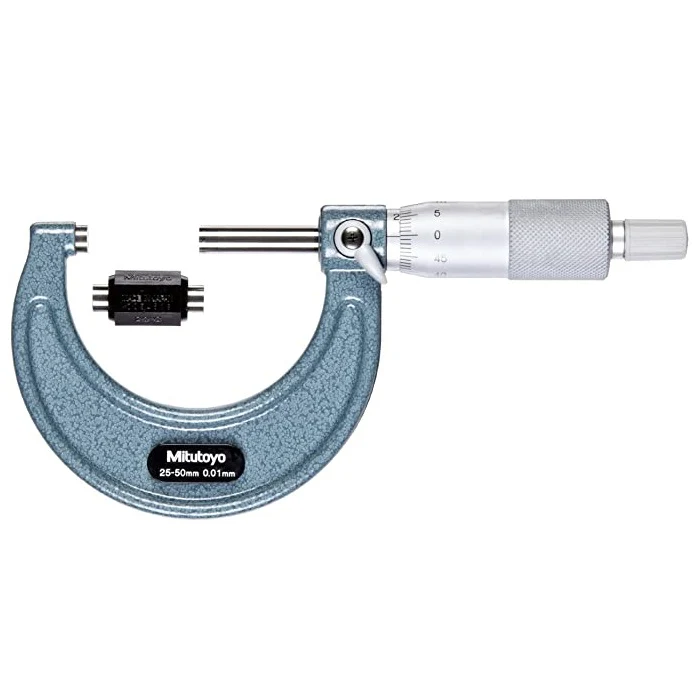

The Mitutoyo 103 series features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings. Available in metric and inches. The Mitutoyo outside micrometer is ideal for measuring metal and non-metal workpieces. A ratchet-stop mechanism on the 103-130 provides uniform pressure on a workpiece for precise, repeatable measurements. The friction thimble models allow for constant-force measurement for single-handed operation.
Range: 25-50mm
Graduations: 0.001mm
Accuracy: +/- 2um
Weight: 215g
Freatures
Comes with standard bar except for 25-50mm
Scale is laser etched on thimble and sleeve
Speeder is always available for quick rotation of the spindle
Frame has a hammer tone baked enamel finish for durability and is supplied in a fitted plastic case
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
