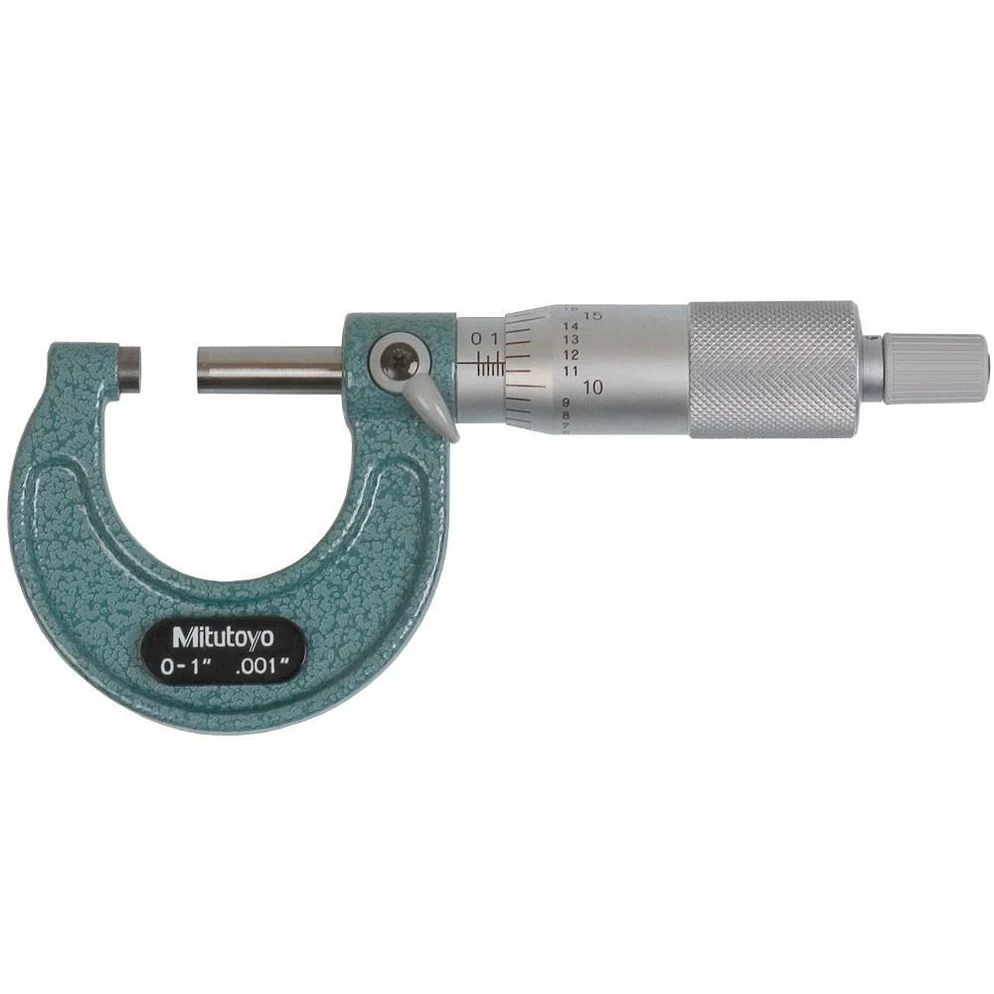

The Mitutoyo 103-177 Outside Mechanical Micrometer features a hammertone, green, baked-enamel finished frame and Carbide tipped measuring faces. This model includes a Ratchet Stop and a Measuring Range of 0-1" with an Accuracy of +/- 0.0001".
The Mitutoyo 103-177 outside micrometer set has the following specifications:
● Range: 0-1"
● Graduations: 0.001"
● Accuracy: +/- 0.0001"
● Mass (g): 175
Features:
● Hammertone, baked-enamel finished frame.
● Ratchet Stop or Friction Thimble for better repeatability
● All micrometers over 0-1" includes a standard
Technical Data
● Flatness:
0.000024" for models up to 12"
0.00004" for models over 12"
● Parallelism: [0.00008 + 0.00004 (L/4)]" L= max range (inch)
● Measuring faces: Carbide tipped
