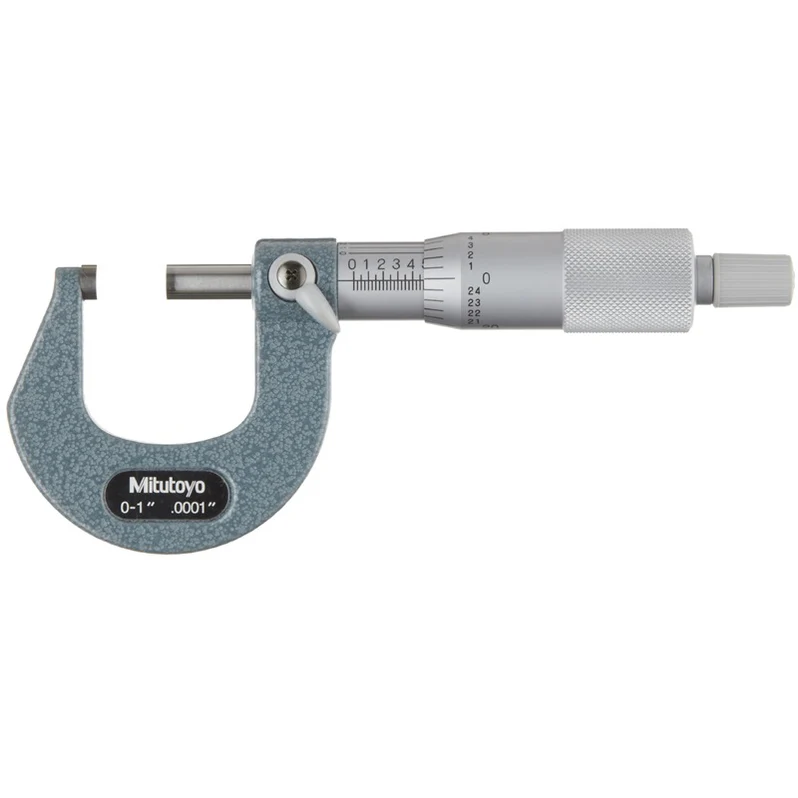

The Mitutoyo outside micrometers series 103 features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings. Available in metric and inches. The Mitutoyo outside micrometer is ideal for measuring metal and non-metal workpieces. A ratchet-stop mechanism on the 103-260 provides uniform pressure on a workpiece for precise, repeatable measurements. The friction thimble models allow for constant-force measurement for single-handed operation.
SPECIFICATIONS
Range: 0-1″
Accuracy: ± 0.0001″
Graduations: 0.0001″
With Ratchet Stop
Tapered Frame
Mass: 175g
FEATURES
Frame has a hammer tone baked enamel finish for durability
Scale is laser etched on the thimble and sleeve
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Speeder is always available for quick rotation of the spindle
Comes with standard bar except for 0-1″
Supplied in a fitted plastic case
