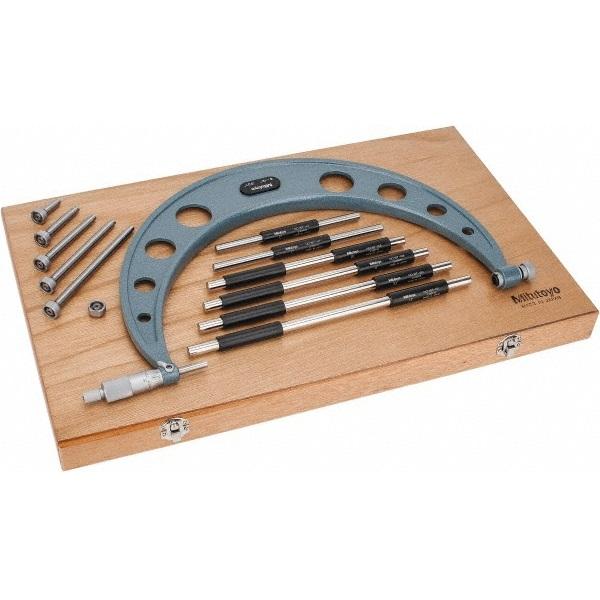

The Mitutoyo 104-136A Outside Micrometer with Interchangeable Anvils is a high-quality, durable product used to measure the thickness or the outside diameter of various tools. This product comes with interchangeable anvils for your convenience and encompasses a carbide tip. It is easy to store, use and carry around. The micrometer with interchangeable anvil has a Thimble and sleeve satin chrome finish measuring18 mm. The micrometer consists of a carbide tip and micro-lap spindle.
SPECIFICATIONS
● Range: 150-300mm
● Accuracy: +/-(4+R/75)
● Graduation: 0.01mm
● Resolution: 0.01mm
● Anvils: 6 Anvils and 6 Standards
● Interchangeable Anvils: 0, 25, 50, 75, 100, 125mm
● Measuring faces: Carbide tipped (spindle only)
● Type: Metric
● Weight: 2.65kg
FEATURES
● Comes with a Ratchet Stop for constant force
● Wide measuring range with interchangeable anvils
● Supplied with zero-setting standards bar for each range
● IP65 water/dust protection 340 series models with a range up to 12in / 300mm
● Measuring surfaces: Hardened, lapped (anvil), carbide tipped, lapped (spindle side)
