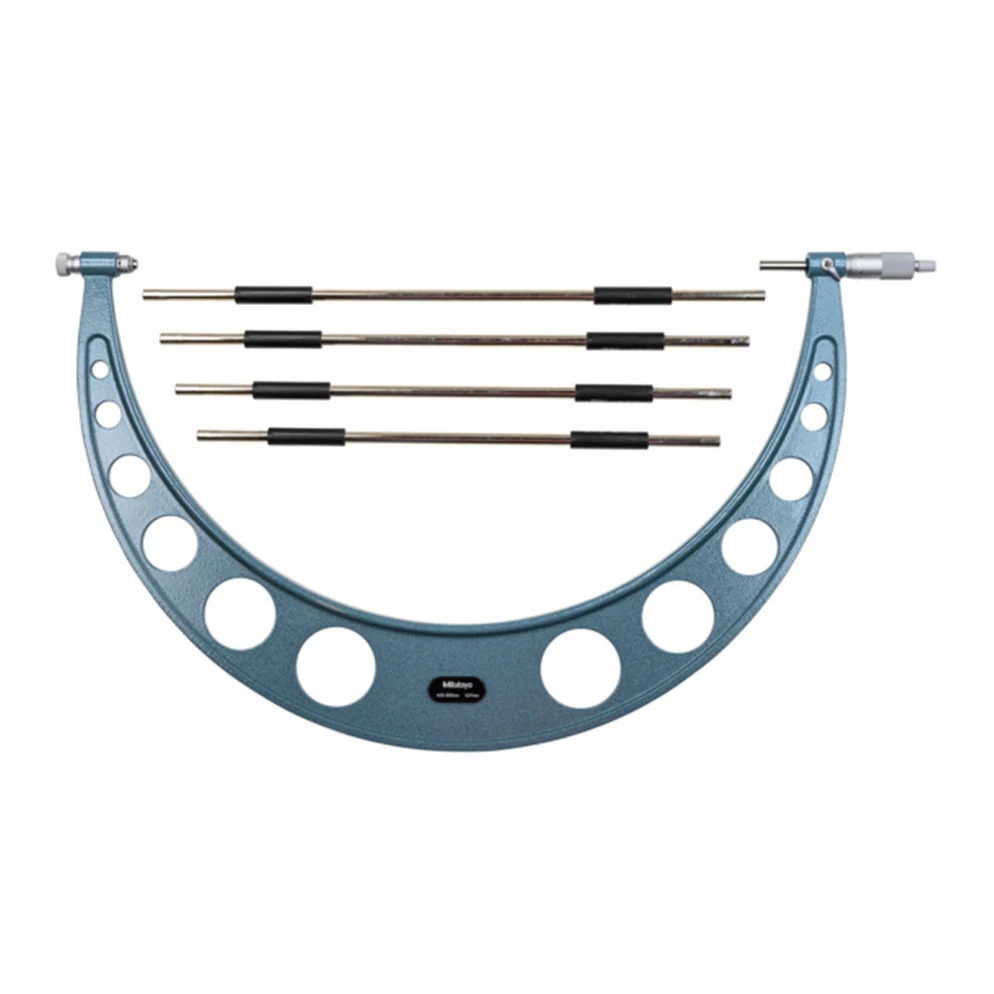

This Outside Micrometer offers you an extra wide measuring range and presents you with the following benefits:
Easy, interchangeable anvils allow a wide range of measurements.
Ratchet stop delivers a constant measuring force.
Features
Range: 700 - 800 mm
Interchangeable anvils: 4
Setting standard: 4 (700, 725, 750, 775 mm)
Mass: 9.08 kg
Measuring surfaces: Carbide-tipped micro-lap finish spindle and hardened steel anvil
Graduation: 0.01 mm
Delivered: Including box, setting standard, anvils, key
Digital/Analog: Analog
Accuracy: ±(4+L/75) µm, L = max. range (mm)
Inch-Metric: Metric
Scale: Thimble and sleeve satin chrome finish ø21 mm
Measuring spindle: With spindle lock, ø8 mm, spindle pitch 0,5 mm
Measuring force: 10 - 14 N
