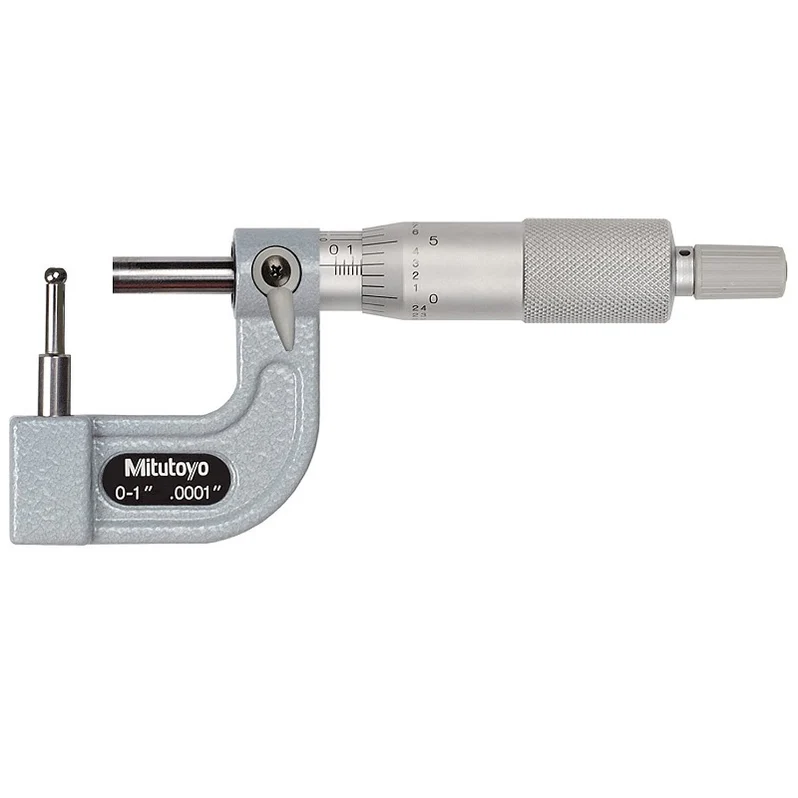

The Mitutoyo 115-313 tube micrometer measures the thickness of tube walls within ± 0.00015″/0.003mm of accuracy and displays readings on an analog digit counter. Available in inch or metric units. The Mitutoyo tube micrometer is available with either flat or spherical measuring face options to measure the wall thickness of various tubes. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements and eliminates the over-speed error.
SPECIFICATIONS
● Range: 0-1″
● Accuracy: ± 0.00015″
● Graduations: 0.0.0001″ (obtained with vernier)
● Anvil: Type C 4.7mm Spherical
● SPC Output: No
● Ratchet/Thimble: Rachet Stop
● Mass: 180g
FEATURES
● Available with a pin, spherical, and cylindrical anvils
● Measurements are displayed on the micrometer’s frame with a mechanical analog digit counter
● Models with a perpendicular cylindrical anvil are available
● Designed to measure the wall thickness of various tubing
● Measuring surfaces are constructed of carbide to reduce wear
● Ratchet mechanism provides an audible click to ensure the measurement is being performed at a constant force
● Satin chrome finish on the sleeve and laser-etched measurements on the thimble for easier reading
● Sizes over 0-1″ or 0-25mm are supplied with a standard
● Frame has a non-slip finish for better grip in shop environments
