Range: 0-1 Inch
Graduations: 0.001"
Base Length: 4" x 0.630"
Ratchet stop ensures greater repeatability among users
4mm/0.157" diameter measuring rod
With measuring rod clamp.
Technical Data
Accuracy: ±3µm (0.00015") for micrometer head feed
Graduation: 0.011"
Flatness of reference face: 1.3 microns(0.00005") for 63.5mm(2.5") width base, 2 microns (0.00008") for 101.6mm(4") width base
Flatness of measuring rod face: 0.3 microns
Parallelism between reference face and measuring rod face: (4+L/50) microns, L=Max. measuring length (mm)
Measuring rod diameter: 4mm (0.157")
Welcome to NCIEM.US

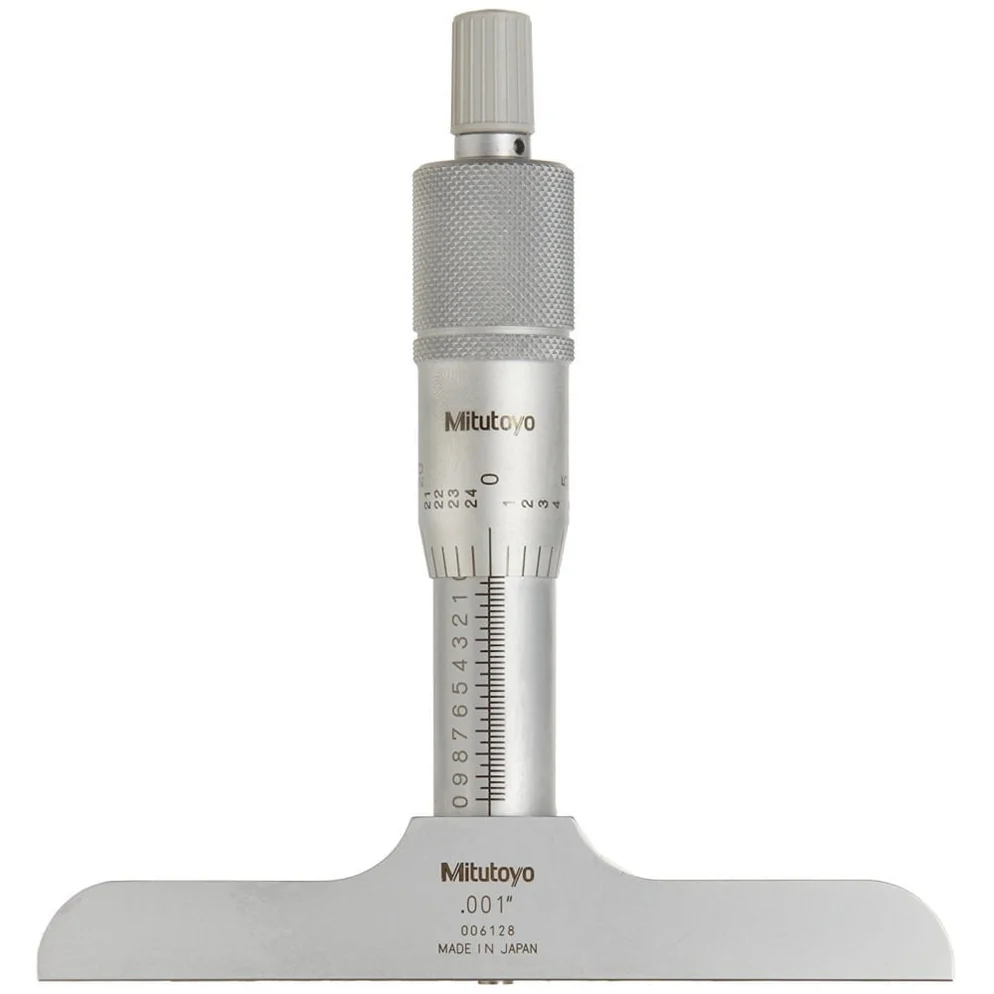

Mitutoyo 128-106 Depth Micrometer, 0-1"/ Base 4"
Brand
Brand names and trademarks are the property of their respective owners and are used solely for product identification.
Available to Order
Ratchet stop ensures greater repeatability among users
$145.00
🛡️ Buy with Confidence
- Shipping: $30 flat rate across the USA
- Processing: Fast 1–2 business days
- Delivery: Typically 4–7 business days via UPS / FedEx / DHL
- Warranty: 1-year manufacturer warranty (unless stated otherwise)
- Returns: Hassle-free 30-day return policy
- Secure Checkout: SSL encrypted & PCI compliant
- 128-106
- Measurement Tools
- Instruments
Seller: NCIEM America – National Company of Industrial Equipment Marketing America LLC (USA)
