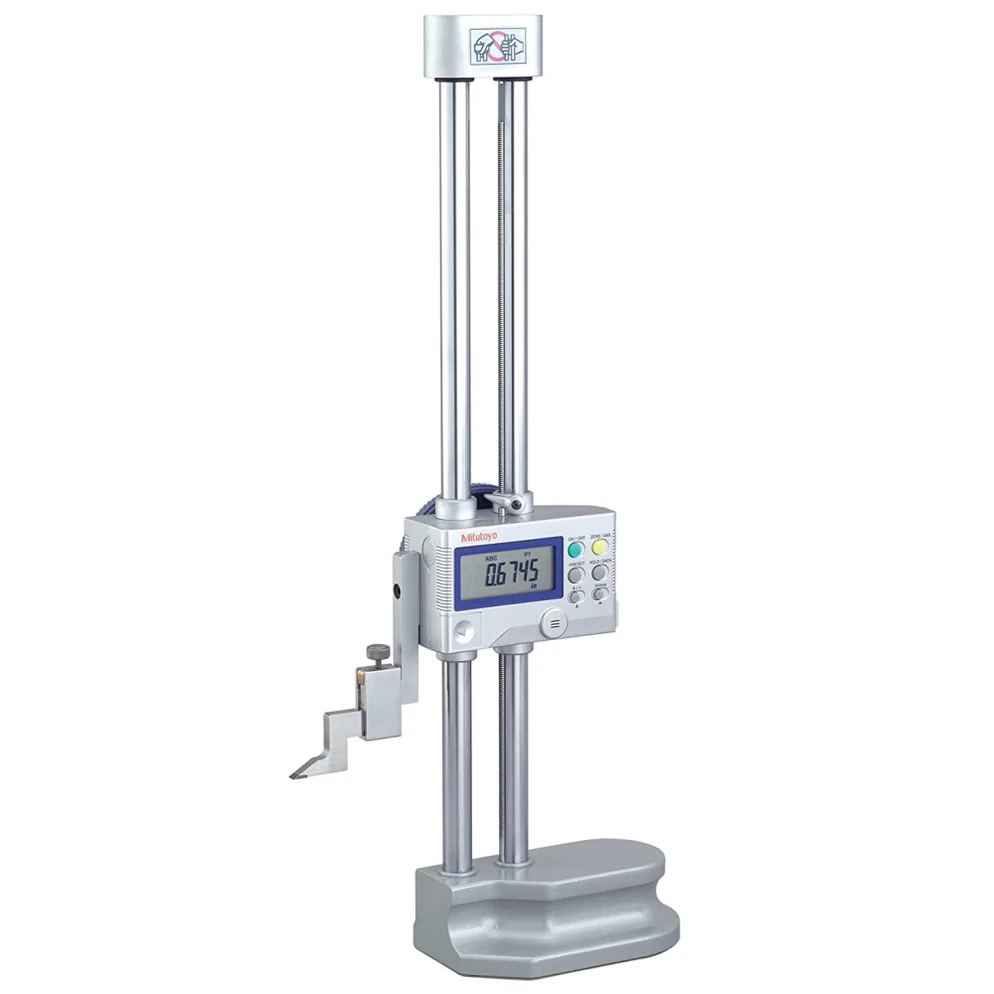

The Mitutoyo 192-630-10 is a Standard Type Digimatic Height Gauge with SPC output that achieves highly accurate height measurements with improved ease of operation. Measurements are shown on an easy-to-read LCD display. It provides precise measurement in a unit that is easy to use. This height gauge has a rigid, double-column structure which ensures high measuring accuracy and repeatability. The included carbide-tipped long scriber is highly durable and provides accurate marks on your workpiece.
TECHNICAL DATA
Range: 0-12"/300mm
Resolution: 0.0002"/0.005mm or 0.0005"/0.02mm (Switchable)
Accuracy: +/- 0.001"
Max Response Speed: 500mm/s
Battery life: Approximately 2,000 hours under normal use
Technology: Digimatic
Weight: 4.7kg
