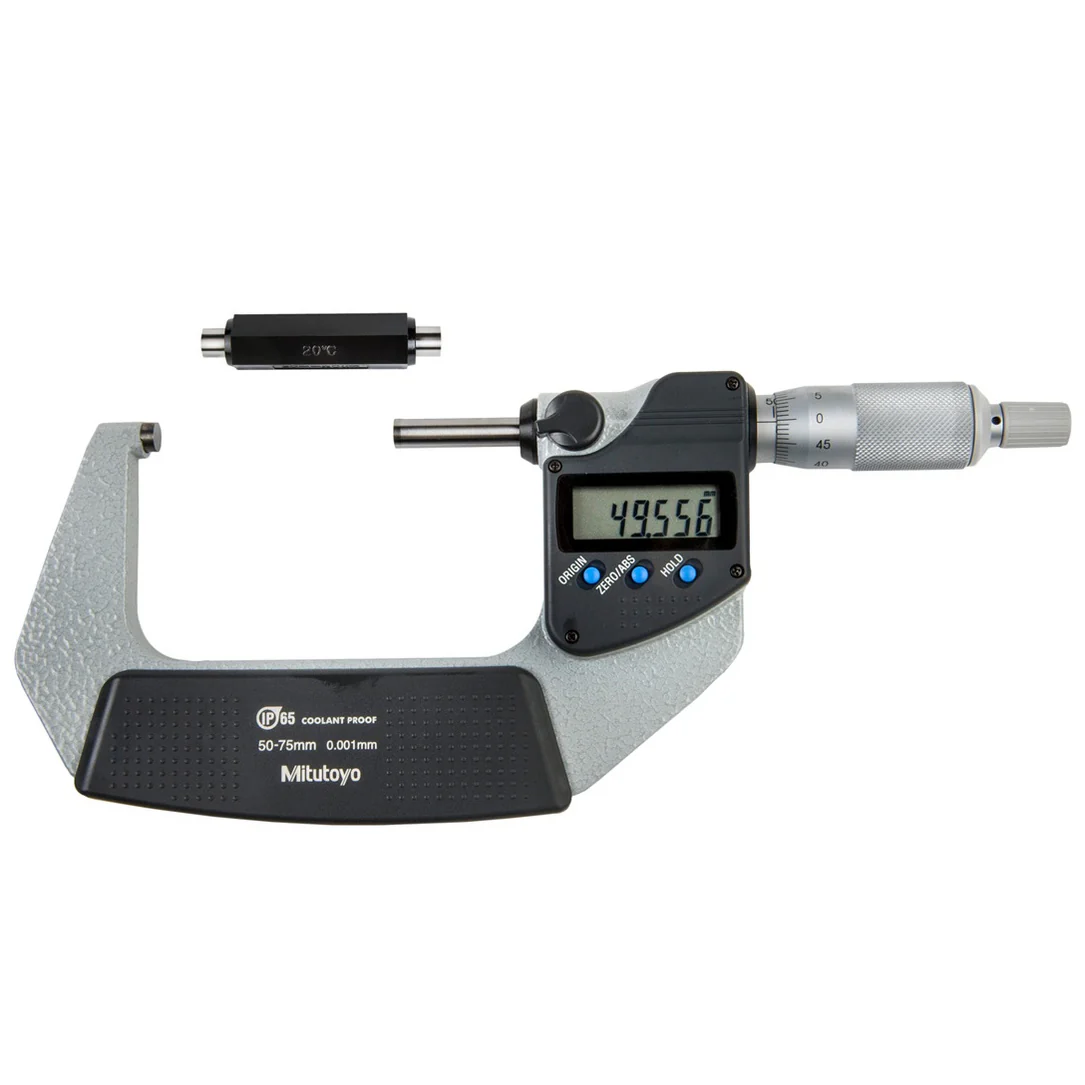

Mitutoyo new model 293-242-30 Digimatic micrometer features the NEW electromagnetic ABSOLUTE sensor, improving resistance to environmental conditions such as dirt, oil and water that can cause false readings. The coolant Proof Micrometer has a measuring range of 50-75mm with a Ratchet Stop. This Series features IP65 level of protection, enabling use in environments exposed to cutting oil, etc., a Zero-set key for easy origin setting, Carbide tipped measuring faces and comes in a fitted plastic case. Also includes Automatic power on/off feature and data hold as well as low voltage and counting value composition error alarms.
Specification:
Range: 50-75mm
Resolution: 0.001mm
Accuracy: +/- 0.001mm
SPC Output: No
Ratchet Stop
Flatness: 0.000012"/0.0003mm
Parallelism: 0.00008"/0.002mm for models up to 4"/100mm
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44
Battery life: Approx. 1.2 years under normal use (8 months: over 100mm models)
Dust/Water protection level: IP65
