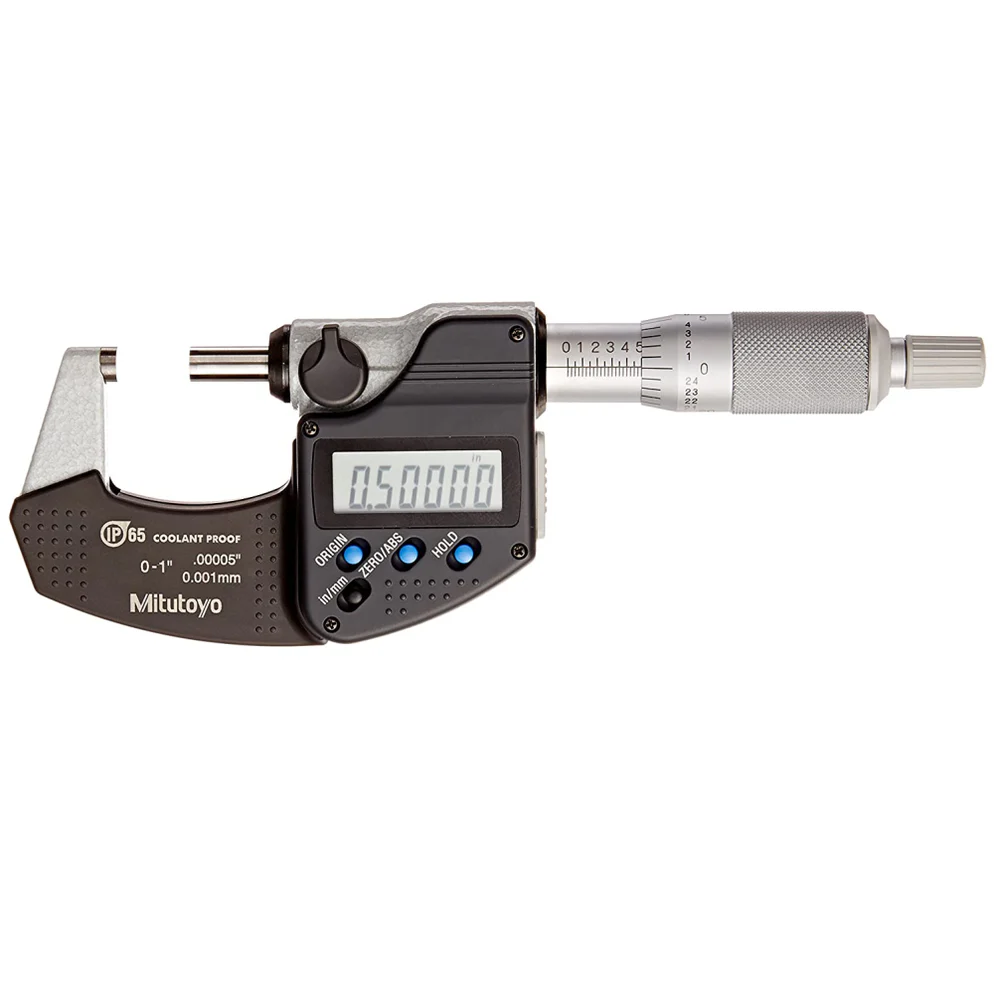

Mitutoyo new model 293-330-30 Digimatic micrometer features the NEW electromagnetic ABSOLUTE sensor, improving resistance to environmental conditions such as dirt, oil and water that can cause false readings. It has a measuring range of 1"/ 25.4mm with Inch/Metric conversion and a Ratchet Stop. This Series features IP65 level of protection, enabling use in environments exposed to cutting oil, etc., a Zero-set key for easy origin setting, Carbide tipped measuring faces and comes in a fitted plastic case. Also includes Automatic power on/off feature and data hold as well as low voltage and counting value composition error alarms. with SPC output
Specification:
●Range: 1"/25.4mm
●Resolution: 0.00005"/0.001mm
●Accuracy: +/- 0.00005"
●SPC Output: Yes
●Ratchet Stop
●Flatness: 0.000012"/0.0003mm
●Parallelism: 0.00004"/0.001mm for models up to 2"/50mm
●Measuring faces: Carbide tipped
●Display: LCD
●Battery: SR44
●Battery life: Approx. 1.2 years under normal use (8 months: over 100mm models)
●Dust/Water protection level: IP65
