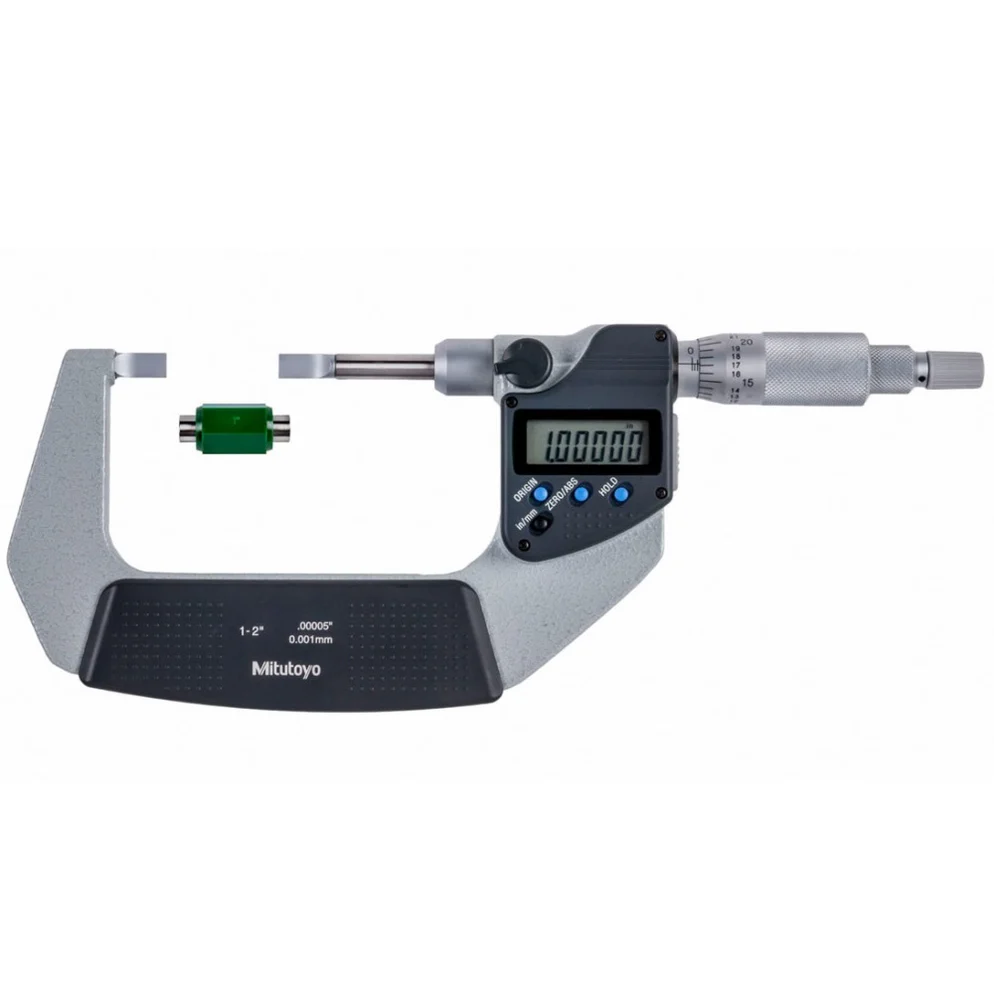

Mitutoyo 422-331-30 Digimatic Blade Micrometer, Range 1-2"/ 25.4-50.8mm
Mitutoyo 422-331-30 Digimatic Blade Micrometer, Range 1-2"/ 25.4-50.8mm

Mitutoyo 422-331-30 Digimatic Blade Micrometer, Range 1-2"/ 25.4-50.8mm

Brand
Mitutoyo

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

Available to Order

The anvil and the spindle have a blade for measuring the groove diameter of shafts, key ways, and other hard-to-reach areas.
$970.00

🛡️ Buy with Confidence

  • Shipping: $30 flat rate across the USA
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: NCIEM America – National Company of Industrial Equipment Marketing America LLC (USA)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: United States only, Policies apply to purchases made on nciem.us

The anvil and the spindle have a blade for measuring the groove diameter of shafts, key ways, and other hard-to-reach areas.
 With Ratchet Stop for constant force.
 With a standard bar except 0-25mm and 0-1" model.
 Origin-set, Zero-setting, Data hold, Data output, inch/mm
 Conversion (inch/mm models)
 Alarm: Low voltage, Counting value composition error
 Supplied in fitted plastic case.

Specifications:
 Range: 1-2"/25.4 - 50.8mm
 Accuracy: +/- 0.00015"
 Resolution: 0.00005"/0.001mm
 Parallelism: 0.003mm / 0.00012" for models up to 75mm / 3"
 (3+R/100) microns for models over 75mm,
 R = max. range (mm) 0.00016" for 4" models
 Display: LCD
 Battery: SR44 (1 pc.), 938882
 Battery life: Approx. 1.2 years under normal use

Download Data Sheet
