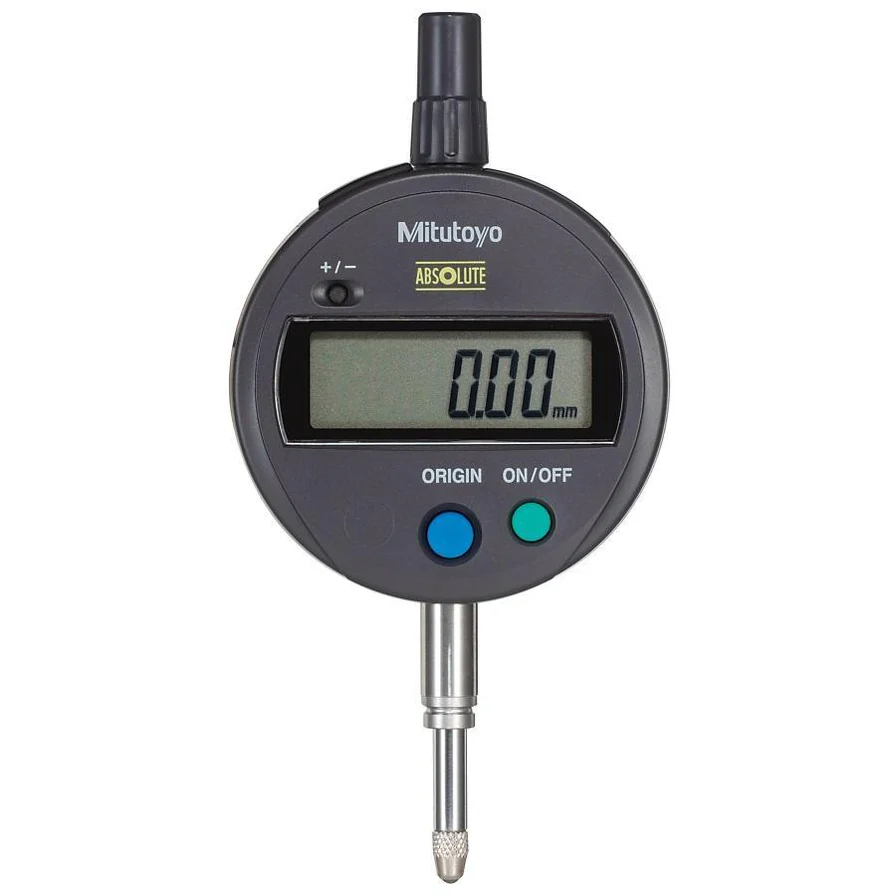

Mitutoyo 543-781 Digimatic Indicator ID-S1012X, IP42, SPC, 0.01mm X 12.7mm IDS 8mm stem, Lug Back. Employing the ABSOLUTE linear encoder, the Signal ID-S always displays the spindle "Absolute Position" from the origin at power-on. After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over entire battery life. Unlimited response speed eliminates over-speed errors.
The Mitutoyo 543-781 ID-S ABSOLUTE Digimatic Indicator with Simple Design has the following specifications:
● Model: ID-S1012X
● Range: 0-12.7mm
● Resolution: 0.01mm
● Accuracy: .02mm
● Stem/Shank: 8mm
● Contact Point: M2.5x 0.45 Thread
● Measuring force: 1.5N or less
● Type: ISO/JIS
● Type: Lug Back
Features:
● After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
● Unlimited response speed eliminates over-speed errors.
● SPC data output.
● Similar in size to standard Series 2 dial indicators
● Any part number followed with a "B" means that model has a flat back (no lug)
Technical Data:
● Display: LCD
● Length standard: ABSOLUTE electrostatic capacitance type linear encoder
● Max. response speed: Unlimited
● Measuring force: Refer to the list of specifications
● Battery: SR44 (1 pc.), 938882
● Battery life: Approx. 20,000 hours under normal use
Functions:
● Origin-set
● Zeroset
● Counting direction switching
● Power ON/OFF
● Data output,inch/mm conversion (on inch/metric models only)
● Alarm: Low voltage
● Counting value composition error
● Over-flow error
