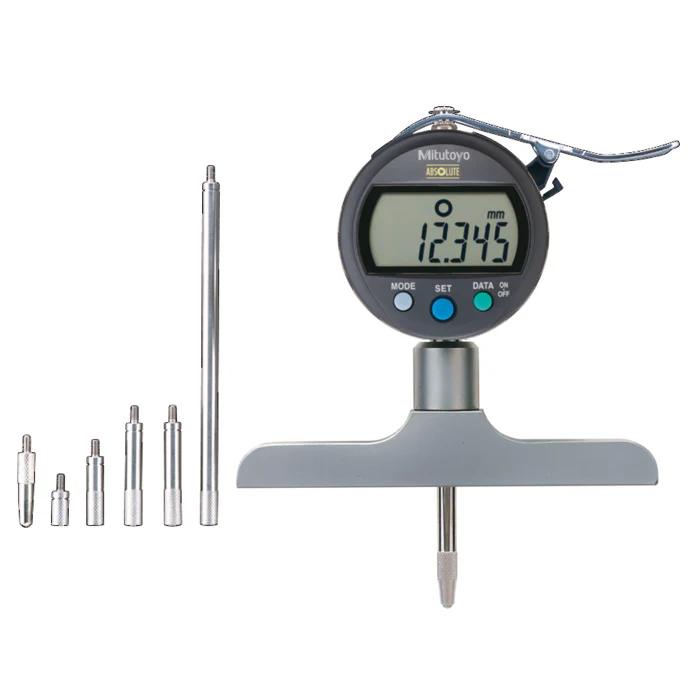

The Mitutoyo 547-252 Absolute Digimatic Depth Gage has the following specifications:
- Range: 0-200mm
- Stroke: 12mm
- Resolution: 0.001mm
- Accuracy: +/- 0.005mm
- Flatness: .002mm
- Extension Rods: 5 Pcs. (10, 20, 30, 30, 100mm)
- Base Dimensions: 101.6 x 16mm
- Contact Point: Carbide
- Measuring Force: 1.4N
Features:
- Absolute Digimatic Depth Gage can keep track of the origin point, once set, for the life of the battery
- With SPC Output
- Wide probing range is available with supplied extension rods
- Bottom surface of the base is hardened ground and lapped for highest degree of flatness.
