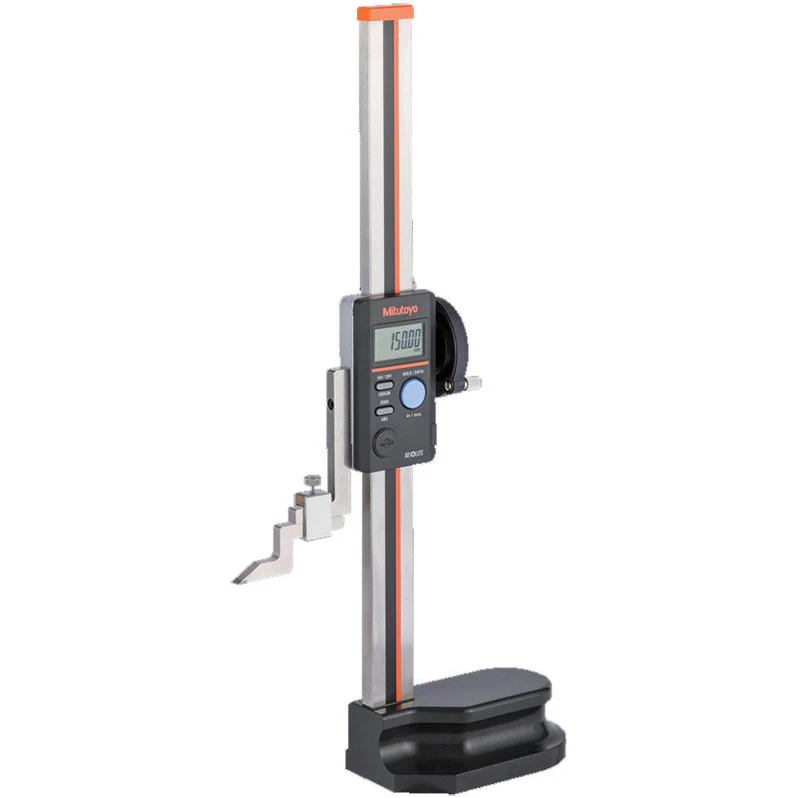

Mitutoyo 570-412 absolute digimatic height gauge is very precise and reliable, and offers you the following benefits:
● Its built-in ABSOLUTE linear encoder means you don‘t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.
● It comes with a large and smooth-acting slider hand wheel
● A carbide-tipped scriber is provided
● A large display and buttons for easy operability
SPECIFICATIONS
● Measuring Range: 0-12"/0-300mm
● Resolution: 0.0005"/0.01mm
● Maximum Permissible Error EMPE: ±0.0015"/±0.03mm
● Drive Method: Slider-feed wheel (manual)
● Digital/Analog: Digital
● Unit: Inch/metric
● Display: LCD
● SPC Output: Yes
● Functions: ON/OFF, ORIGIN, ZERO/ABS, HOLD/DATA, inch/mm conversion
● Length Standard: ABSOLUTE electrostatic capacitance type linear encoder
● Battery Life: Approximately 20,000 hours with continuous use, five years under normal use
● Dimensions: 5.87 x 3.94 x 20.31" (149 x 100 x 516mm)
● Weight: 4.6kg (10.14lbs)
