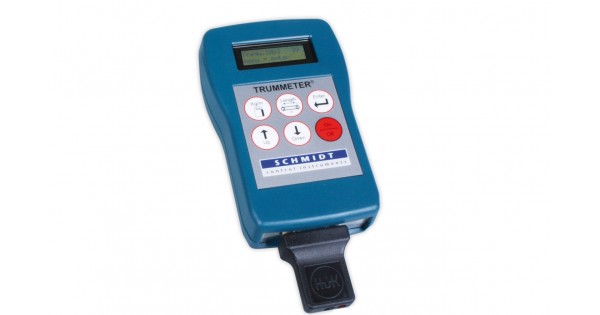

RTM-400 Belt Tension Meter

Description

The RTM-400 is a digital, hand-held belt tension meter, also known as a "Trummeter," manufactured by Schmidt. It measures the static tension of belts in various drive systems, such as V-belts and tooth belts, to ensure they are at the optimal tension for efficiency and longevity. It is not affected by ambient noise during measurements.

Key Features

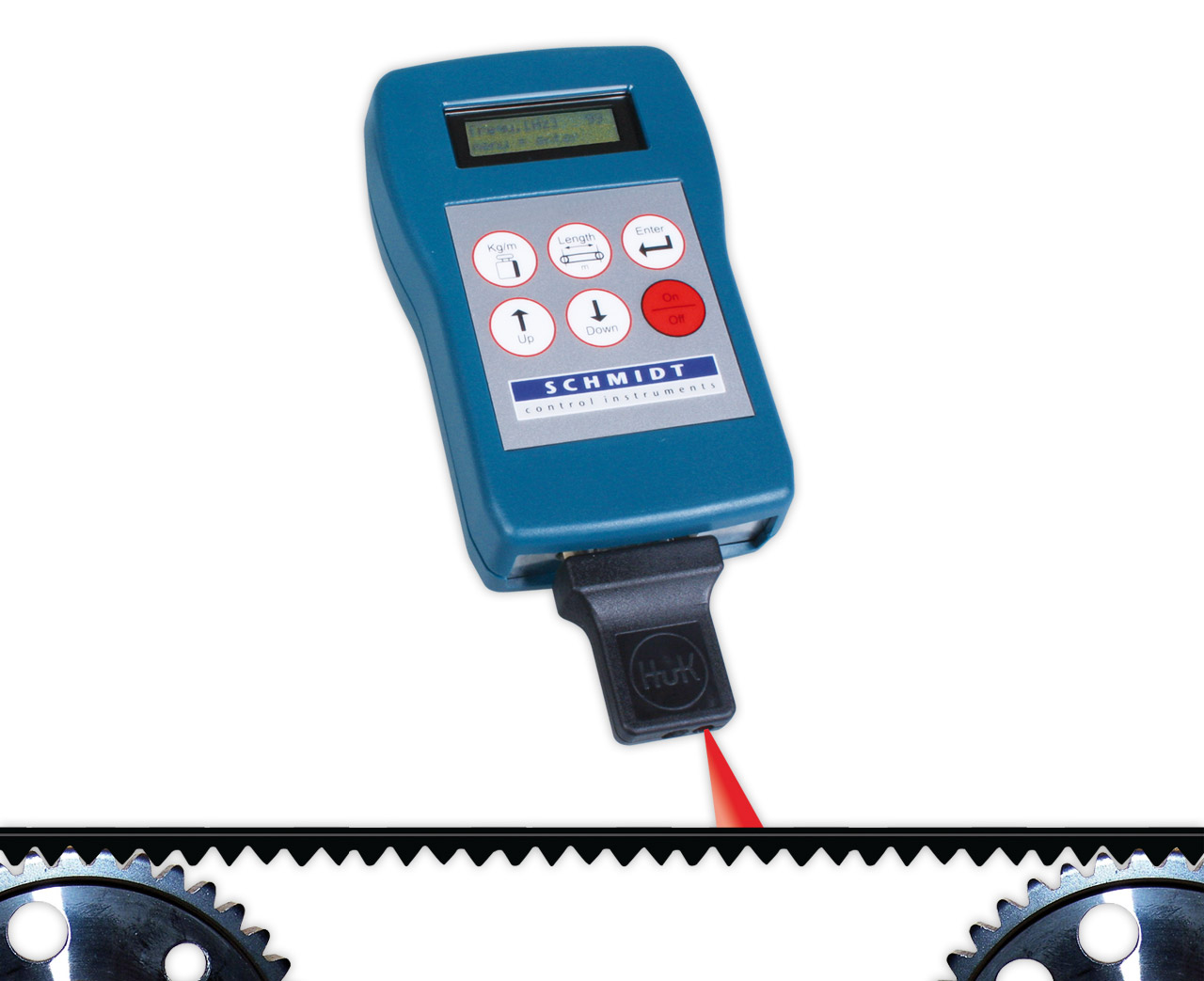

• Measuring principle: Frequency measurement via pulsed LED light.
• Measuring range: 10 to 800 Hz.
• Probes: Includes two probes: a plug-in probe for one-handed operation and a probe with a cable for limited-access spaces.
• Display: 2-line LCD with 16 characters per line.
• Dimensions: Approximately 126 x 80 x 37 mm (L x W x H), according to Hans Schmidt.
• Power supply: 9 V battery.
• Housing: Rugged, handy plastic (ABS) housing.
• Operating temperature: +10 °C to +50 °C.
• Multilingual support: Display and operator guidance available in 10 languages.
