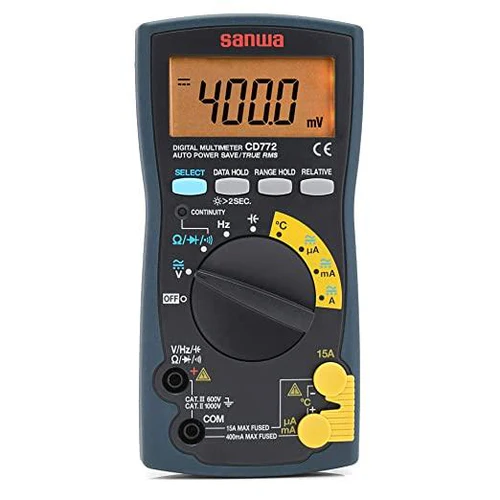

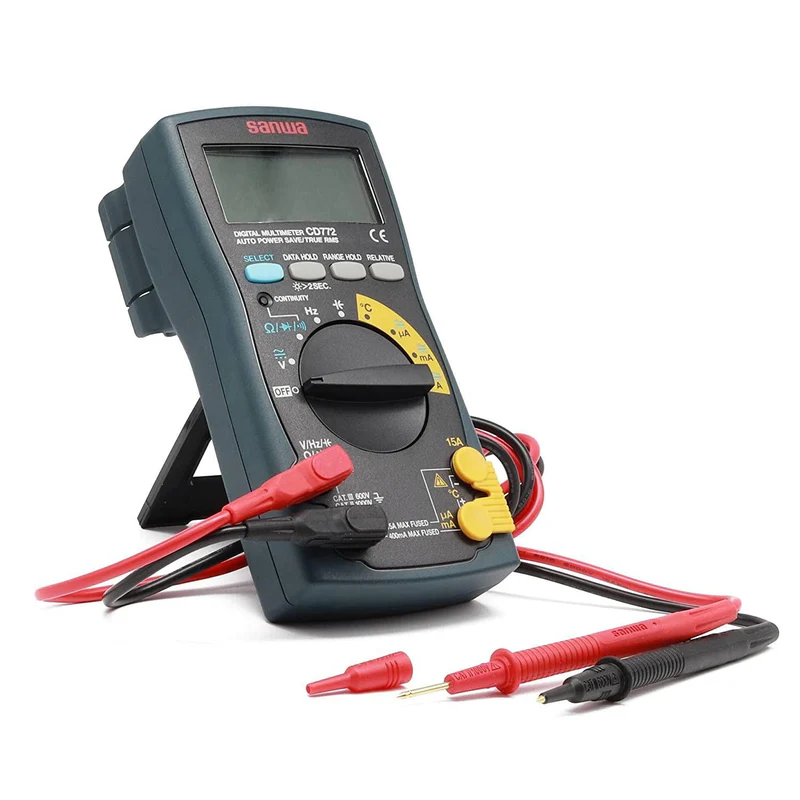

Sanwa CD772 Digital Multimeter with Backlight & Temperature Measurement

Description

The Sanwa CD772 is a digital multimeter known for its durability, safety features, and ability to measure a wide range of electrical parameters. It is a versatile tool suitable for professionals and DIY enthusiasts in automotive, household, and industrial applications.

Key Features

• True RMS: Capable of measuring the true root mean square value of AC voltage and current, which is more accurate for non-sinusoidal waveforms.
• Display: A large, easy-to-read, 4000-count LCD with a backlight for use in dim lighting conditions.
• Temperature measurement: Includes a K-type thermocouple sensor to measure temperature from -20°C to 300°C (-4°F to 572°F).
• Robust construction: Built with a thermo-plastic elastomer exterior, which offers high resistance against damage from impacts and drops.
• Safety features: Includes large breaking capacity fuses (30kA) and is rated for safety standards IEC61010 CAT.III 600V and CAT.II 1000V. It also has a safety cap on the current terminal.
• Automatic power-off: An auto-power-save feature turns the device off after 30 minutes of inactivity to conserve battery life. This function can be canceled.
• Data functions: Offers data hold to freeze a reading on the screen, range hold to fix the measurement range, and a relative function for comparing measurements.
• Continuity and diode tests: Includes a continuity check with both an audible buzzer and a visual LED indicator, as well as a diode test feature.
