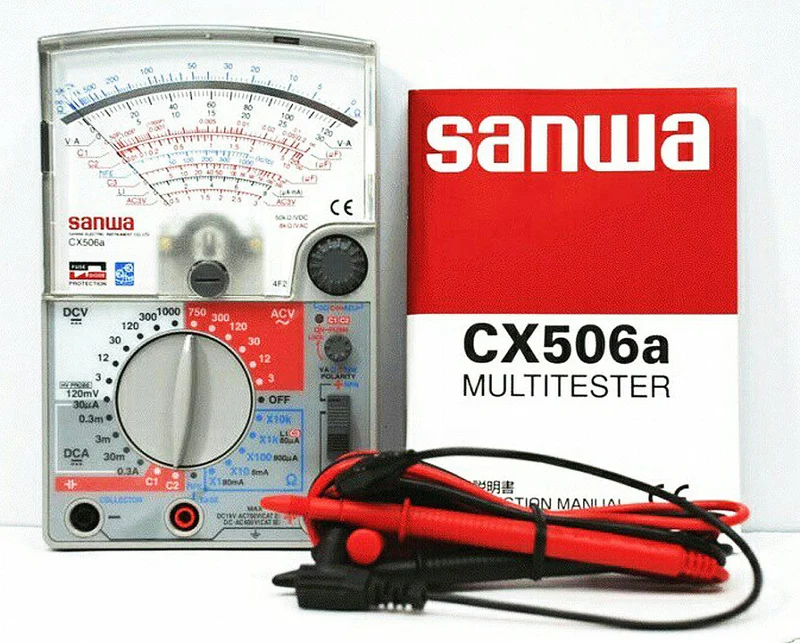

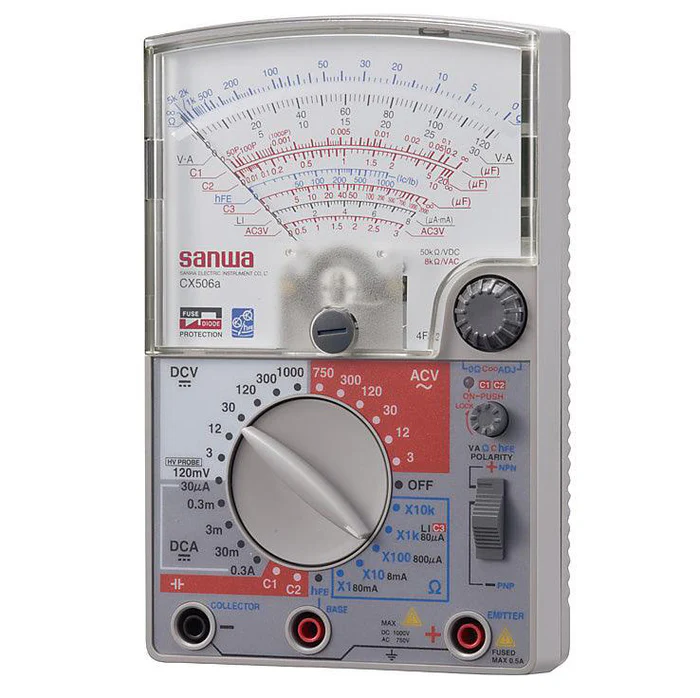

Sanwa CX506a Analog Multimeter with Capacitance Measurement and Built-in Transistor Oscillator
Sanwa CX506a Analog Multimeter with Capacitance Measurement and Built-in Transistor Oscillator
Sanwa CX506a Analog Multimeter with Capacitance Measurement and Built-in Transistor Oscillator
Sanwa CX506a Analog Multimeter with Capacitance Measurement and Built-in Transistor Oscillator
Sanwa CX506a Analog Multimeter with Capacitance Measurement and Built-in Transistor Oscillator
Sanwa CX506a Analog Multimeter with Capacitance Measurement and Built-in Transistor Oscillator

Sanwa CX506a Analog Multimeter with Capacitance Measurement and Built-in Transistor Oscillator

Brand
SANWA

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

Available to Order

DescriptionThe Sanwa CX506a is a portable analog multimeter featuring a built-in transistor oscillator for capacitance measurement. Designed for both hobbyists
$170.00

🛡️ Buy with Confidence

  • Shipping: $30 flat rate across the USA
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: NCIEM America – National Company of Industrial Equipment Marketing America LLC (USA)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: United States only, Policies apply to purchases made on nciem.us
Description

The Sanwa CX506a is a portable analog multimeter featuring a built-in transistor oscillator for capacitance measurement. Designed for both hobbyists and professionals, it offers a wide range of functions for measuring low-voltage circuits and home appliances.

Key Features
  • Capacitance measurement: A unique feature enabled by the built-in transistor oscillator, allowing the device to measure capacitance over a broad range.
  • Transistor checker: The CX506a can also be used to test Bi-junctional transistors (BJT).
  • High input resistace: Features a high-sensitivity taut-band meter with a 50kΩ/V input resistance on DC voltage ranges from 3V to 300V, which helps to ensure accurate readings.
  • DC polarity switch: A switch allows you to reverse the polarity for DC voltage and DC current readings, which is a useful feature when troubleshooting.
  • Multi-functional switch: A 26-position selector switch provides a wide variety of measurement functions.
  • Range: The measurement is divided into three scales:

               1.   C1: 50 picofarads (pF) to 0.2 microfarads ($\mu$F)

               2.   C2: 0.01 microfarads ($\mu\(F)to20microfarads(\)\mu$F)

               3.   C3: 1 microfarad ($\mu\(F)to2000microfarads(\)\mu$F)

Download Data Sheet
