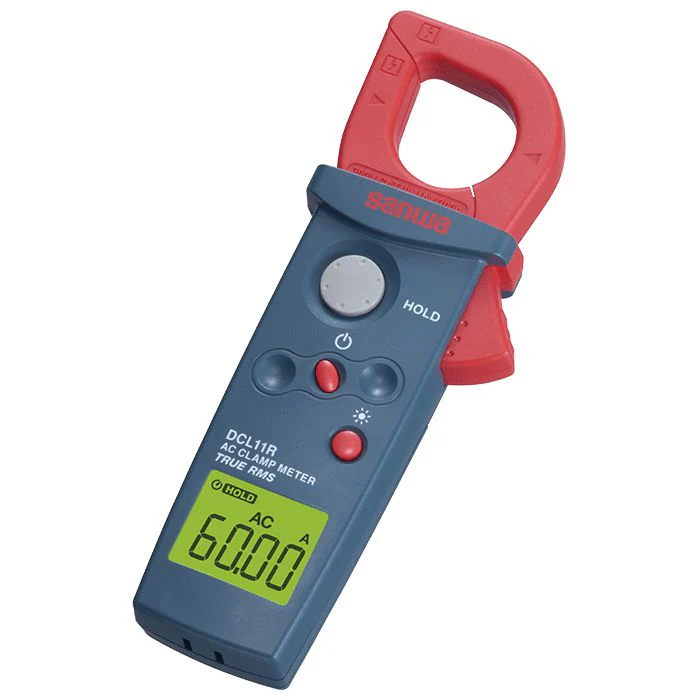

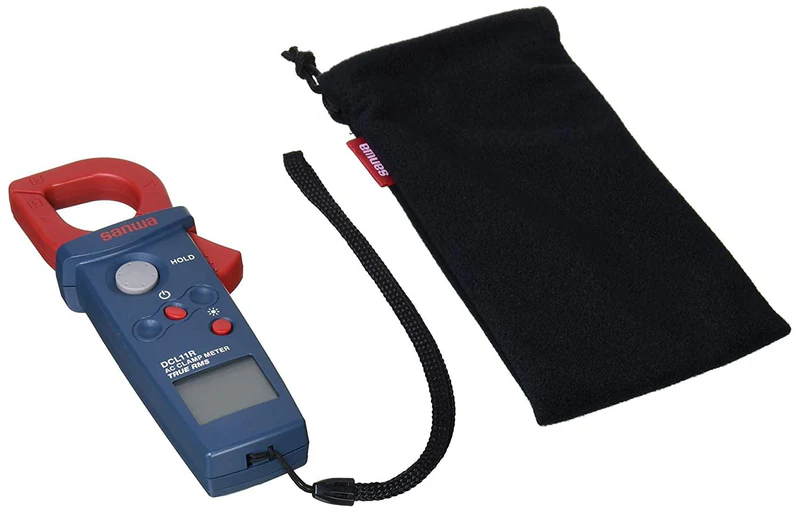

DescriptionThe Sanwa DCL11R is a compact, pocket-sized True RMS mini clamp meter designed to measure AC current in low-voltage power lines and appliances. True RMS capability allows it to accurately measure non-sinusoidal waveforms, which are common in many modern electronic devices. |
Key FeaturesCompact size: The meter has a slim body and a mini CT (current transformer) sensor, making it easy to use in tight wiring spaces. Its dimensions are approximately 145mm x 54mm x 31mm, and it weighs around 120g. True RMS conversion: Accurately measures the AC current and voltage of distorted or non-linear waveforms. 6000-count display with backlight: The high-resolution display shows measurements clearly, even in poorly lit environments. The backlight automatically turns off after 10 seconds to conserve battery life. Data hold function: This feature fixes the measured value on the display, so you can record the reading even after removing the test leads. Auto power off: The meter automatically turns off after about 15 minutes of inactivity. This function can be canceled. Safety rating: It is rated for IEC61010 CAT. III 300V, making it safe for use on many low-voltage electrical systems. High maximum input: The clamp sensor has a maximum input current rating of 320A with a max overload protection of 350A. Long battery life: The meter operates on two AAA (LR03) batteries, providing a battery life of approximately 500 hours. |
