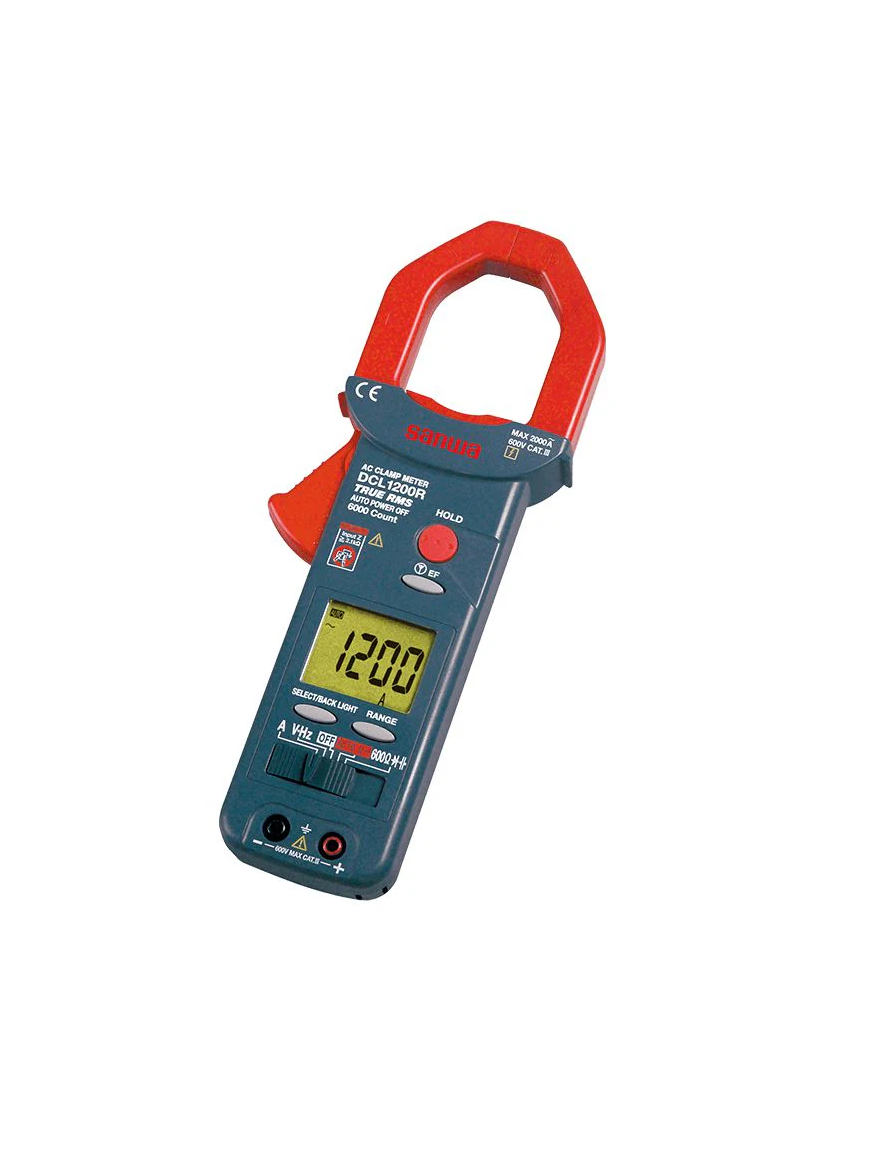

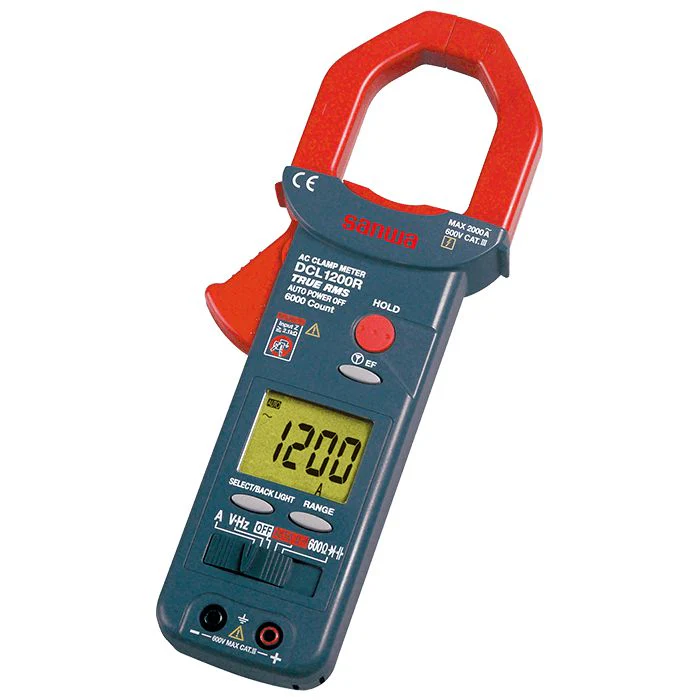

Sanwa DCL1200R Large Diameter AC Clamp Meter with Digital Multimeter Functions

Description

The Sanwa DCL1200R is a large-diameter AC clamp meter with a 42mm jaw opening and built-in digital multimeter (DMM) functions. Its True RMS capabilities allow for accurate measurements of both sinusoidal and non-sinusoidal AC waveforms.

Key features

• True RMS: Provides accurate readings for distorted AC signals, unlike average-sensing meters.
• Large jaw diameter: A 42mm clamp opening allows for non-contact current measurement on large or multiple conductors.
• High AC current capacity: Measures up to 1200A of AC current.
• Digital multimeter functions: Equipped with test leads for measuring AC/DC voltage, resistance, capacitance, and frequency.
• Safety rating: The meter is rated for IEC61010 CAT III 600V applications, suitable for low-voltage electrical equipment and power supply facilities.
• Automatic functions: Features automatic range selection for resistance and voltage, as well as an Auto Power Save function.
• Non-contact voltage detection (EF Sensing): A built-in sensor can detect AC voltages of 15V or greater without physical contact.
• User-friendly display: A large, 6000-count LCD with a backlight ensures visibility in dark environments.
• Data hold: A large, easy-to-use button allows you to freeze the reading on the display.
