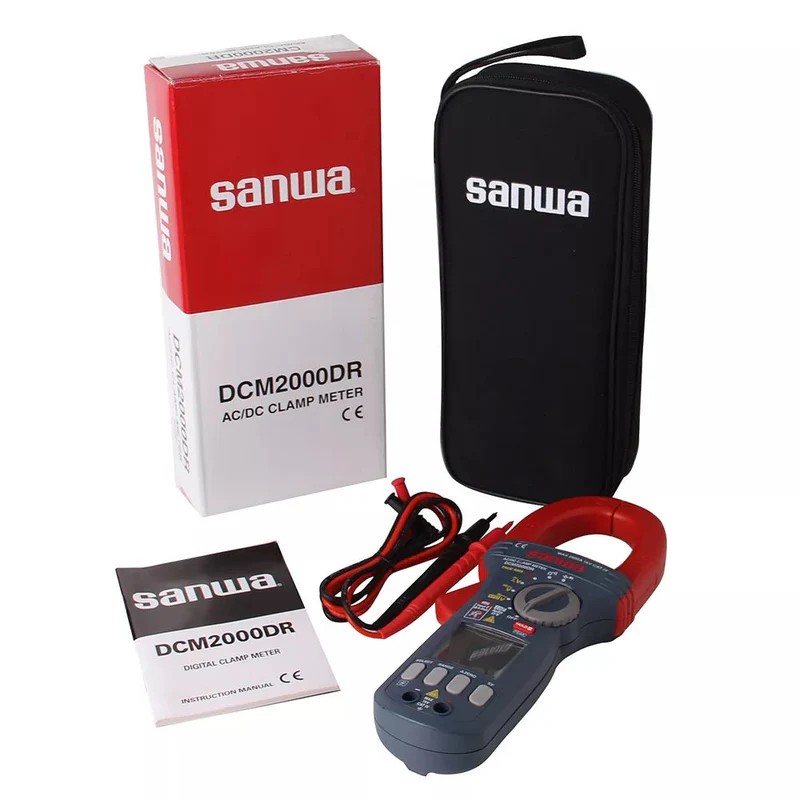

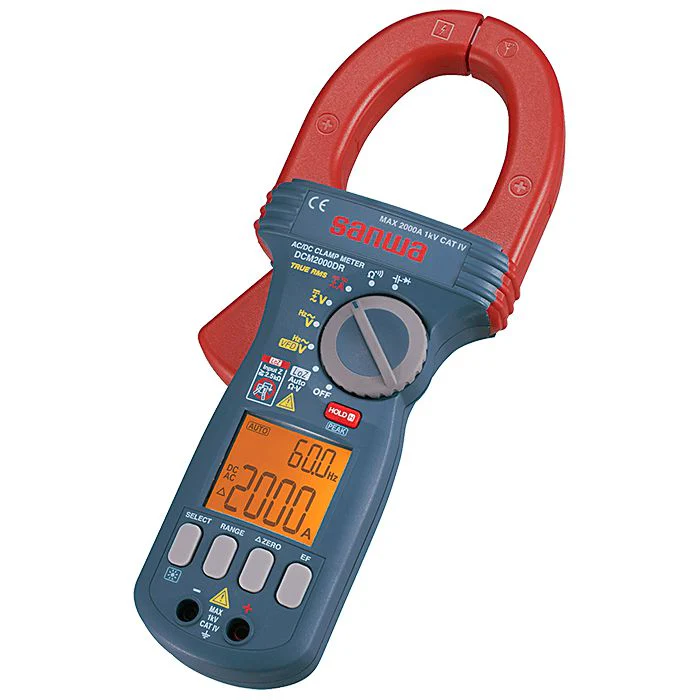

Sanwa DCM2000DR Clamp Meter AC/DC Max Current 2000A - CAT IV 1000V

Description

The Sanwa DCM2000DR is a robust, True RMS digital clamp meter capable of measuring both AC and DC current up to 2000A. It is a versatile tool for electricians and industrial technicians, as it also includes digital multimeter (DMM) functions and a high safety rating.

Key Features

• Max Current: 2000A AC/DC.
• Safety Rating: CAT IV 1000V, suitable for use in high-voltage industrial environments.
• Measurements: True RMS sensing for accurate readings on non-sinusoidal waveforms.
• Display: 6000-count dual LCD with a backlight, showing current/voltage and frequency simultaneously.
• Jaw Size: 55mm clamp diameter to accommodate large conductors.
• Electric Field (EF) Sensing: Non-contact AC voltage detection for added safety.
• VFD Measurement: A low-pass filter and Variable Frequency Drive (VFD) frequency measurement capability allow for stable readings in noisy electrical environments.
• Ghost Voltage Attenuation: A low-input impedance voltage measurement mode helps to ignore or "attenuate" ghost voltage, which can cause misleading readings.
• Peak Hold: Captures transient peak currents, such as in-rush current, with a 5-millisecond interval.
• Auto Power Save: Extends battery life by turning off the meter after 30-34 minutes of inactivity (this feature can be canceled).
• Hold Functions: Includes data hold, range hold, and a relative value function for capturing and comparing measurements.
• DMM Functions: The meter includes a full suite of multimeter functions, such as: AC/DC voltage measurement up to 1000V, Resistance (up to 40 MΩ), Capacitance (up to 2000 µF), Frequency (up to 1999 Hz), Diode test and continuity check with buzzer.
