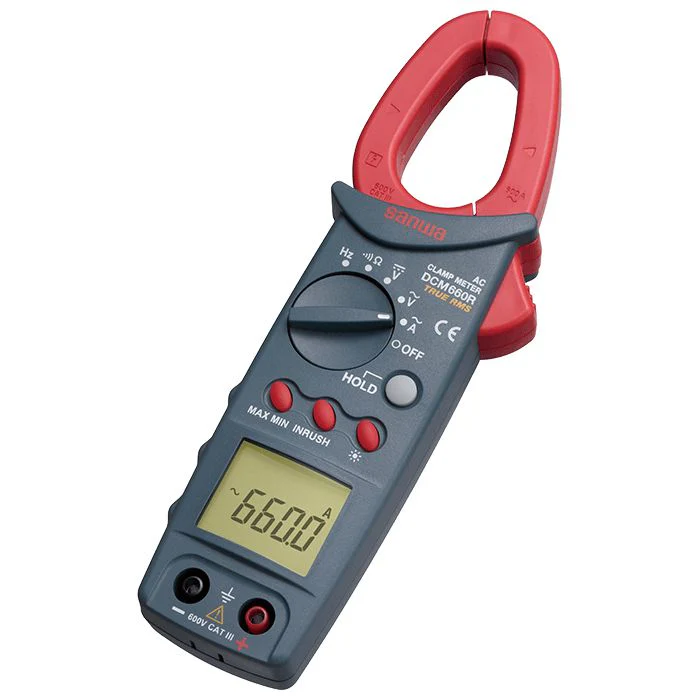

DescriptionThe Sanwa DCM660R is a True RMS clamp meter designed for electrical and HVAC professionals, combining the functionality of both a clamp meter and a digital multimeter (DMM). Its True RMS capability ensures accurate measurements for both standard and distorted electrical waveforms. |
Key FeaturesTrue RMS: This feature allows for accurate measurements on non-sinusoidal waveforms, such as those found in variable speed drives and other electronics. DMM functions: The device includes test leads for performing standard multimeter functions, such as voltage and resistance tests. Large backlit LCD: The 6600-count digital display has a backlight for easy reading in dark or poorly lit environments. Hold functions: 1. Data Hold: Freezes the current reading on the display for convenient reference. 2. Max/Min Hold: Captures and displays the maximum and minimum values detected during a measurement session. Auto Power Save: To conserve battery life, the meter automatically turns off after 15 minutes of inactivity. This feature is non-cancellable on this model. Safety rating: The DCM660R is safety compliant with the IEC61010-1 standard and rated for CAT III 600V environments. |
