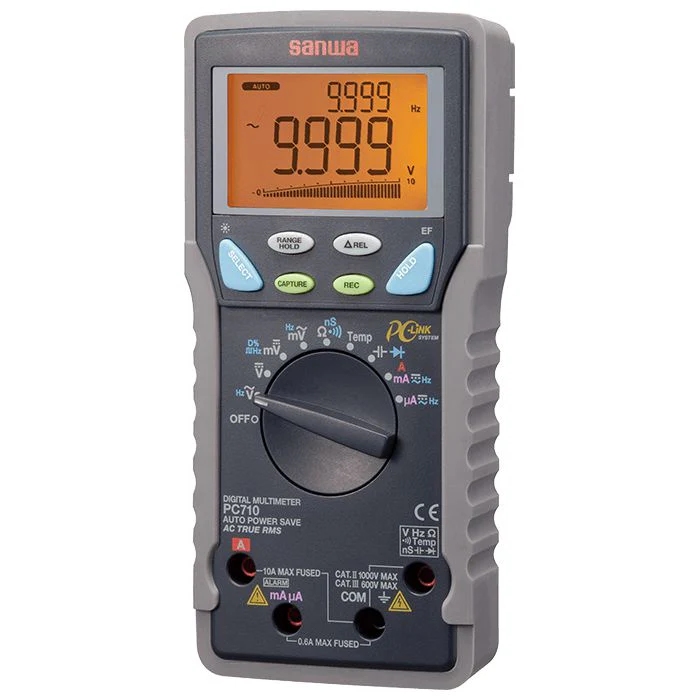

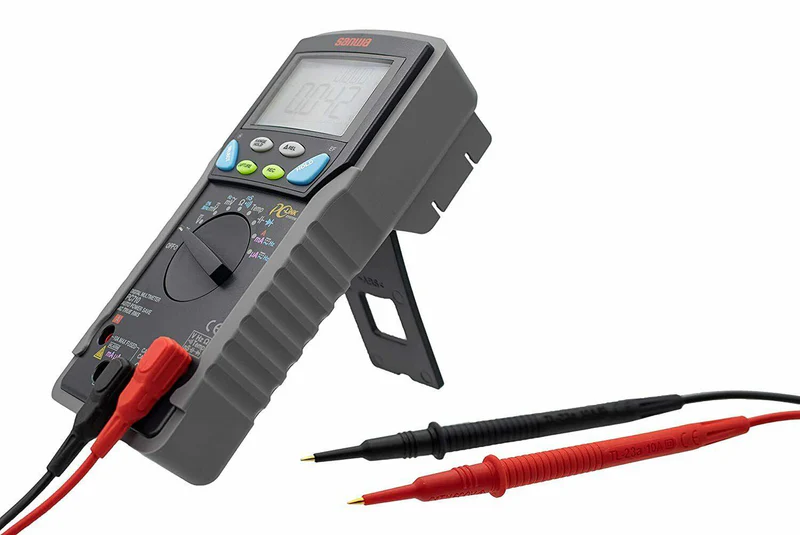

Sanwa PC710 Digital Multimeter with True RMS and Dual Display

Description

The Sanwa PC710 is a high-accuracy, handheld digital multimeter designed for low-voltage circuit analysis and general electrical work. Manufactured by Sanwa Electric Instrument Co., Ltd. in Japan, it is known for its True RMS functionality, dual display, and robust feature set.

Key Features

• High accuracy: The PC710 offers a best accuracy of 0.06% on DC voltage, making it suitable for precision measurements.
• True RMS: It features True RMS (Root Mean Square) detection, which allows for accurate measurement of non-sinusoidal AC voltage and current waveforms.
• Dual display with backlight: The multimeter can show two different measurements simultaneously. The backlight makes it easy to read in dimly lit areas.
• High count display: It provides a maximum count of 9999 digits, which offers a high degree of resolution for more precise readings.
• Electric field (EF) detection: A unique feature of the PC710 is its ability to detect the strength of an electric field without contact, a useful function for working with power lines.
• Wide measurement ranges: It can measure a wide variety of parameters, including:

               1. Voltage: Up to 1000V AC/DC.

               2. Current: Up to 10A AC/DC.

               3. Resistance: Up to 60 MΩ.

               4. Capacitance: Up to 25 mF.

               5. Frequency: Up to 50 kHz.

               6. Temperature: From -50°C to 1000°C (with optional K-type thermocouple).

• PC connectivity: With an optional optical USB interface (PC Link 7 software and KB-USB7 cable), users can log data and analyze measurements on a computer.
• Safety rating: It holds safety ratings of CAT II 1000V and CAT III 600V, providing a high level of protection.
