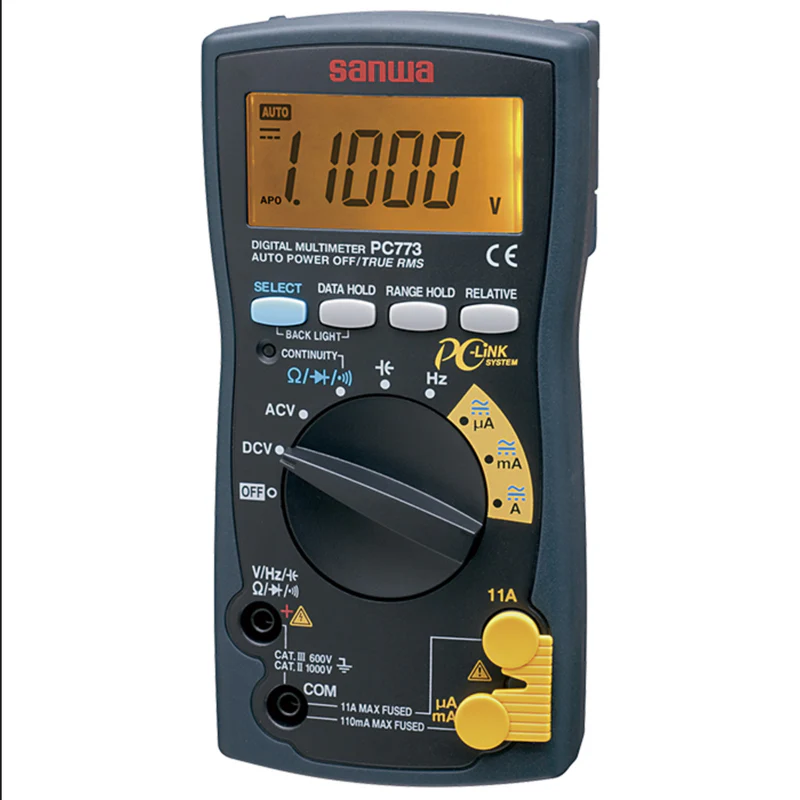

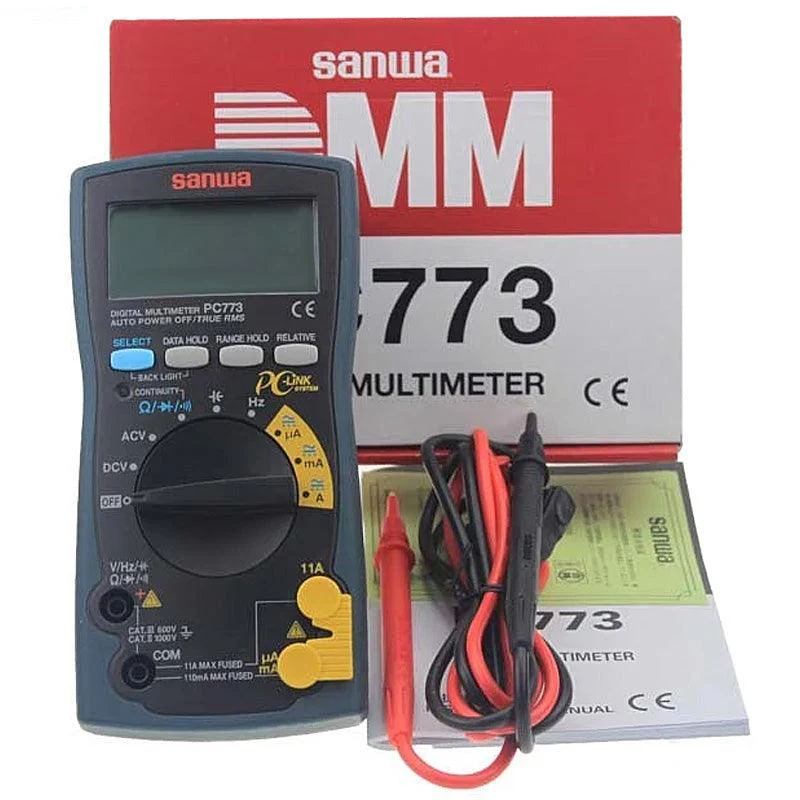

Sanwa PC773 Digital Multimeter with True RMS and PC Link

Description

The Sanwa PC773 is a digital multimeter known for its True RMS capability and optional PC connectivity. Designed for both professional and DIY use, it provides high accuracy for analyzing electrical circuits in low-voltage applications, with robust features for enhanced durability and usability.

Key Features

• 11,000-count display: Offers a high-resolution 4.5-digit LCD readout for detailed measurements, along with a high-speed bar graph.
• True RMS: Provides accurate readings for AC voltage and current, even with non-sinusoidal waveforms, making it reliable for modern electronics.
• PC Link (optional): Connects to a PC via an optional optical USB cable (KB-USB773) and PC Link7 software. This feature allows for real-time data logging, trend graphing, and easy data export to a CSV file.
• Rugged design: The body is made with a thermoplastic elastomer for high resistance against shock and drops. It also includes a tilt stand for convenience.
• Safety features: Includes large breaking capacity fuses for overcurrent protection, a safety cap for the current terminal, and is rated for IEC61010 CAT. III (600V) and CAT. II (1000V).
• Additional functionalities: Comes with other useful functions such as Data Hold, Range Hold, Relative value, Auto Power Save (which can be canceled), and an audible continuity buzzer with an LED indicator.
• Optional temperature measurement: Can measure temperature with an optional temperature probe (T-300PC) and PC Link7 software.
• Measurement functions: Measures a wide range of electrical parameters:

                1. Voltage: up to 1000V AC/DC

                2. Current: up to 11A AC/DC

                3. Resistance: up to 110MΩ

                4. Capacitance: up to 110mF

                5. Frequency: up to 1.1MHz
