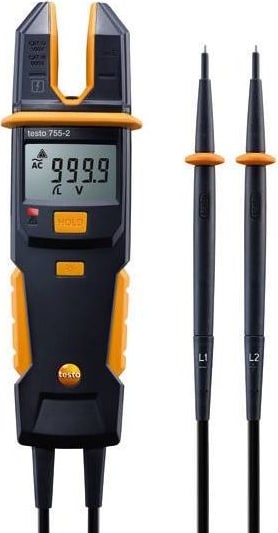

Testo 755-2 - Current Voltage Meter (200 A AC, 1000 V AC/DC) Phase Rotation Tester

Description

The Testo 755-2 (0590 7552) is an all-in-one current and voltage meter with a unique open-jaw design and automatic measurement parameter detection. This model expands upon the Testo 755-1 by including a higher voltage range of up to 1000 V AC/DC and several additional test functions, including phase rotation.

Key Features

• Automatic parameter detection: The meter automatically detects the measurement parameter (AC/DC voltage, current, resistance, or continuity) and selects the correct range, eliminating the risk of dangerous incorrect settings.
• Extended voltage range: The 755-2 can measure AC and DC voltage up to 1000 V, compared to the 600 V limit of the 755-1.
• Open-jaw current measurement: The unique design allows for fast and safe AC current measurements up to 200 A without the need to disconnect the circuit.
• Rotating magnetic field test: This function is used for phase sequence testing in three-phase systems.
• Single-pole voltage test: Provides a quick way to determine if a conductor is live.
• Integrated flashlight: A built-in torch helps illuminate dark work areas.
• Continuity and resistance testing: The device can be used for continuity and resistance tests.
• Exchangeable measuring tips: The measuring tips can be easily replaced if they become damaged.
• LCD display: The 4000-count LCD displays the measurement value.
• Safety rating: The meter is certified to DIN EN 61243-3:2010 and rated CAT IV 600V and CAT III 1000V.
• Protection class: It has an IP64 rating for protection against dust and splashing water
