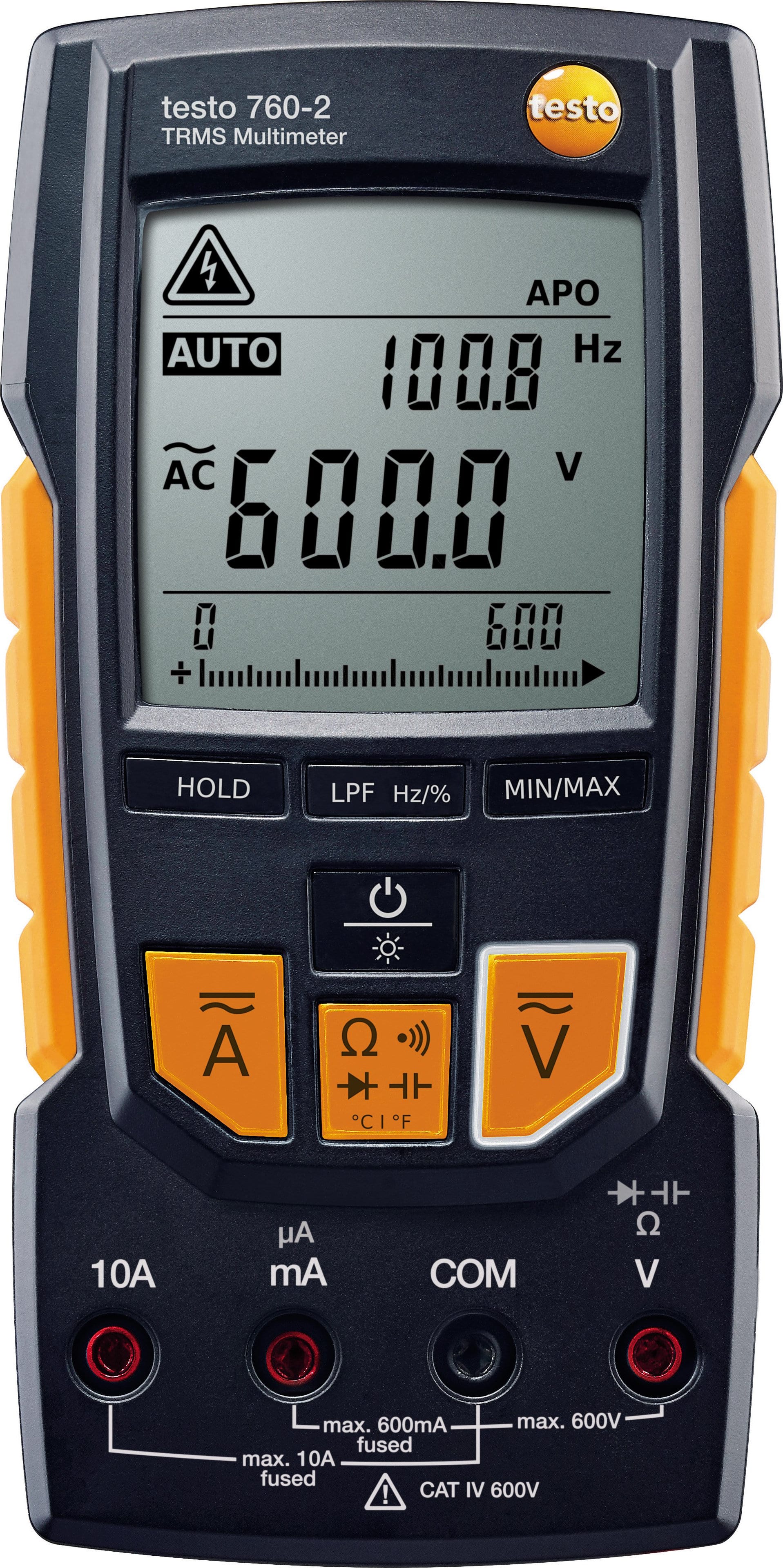

Testo 760-2 - TRMS Digital Multimeter with Type K Measurement

Description

The Testo 760-2 (0590 7602) is a True RMS digital multimeter with a suite of advanced functions for electrical, HVAC/R, and maintenance professionals. It is an upgrade to the basic 760-1 model, featuring a larger current measurement range, True RMS, a Type K temperature adapter, and a low-pass filter.

Key Features

• True RMS (TRMS) measurement: Provides accurate measurements for distorted or irregular AC voltage and current waveforms.
• Automatic parameter detection: The meter automatically detects the measurement parameter based on the test lead connections, which simplifies operation and prevents dangerous incorrect settings.
• Microampere range: Allows for the measurement of low currents, such as ionization current, which is useful in HVAC applications.
• Type K temperature adapter: Includes an adapter for connecting Type K thermocouples, enabling temperature measurements in the range of -20 to +500 °C (-4 to 932 °F).
• Low-pass filter: Achieves more accurate measurement results when working on frequency converter-controlled motors.
• Duty cycle measurement: A standard function for measuring the duty cycle of a signal.
• Function keys instead of a dial: The traditional rotary dial is replaced by illuminated function keys for simplified, one-handed operation.
• Large, backlit display: A 6,000-count, backlit LCD with an analog bar graph ensures easy readability in any lighting condition.
• Hold/Min/Max functions: Allows for capturing and displaying minimum, maximum, and held measurement readings.
• Durable and safe: Features a rugged, overmolded housing with an IP64 protection rating and a safety rating of CAT IV 600V and CAT III 1000V.
