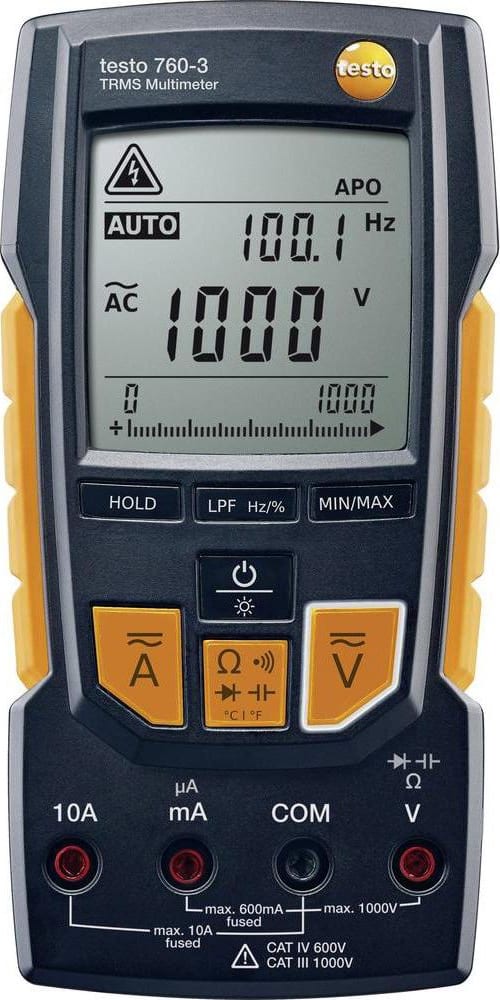

Testo 760-3 - TRMS Digital Multimeter (1000v) with Type K Measurement (Part Number 0590 7603)

Description

The Testo 760-3 (0590 7603) is the most advanced model in the Testo 760 series of digital multimeters. It is a True RMS multimeter that features a higher voltage range of up to 1000 V AC/DC, higher measurement ranges for frequency and capacitance, and a low-pass filter for accurate measurements on frequency-controlled systems. It is well-suited for a variety of industrial and professional electrical testing tasks.

Key Features

• Automatic parameter detection: Like other 760 models, the 760-3 automatically detects the measurement parameter based on the test lead connections, which prevents dangerous incorrect settings.
• True RMS (TRMS): Enables accurate measurements of AC voltage and current, even on non-linear loads and distorted waveforms.
• 1000 V range: The higher voltage range makes it suitable for demanding electrical measurements, including those in industrial applications.
• Low-pass filter: Provides more accurate measurement results when working on frequency converter-controlled motors by filtering out high-frequency noise.
• Type K temperature measurement: Includes an adapter for connecting a Type K thermocouple probe (ordered separately) to measure temperature in the range of -20 to +500 °C (-4 to 932 °F).
• High capacitance and frequency ranges: Offers larger measuring ranges for frequency (up to 60 MHz) and capacitance (up to 60,000 µF).
• μA current measurement range: Can measure microampere (\(A\)) current, which is useful for specialized applications like testing ionization current in HVAC systems.
• Safety rating: It has a high safety specification of CAT IV 600V and CAT III 1000V.
• Robust and easy to use: Features a rugged, IP64-rated housing and function keys instead of a dial for simplified, one-handed operation.
• Optional clamp adapter: An optional clamp adapter (sold separately) can be used to extend the AC/DC current measurement up to 400A.
