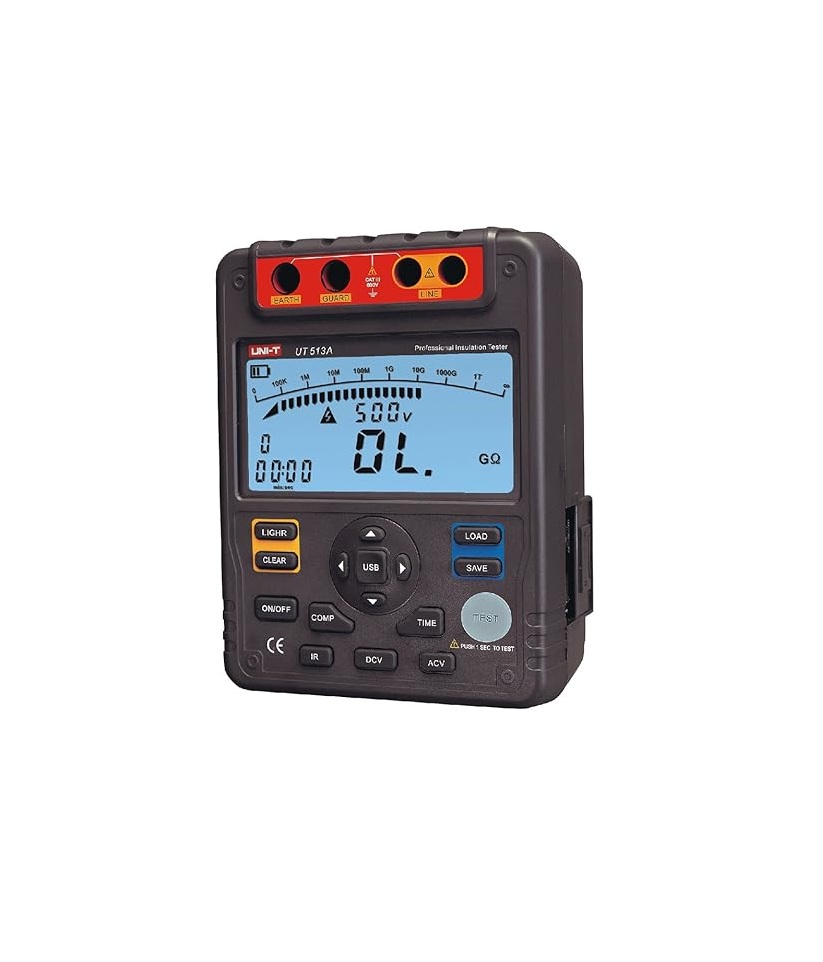

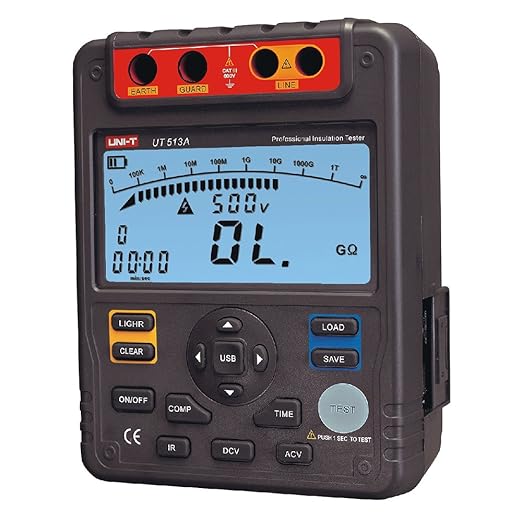

| Description: UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV. |
| Features of UT513B/UT513C 5kV Insulation Resistance Testers
Certificates: CE, UKCA ● Output voltage: Up to 5kV ● PI & DAR measurement ● Automatic leakage current display ● Stepping voltage: 10% of the range ● Comparison function ● Timer measurement ● Data storage: 999 sets ● PC software analysis: via USB cable ● Automatic discharge ● High voltage output alarm function ● Rechargeable lithium battery 14.8V, 5200mAh ● Overvoltage category: CAT IV 600V |
