Description

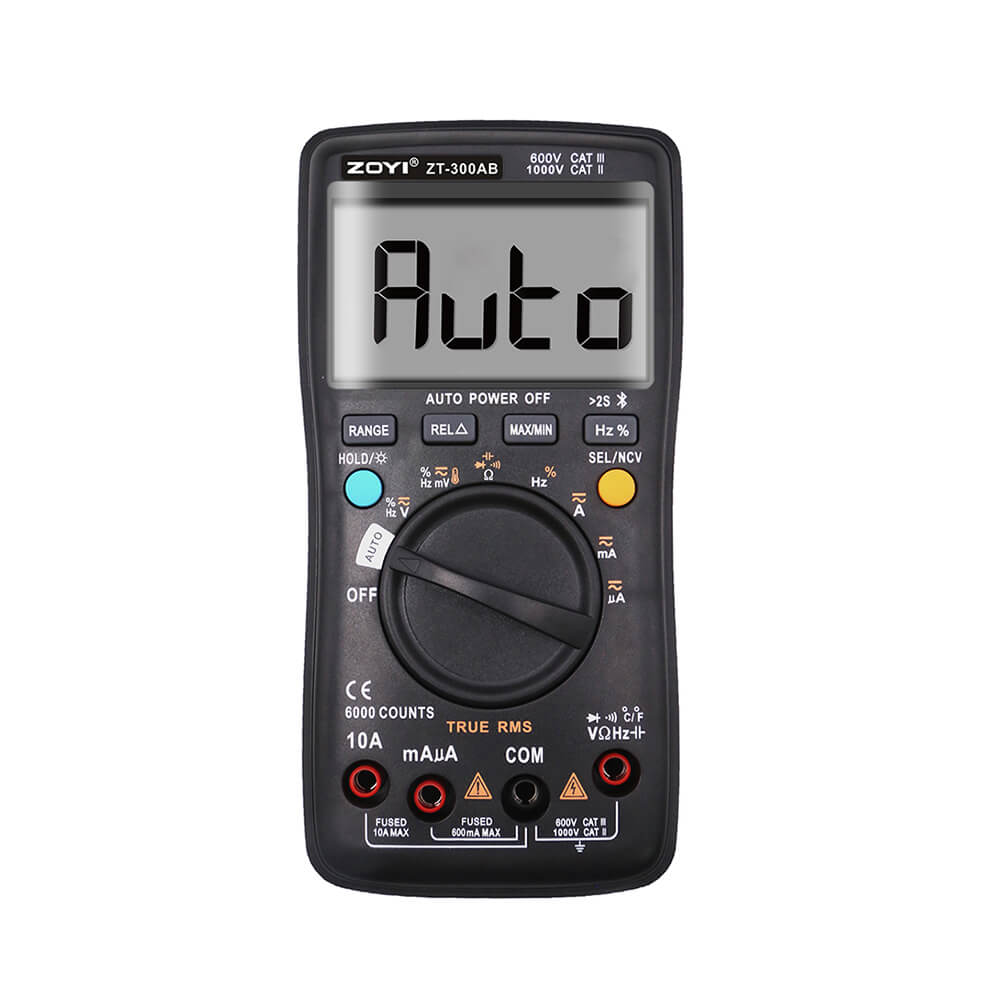

The ZOYI ZT-300AB is a True RMS digital multimeter known for its smart mode, automatic recognition of measurement type, and Bluetooth connectivity which allows for remote data logging via a smartphone app.
Key Features
- Display: It features a 6000-count LCD display with a backlight for easy reading in various lighting conditions.
- True RMS: The multimeter provides True RMS measurements, ensuring accuracy when dealing with non-linear or distorted AC signals.
- Connectivity: It includes Bluetooth functionality, allowing users to connect to a mobile app (MApp) for real-time data monitoring, logging, and graphical analysis of measurements.
- Smart Mode: In smart mode, the device automatically detects the type of measurement (voltage, resistance, continuity) and selects the appropriate range, making it user-friendly for both beginners and professionals.
- Measurements: It can measure a wide range of electrical parameters, including AC/DC Voltage (up to 1000V DC and 750V AC), AC/DC Current (up to 10A), Resistance (up to 60 MΩ), Capacitance, Frequency, Duty Cycle, and Temperature.
- Additional Functions: Other features include NCV (Non-Contact Voltage) detection, diode testing, continuity testing (beeper turns on at < 50Ω), MAX/MIN value recording, and relative measurements.
- Safety: It is designed with safety features such as a diode protection circuit, PTC, fuses (600mA/250V and 10A/250V), and is rated for CAT III 600V and CAT II 1000V safety standards.
- Portability: The multimeter is compact and lightweight, with a robust ABS plastic housing designed to withstand minor impacts.
