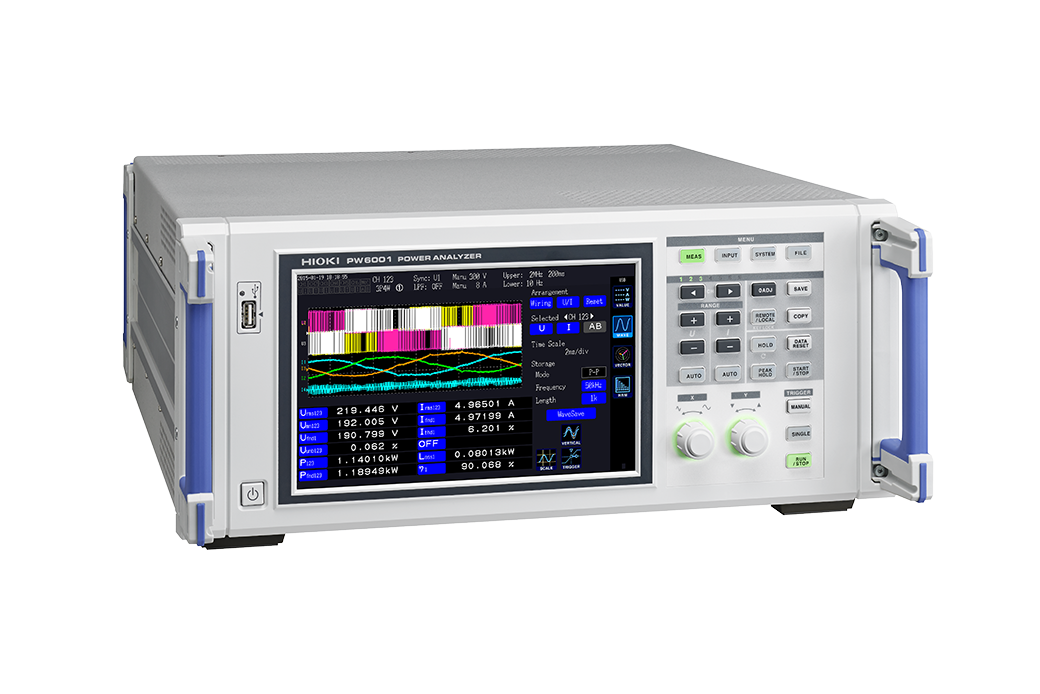

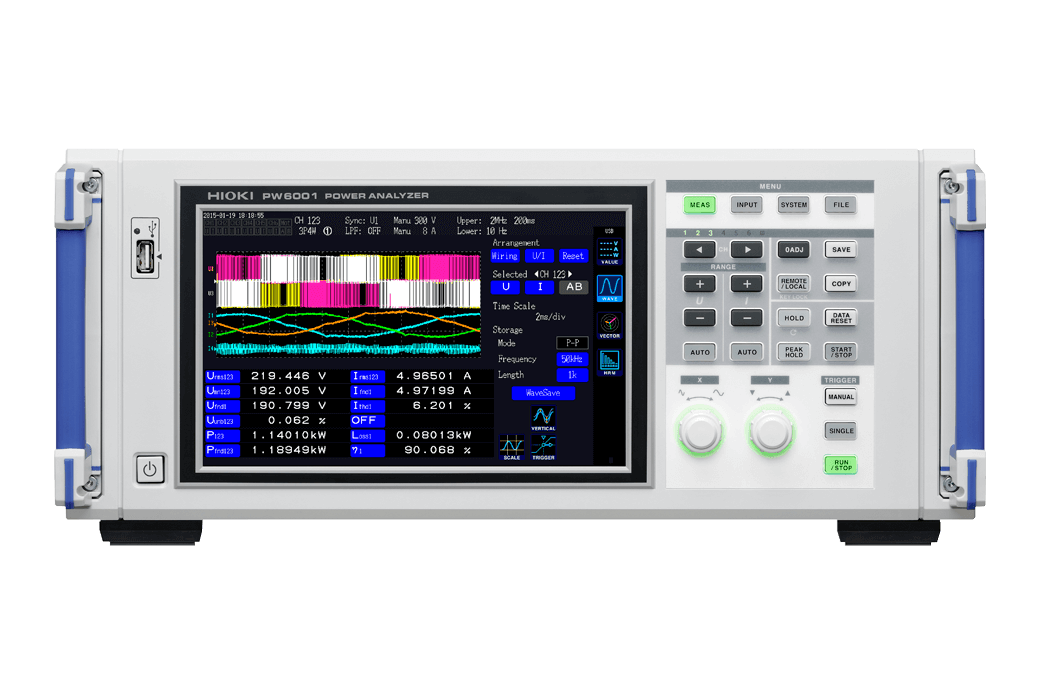

Hioki PW6001-04 High Precision Power Analyzer, 4 Channel

Description

The Hioki PW6001-04 is a high-precision, 4-channel power analyzer and is a member of the flagship PW6001 series. Its core performance features—including exceptional accuracy, a wide frequency bandwidth, and robust stability—are consistent across all models in the series. The key difference in the -04 model is its four channels for simultaneous voltage and current measurements.

Key Features

• Measurement channels: 4 channels for simultaneous voltage and current input.
• Basic power accuracy: ±0.02% for power measurements.
• Combined accuracy: ±0.07% when combined with a current sensor.
• Frequency bandwidth: DC, 0.1 Hz to 2 MHz, designed for high-speed switching devices like SiC inverters.
• Sampling rate: A high-speed sampling rate of 5 MS/s (million samples per second) and an 18-bit A/D converter (TrueHD) ensure accurate measurements of fluctuating loads.
• Data refresh rate: A fast 10 ms data refresh rate maintains maximum accuracy.
• Noise and temperature resistance: Features a solid metal shield and optical isolation, providing excellent noise immunity and stability in diverse environments.
• Waveform and motor analysis: Includes specialized triggers and analysis functions for detailed waveform and motor analysis.
• Harmonic analysis: Offers standard wideband harmonic analysis up to the 100th order, with a 1.5 MHz analysis band.
• Multi-unit synchronization: Up to two 6-channel PW6001 units can be synchronized to create a 12-channel measurement system for multi-point measurements.
