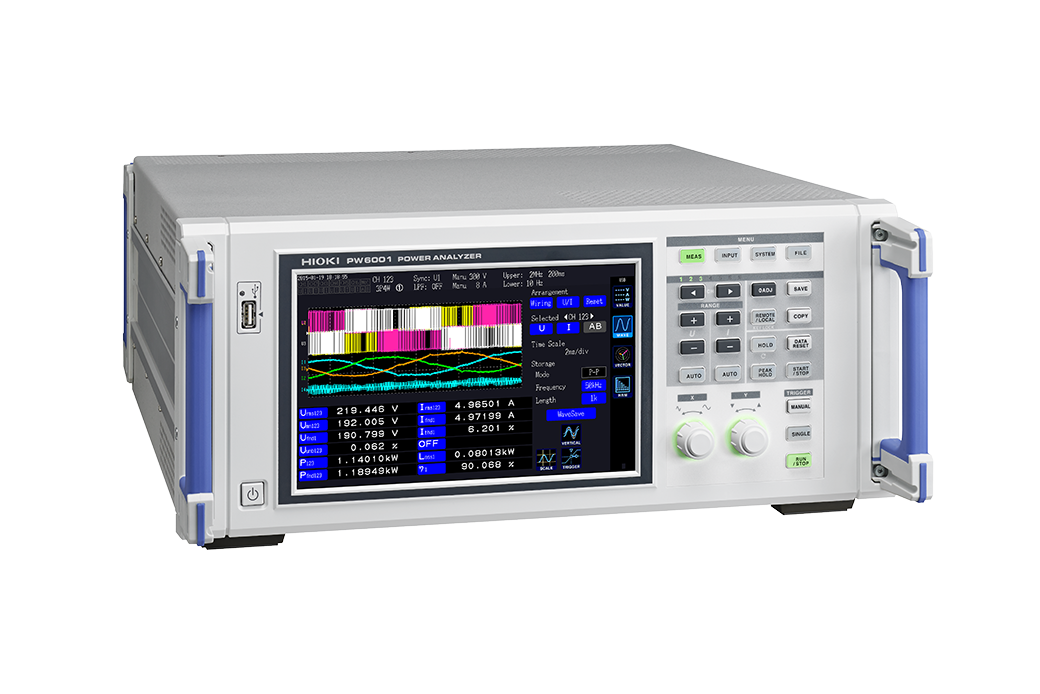

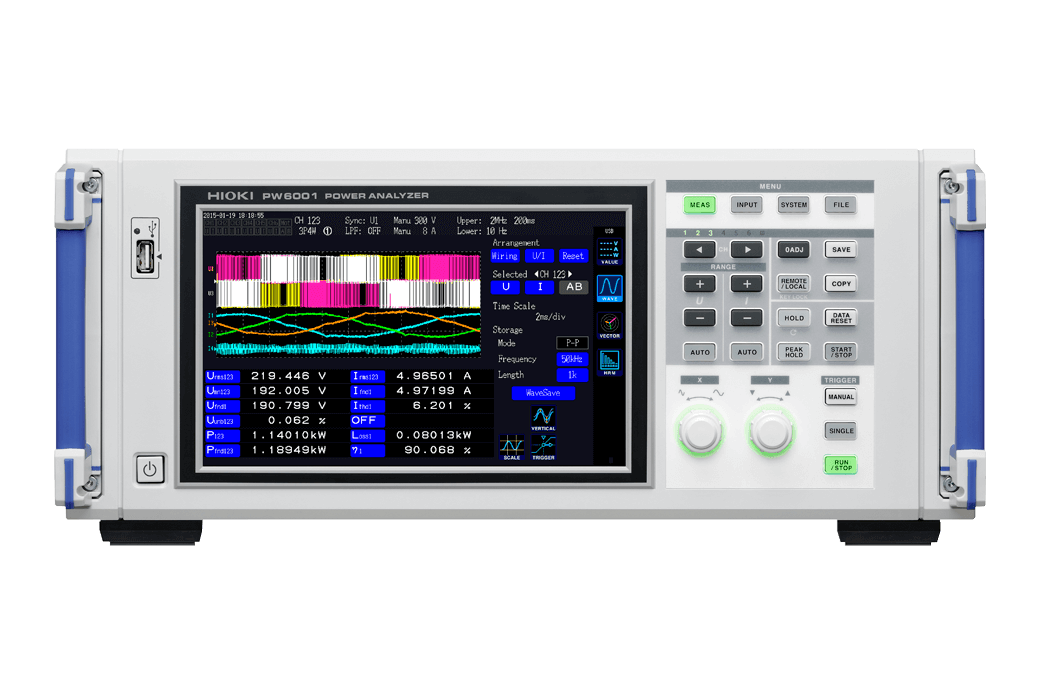

Hioki PW6001-16 High Precision Power Analyzer, 6 Channel, Motor Analysis, D/A Output

Description

The Hioki PW6001-16 is a high-precision, 6-channel power analyzer from the flagship PW6001 series. In addition to the core performance features of the series, such as world-class measurement accuracy, a wide frequency bandwidth, and excellent stability, the -16 model includes built-in motor analysis and D/A (digital-to-analog) output functionalities.

Key Features

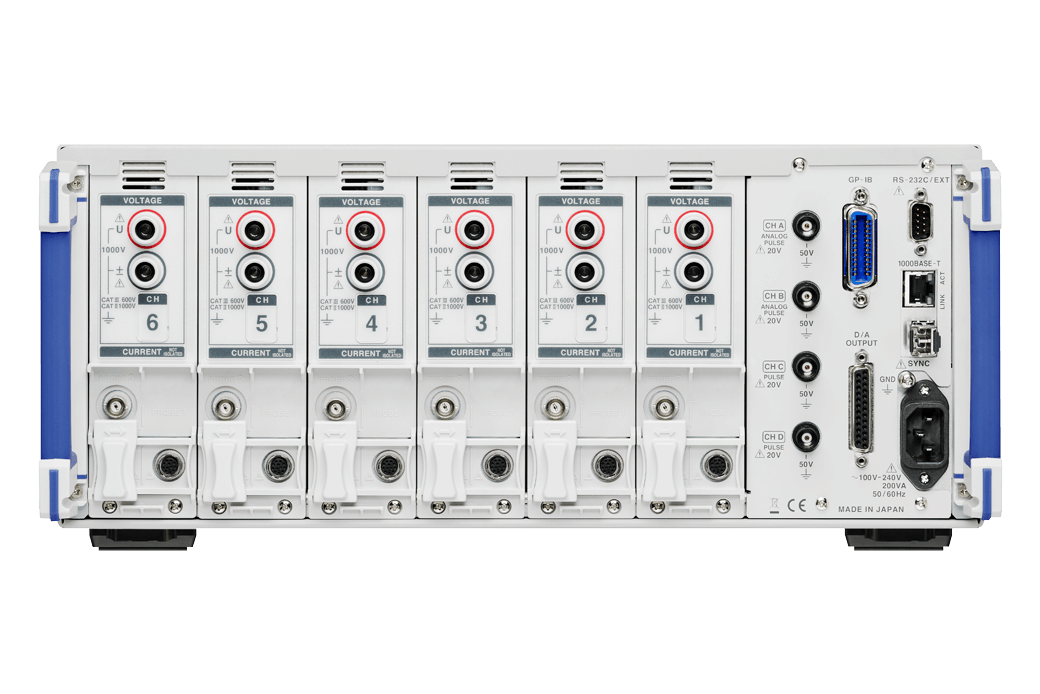

• Measurement channels: 6 independent input channels for simultaneous voltage and current measurements.
• Basic power accuracy: World-class basic power accuracy of \(\pm 0.02\%\) (instrument accuracy only).
• Combined accuracy: Offers a high combined accuracy of \(\pm 0.07\%\) even when used with a current sensor.
• Frequency bandwidth: A wide frequency range from DC, 0.1 Hz to 2 MHz, to support the testing of high-speed switching devices like silicon-carbide (SiC) inverters.
• Sampling rate: A high-speed sampling rate of 5 MS/s with an 18-bit A/D converter (TrueHD) for accurate analysis of dynamic and fluctuating loads.
• Data refresh rate: Provides a fast 10 ms data refresh while maintaining maximum accuracy.
• Noise and temperature resistance: Features a solid metal shield and optical isolation for excellent noise immunity (80 dB/100 kHz CMRR) and stable temperature characteristics (\(\pm 0.01\%/^{\circ }\text{C}\)).
• Current sensor phase shift: This exclusive function corrects for phase error introduced by current sensors, ensuring precision in high-frequency, low-power-factor applications.
• Supported line types: Compatible with various line configurations, including single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, and three-phase 4-wire.
