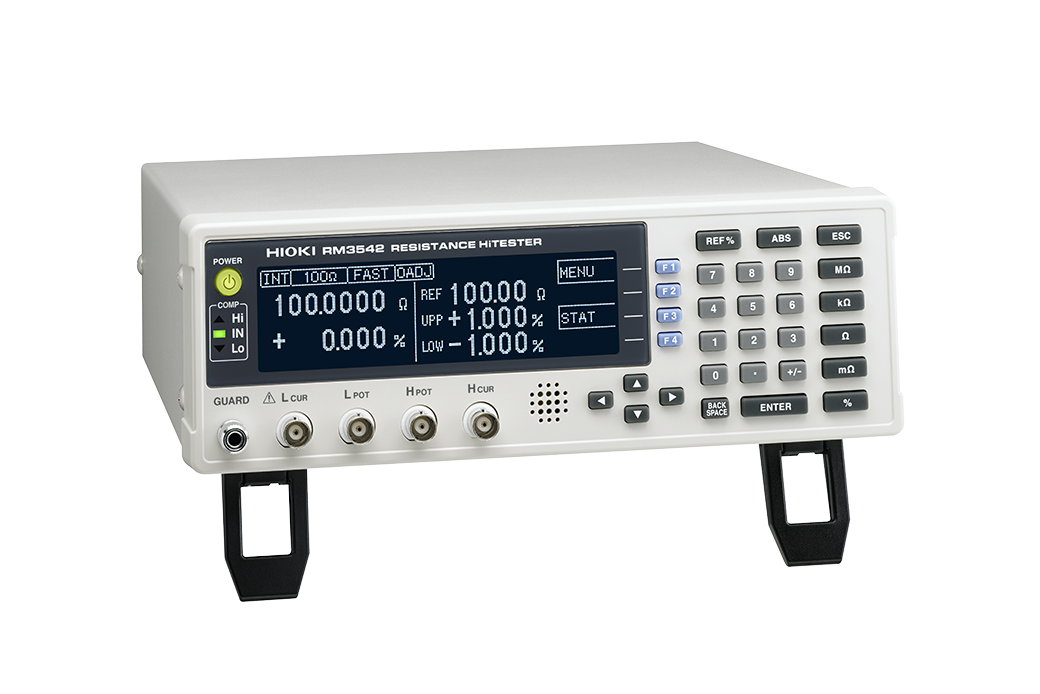

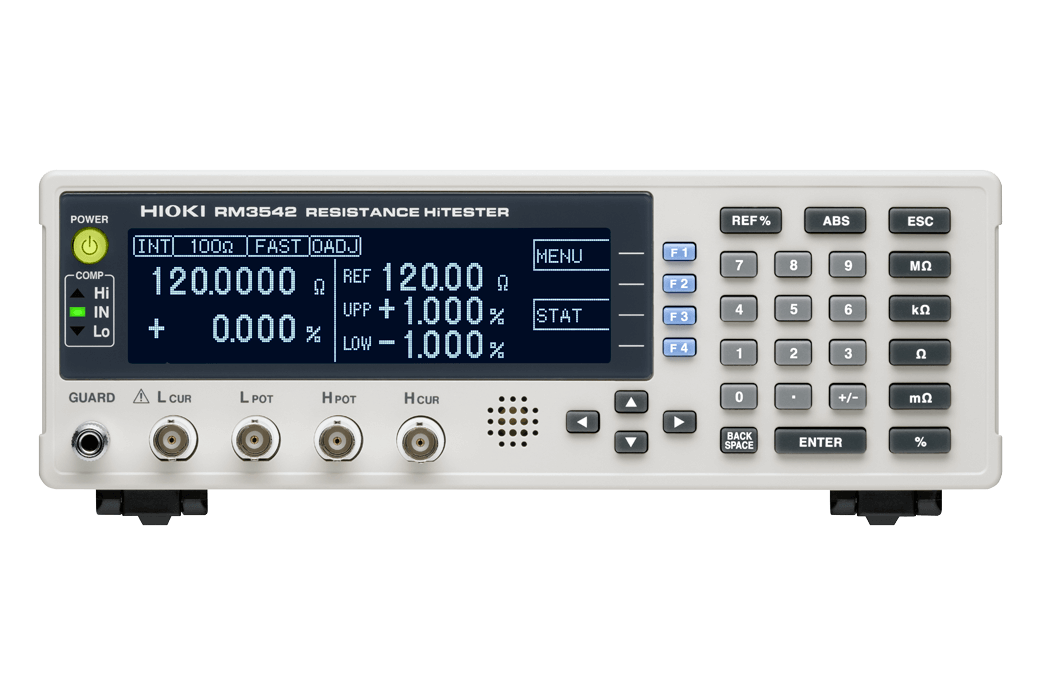

Hioki RM3542 Resistance HiTester

Description

The Hioki RM3542 Resistance HiTester is a benchtop DC resistance meter designed for high-speed, high-precision measurement of electronic components such as chip resistors, EMI components, and inductors. It is commonly used in automated systems and on production lines for sampling inspections and shipping checks.

Key Features

• High-speed measurement: The RM3542 can take measurements in as little as 0.9 ms in FAST mode (depending on the measurement range), which maximizes productivity in automated systems.
• High precision and wide range: It measures a wide range of resistance values at a high level of accuracy.
• Low-power resistance mode: A low-power mode allows for testing of components like chip inductors and EMC suppression components that must be measured with limited current.
• Reliable contact functions: Multiple checking functions, including a contact improvement function, ensure proper contact between the probes and the specimen, minimizing variations and contact errors.
• Noise immunity: The floating measurement circuit design and strong immunity to noise and voltage fluctuations ensure stable and reliable measurements even in electrically noisy environments.

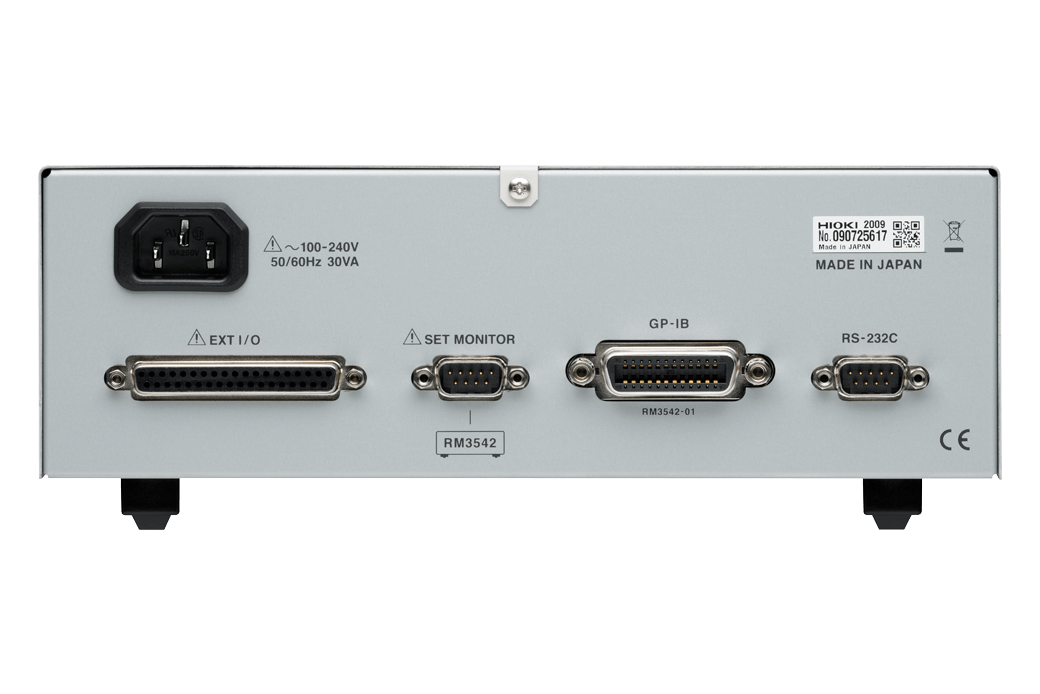

• Automated system integration: Standard interfaces such as RS-232C and EXT I/O allow for easy integration into automated test and sorting systems. The RM3542-01 model also includes a GP-IB interface for building more advanced systems.
