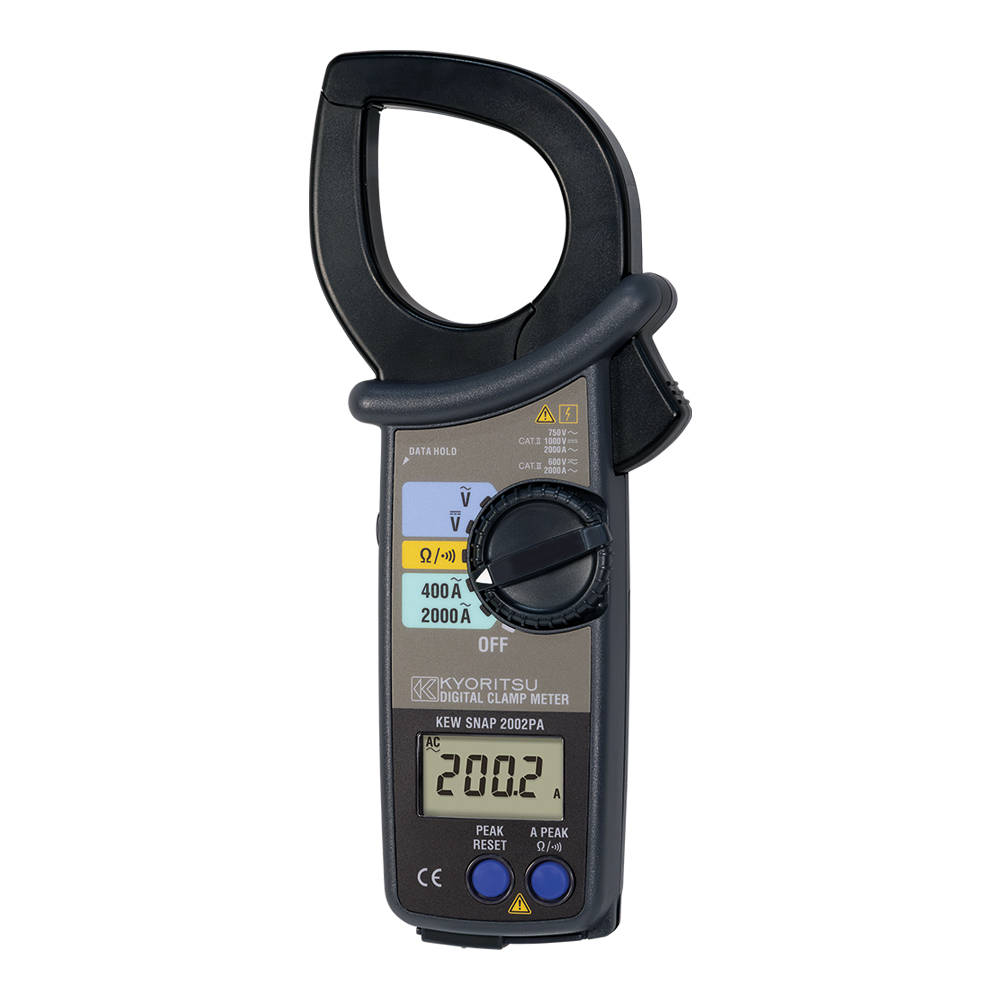

Kyoritsu 2002PA Clamp Meter, 2000A/1000V

Description

The Kyoritsu 2002PA is an AC digital clamp meter designed for measuring high currents up to 2000A in both commercial and industrial settings. It is also capable of measuring AC voltage, DC voltage, and resistance. The device's tear-drop shaped jaw makes it useful for working in tight spaces.

Key Features

• High-current measurement: Measures large AC currents, with ranges up to 2000A.
• Multifunctionality: Serves as a digital multimeter, measuring AC and DC voltage, resistance, and providing a continuity check with a beeper.
• Peak hold: Captures the highest value of a current or voltage surge, such as the inrush current when a motor starts.
• Data hold: Freezes the reading on the display for easier viewing in hard-to-read or poorly lit areas.
• Recorder output: Includes an output terminal for connection to a chart recorder, allowing for long-term monitoring of current variations.
• Auto-ranging: Automatically selects the correct range for voltage and resistance measurements.
• Safety features: Comes with a terminal cover to prevent incorrect connections and jaws fitted with a guard for improved safety. It is protected by double or reinforced insulation.
• Sleep function: Automatically powers down after a period of inactivity to conserve battery life.
