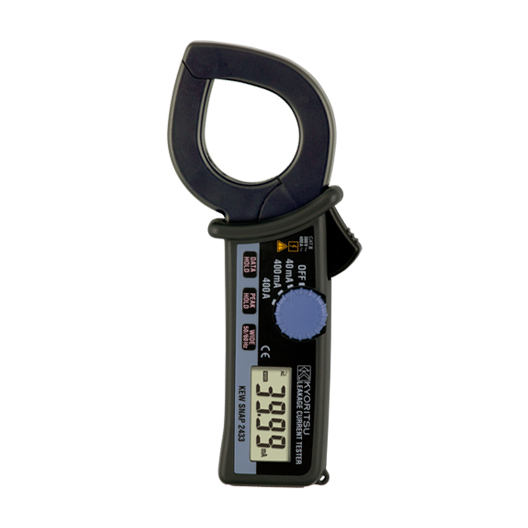

Kyoritsu 2433 Leakage Clamp Meter

Description

The Kyoritsu 2433 is a high-sensitivity AC leakage clamp meter used for measuring extremely small leakage currents as well as general AC currents. It is an upgrade to the Kyoritsu 2432, offering higher current ranges and the availability of a True RMS version (Model 2433R). This tool is crucial for electrical safety inspections and troubleshooting.

Key Features

• High resolution: It can measure with a minimum resolution of 0.01mA (10µA), allowing for the detection of tiny leakage currents.
• Wide measurement range: Offers three AC current ranges: 40mA, 400mA, and 400A, providing versatility for various applications, from precise leakage detection to general load measurement.
• Harmonic filtering: Equipped with a frequency selector switch to minimize the effect of harmonics, which can interfere with low-current measurements.
• True RMS option: The model 2433R provides True RMS readings for more accurate measurements of distorted AC waveforms.
• Peak hold function: Allows users to capture and hold the maximum measured current value on the display.
• Large jaw size: A 40mm diameter clamp jaw accommodates a variety of cable sizes.
• Resistant to external magnetic fields: Designed to be minimally affected by stray magnetic fields, which helps ensure accuracy in crowded electrical environments.
• Auto power-off: Includes a sleep function to conserve battery life.
