Description

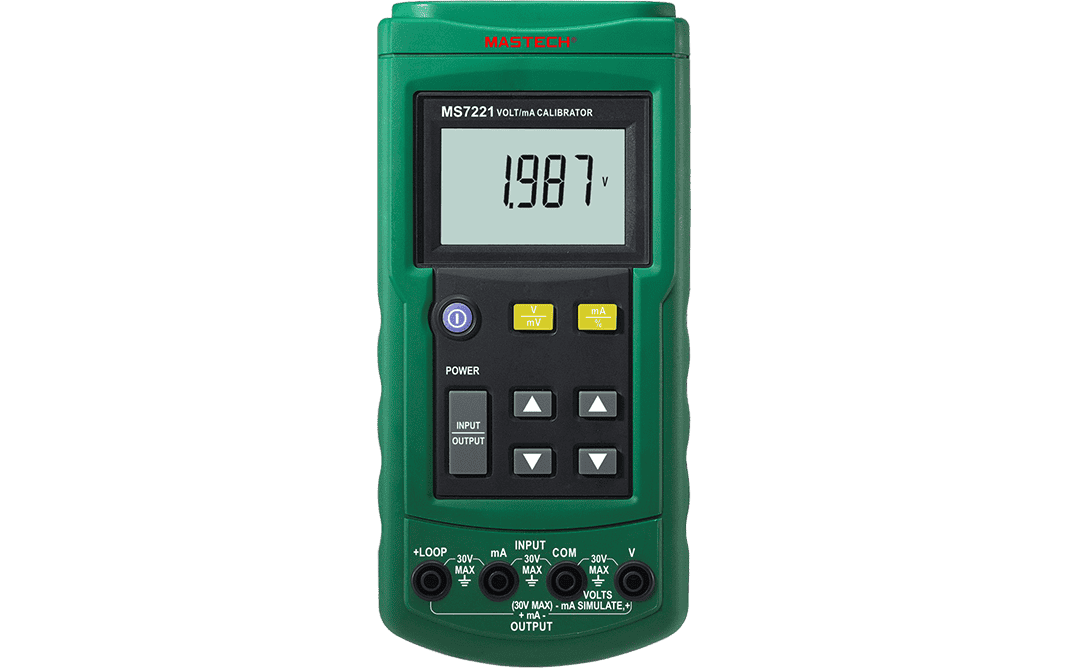

The Mastech MS7221 is a specialized process calibrator, designed for the accurate testing and calibration of voltage and current signals in industrial and laboratory settings. Unlike a standard multimeter, its primary function is to both measure and generate precise DC voltage and current signals to test and calibrate other instruments.
Key Features
- DC voltage (V) calibration: The MS7221 can both measure and source DC voltage up to 10V with high accuracy. It includes a smaller range for millivolts (mV).
- DC current (mA) calibration: It can measure and source DC current in a 0 to 24mA range, with a resolution of 0.001mA. This is ideal for calibrating 4-20mA process control loops.
- 24V loop power supply: The calibrator can simulate a 24V loop power supply while simultaneously measuring the resulting current.
- High accuracy: It provides precise measurements and outputs, with accuracy up to ±0.015% for DC mA and ±0.02% for DCV.
- Display: Features a 5-digit LCD display for clear readings.
